Soft And Transparent PVC Film 4 Roll Calender Machine With Double Throttle Line

Applications:

Four Roll Calender is Mainly used in calender line for manufacturing soft PVC products such as banner,.clothes

packing bag,wrapping film,plastic floor,PVC leatheroid,etc.

Main character

SY610-4Γ1830 type four roller calender and auxiliary equipment

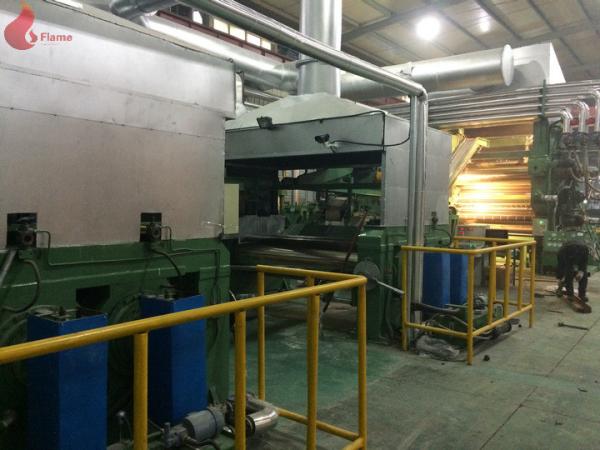

A. Calender (host machine)

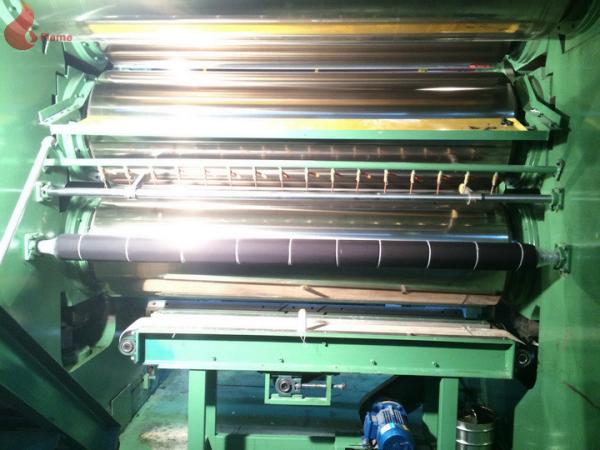

1. Calender: feed material from top and make final production from bottom, roller diameter Ф610 mm, roller surface width 1830mm, the surrounding drilling and oil heating, line speed of the calender 5-50m/min. The piece coming out from the roller of the calender has display apparatus gap of rollers distance. Right driving.

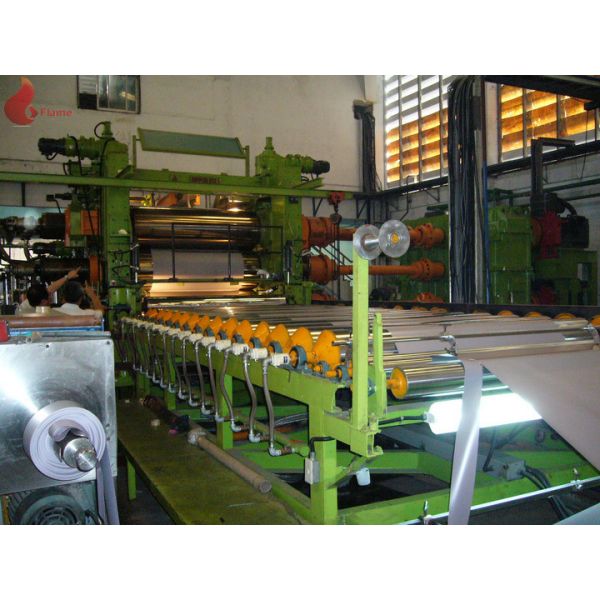

Rollers

2. 1# and 2# rolls are cold-cast alloy roller and surrounding drilling, surface hardness HS68-74 ° C, the rollers’ surface hard chromium plating fine grinding, coating thickness 0.1mm, the rollers surface roughness Ra = 0.05μ, surface comprehensive precision 0.01mm;

Material of 3# and 4# rollers is alloy forging flaw detection processing, the rolls’ surface hard chrome plating, coating thickness 0.18mm, hardness> HRC60 ° roll, surface roughness Ra = 0.01μ, surface comprehensive precision 0.05mm, roll surface temperature no less than 230 ° C, the roll surface temperature error ± 1 ° C;

1-4# rollers surface had no middle height, 1-4 # rollers all surrounding drilling, roller surface chromium plating without pinhole, the roller polished and process degassing after fine grinding.

3# and 4# rollers hard chrome plating after hot mill processing.

Bearing

3. Bearing use the Wafangdian production taper bearing, bearing pedestal use ductile iron.

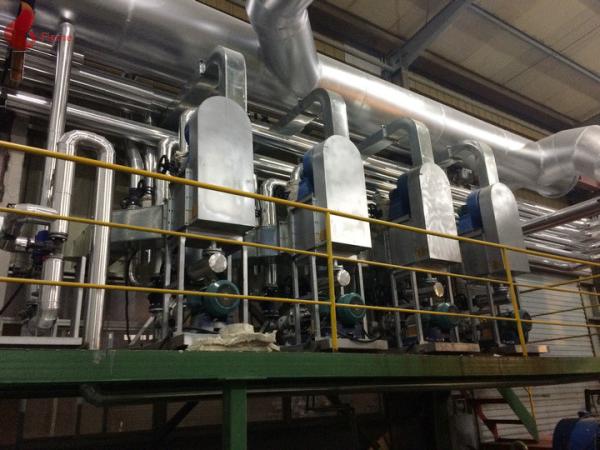

Transmission and power

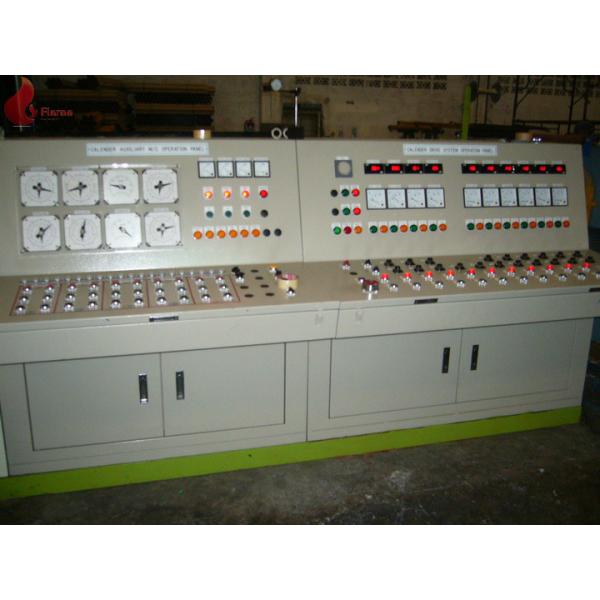

4. Drive power of 1# roller and 4# roller of Calender: 55KW (in this calender main and auxiliary equipment use AC motor), and the remaining 2# and 3# roll: 75KW power. Main and auxiliary can tune speed by linkage and also division. (Calender is equipped with blackout emergency opening device, UPS devices purchased by buyer). The motor of calender adopts AC motor speed regulation, Siemens Beide motor, Japan Yaskawa governor, other electricals adopt Shanghai Schneider.

Installing & debugging service

1. After the contract is confirmed, the seller will supply the plan of the workshop, foundation chart and the chart of rubber roller, square axes & all kinds of rollers. All operation manual will be supplied by seller, too.

2. The seller will send 3-4 technical workers to guide installation and debugging for buyer;

3. The buyer should supply the spare pipes and electric wires, and the seller just advices the specification or the model of them.
