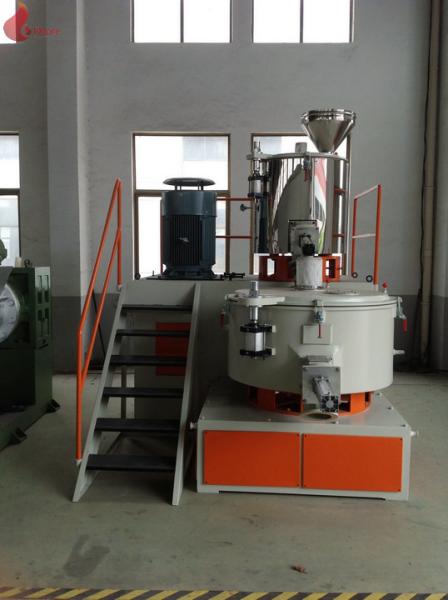

Water Cooling High Speed pvc mixer machine , 304 Stainless Vertical Mixer Unit
Water Cooling High Speed pvc mixer machine , 304 Stainless Vertical Mixer Unit
Water Cooling High Speed pvc mixer machine , 304 Stainless Vertical Mixer Unit
Water Cooling High Speed pvc mixer machine , 304 Stainless Vertical Mixer Unit
Water Cooling High Speed pvc mixer machine , 304 Stainless Vertical Mixer Unit
Water Cooling High Speed pvc mixer machine , 304 Stainless Vertical Mixer Unit
Specifications
Brand Name :
FLAME
Certification :
ISO9001：2000
Place of Origin :
CHINA
Payment Terms :
T/T
Packaging Details :
Standard Export Packing
Model Number :
SRL-ZA
MOQ :
1 set
Price :
USD 11,500~13,500/set
Supply Ability :
20 sets/60 days
Delivery Time :
30 working days
Material :
304 Stainless
Type :
verticle type
Motor :
40/55/11KW
cover lid :
cast aluminium
Description

Capacity:

500 Kg/Hour

Heating Mode:

Self - Friction

Product Name:

High Speed Mixers

Total Volume:

300L, 600L

Type:

Vertical

Cooling Method:

Water


Water Cooling High Speed Mixers , 500 Kg/Hour Vertical Mixer Unit

Description:


1. the inside barrel of Heating ＆ Cooling Mixer are made of stainless steel; the outside baiTel of heating Mixer are also in stainless steel, It can resist the corruption of DOP and there is a ￠550mm stainless steel material adding bucket up the pot cover.
2. The Heating Mixer is equipped with 3-pc – type blades : The cooling Mixer is equipped with carrying – pole type blades.
3. Electric beating device:equipped with temperature tesing device ＆ warm accuse table.
4. The Main roller is sealed in 88888
5. the digital display (made in Changzhou)
6. Siemens contractor
7. the opening ＆ material unloading of the cover adopts liquid pressure control system.
8. decompression starting device : It will decompress the electirc pressure when we start the machine ,It can protect the electric net.
9. Standard electric box 1 pc; step 1 pc , banisters bandrail 1 unit, air compressor machine 1 pc

Water Cooling High Speed pvc mixer machine , 304 Stainless Vertical Mixer UnitWater Cooling High Speed pvc mixer machine , 304 Stainless Vertical Mixer UnitWater Cooling High Speed pvc mixer machine , 304 Stainless Vertical Mixer UnitWater Cooling High Speed pvc mixer machine , 304 Stainless Vertical Mixer Unit


Applications:


SRL-ZA series mixing unit is appliable for mixing,colouring and drying of various resin such as poly,PE,PP,PVC polypropylene,poly chloride etc,and in the process of drying and volatilization of engineering plastics such as ABS PC etc before forming and processing as well as in the mixing of phenolic resin.
The unit combines heat mixing and cool mixing together.The materials after heat mixing can be gotting into cool mixer for cooling automatically,exhausts remaining gass and avoids agglomerates.
It is an ideal equipment for plastics mixing.

Specifications:

Hot Mixing Cold Mixing

Total Volume

300L 600L

Effective Volume

225L 360L

Stir Vane Quantity

3pc 1pc

Rotary Speed Of Stir Vane

430/860r/min 0~130 r/min

Power

40/55Kw 11Kw

Heat Power

Cooling Method

By Water

Consume Time

6-10 Min/Pot 10-15 Min/Pot

Air Pressure

0.39-0.49MPa

Heating Mode

Self-friction

Capacity

500 Kg/Hour

Competitive Advantage:

1. composed of high speed hot mixer,cold mixer...

2. mixing fast and even

3. easily cleaning
