Single Screw plastic pelletizing process , Planetary Roller Extruder Ф150 - 255mm

1. Introduction of Product

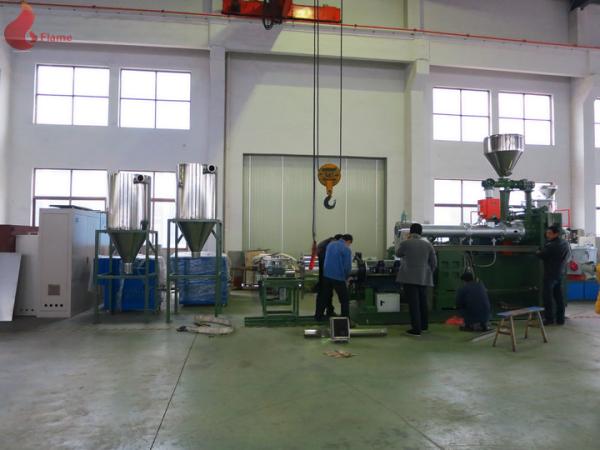

Planetary Roller Extruder And Single Screw Extruder Pelletizing Production Line

2. Quick Detail:

Planetary Roller Extruder And Single Screw Extruder Pelletizing Production Line is mainly use to produce

plastic particles,such as PVC and PET.The plasticizing effect of the equipment is good. It is convenient for cleaning ,and can effectively reduce raw material cost and power consumption.

3. Description:

4. Applications:

Usually the first compounding extruder runs at a high speed for good mixing and high output capacity.The second extruder must be a larger diameter single screw one that can run at lower screw speed .The lower screw can avoid over –heating by internal cooling system and strong heat exchange ability .The functional separation allows operator to more flexibly control the expectable material mixing process and temperature.

5. Specifications:

6. Competitive Advantage:

7. Service:

1. Oversea installation guide.

2. Oversea test running

3. Ovsersea worker training

4. Technical support

5. Spare parts supply

6. Technical operation support

7. Formula and processing support

8. Option

Planetary roller extruder unit consists of planetary extruder,one stage extruder and auxiliary machinery. The big screw which is located in the center of the planetary extruder drives several small screws. It makes the contact surface bigger and the good effective of heat exchange which can reduce the residence time of material after liquation. So that we can reduce the cost of stabilizers and lubricants. The material comes from planetary extruder will be further plastified by one stage extruder and then sized dicing,cooling and bagging.

9. Commercial Terms

1. Payment: 30% by T/T as advance payment, balance(70%) by T/T before shipment

2. Lead Time: 60 days after receiving the advance payment

3. Transportation: container, simple package ( PE film, salver)

4.Warranty period: From the day of the use of the machine in the buyer’s factory:

(1) The mechanical Parts: 12 months

(2) The electrical Parts: 6 months

5. Installations and Commissioning

(1) Up to date commissioning has been made before shipment

(2) Overseas Commissioning and charges

one or two technicians will be sent to the buyer to guide the installation and commissioning of the equipment if the customer requests.

Customers pay the charge of our technicians.

(1) Round-trip Airplane Ticket

(2) Charges of transportation, accommodation and communication

(3) The allowance for the technicians is USD 80 per day for one person.

(4) An interpreter is needed.

6. Spare parts:

Spare parts for one year are needed for the customers, and we suggest that customers should buy the spare parts. (Fittings list will be provided.)

7. English manual, Figuration drawing, and footing drawings are provided.
