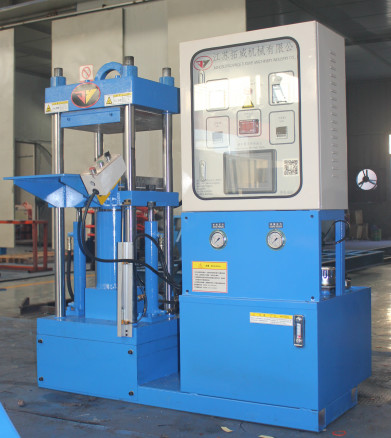

Laboratory Rubber Injection Moulding Machine Special Vulcanizing Machine Up Down In Out Die
Laboratory Rubber Injection Moulding Machine Special Vulcanizing Machine Up Down In Out Die
Laboratory Rubber Injection Moulding Machine Special Vulcanizing Machine Up Down In Out Die
Laboratory Rubber Injection Moulding Machine Special Vulcanizing Machine Up Down In Out Die
Specifications
Brand Name :
TW
Model Number :
TW-P-25T
Place of Origin :
China
Type :
25T
Clapping force（TON） :
250
Stroke（MM） :
200
Working Plate Size（MM） :
350*350
Dimeter of cyhnder（MM） :
180
Horse powet（Mpa） :
20
Heater power（KW） :
3
Machine size（MM） :
800*600*1100
Description
Type 25T
Clapping force(TON) 250
Stroke(MM) 200
Working Plate Size(MM) 350*350
Dimeter of cyhnder(MM) 180
Horse powet(Mpa) 20
Heater power(KW) 3
Gross weight(KG) 800
Machine size(MM) 800*600*1100
colour bule

Mainly used for laboratory research and development,

innovation of new products, new production technology,

the need for high temperature, high pressure rubber products pressed molding.

The machine is equipped with a high and low pressure oil pump,

which is directly driven by the motor.

The motor is started by the magnetic starter and equipped with a thermal

relay as overload protection. When the motor is overloaded or in trouble,

it will automatically stop working.

The machine has the functions of automatic filling pressure, automatic exhaust,

vulcanization digital timing, automatic mold opening and so on.

It can realize the automatic completion of a working cycle from "mould pull-in - mould

closing rising - automatic exhaust - vulcanization timing - mould opening

falling - product pushing".The machine is equipped with manual control device,

can be in the case of power down.
