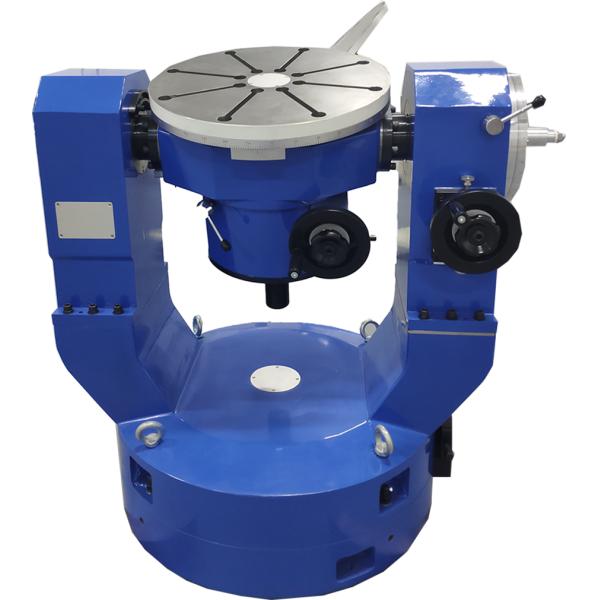

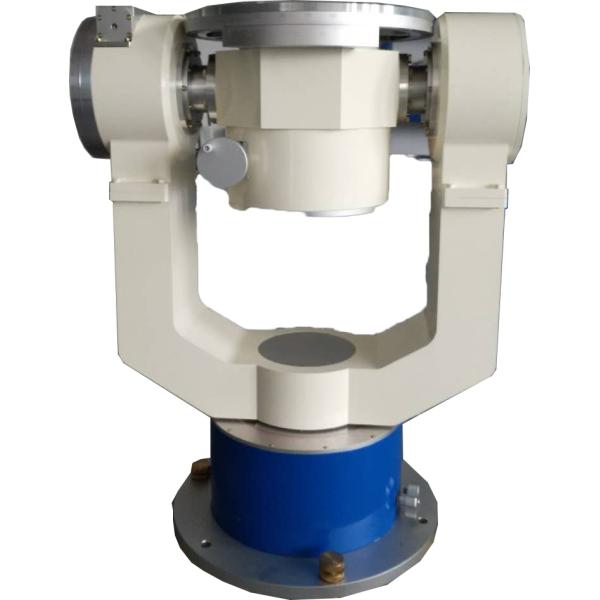

320mm Position Rotation Gyrcompass Testing Turntable RS232 / RS422 / Ethernet Intertface High accuracy
320mm Position Rotation Gyrcompass Testing Turntable RS232 / RS422 / Ethernet Intertface High accuracy
320mm Position Rotation Gyrcompass Testing Turntable RS232 / RS422 / Ethernet Intertface High accuracy
320mm Position Rotation Gyrcompass Testing Turntable RS232 / RS422 / Ethernet Intertface High accuracy
320mm Position Rotation Gyrcompass Testing Turntable RS232 / RS422 / Ethernet Intertface High accuracy
320mm Position Rotation Gyrcompass Testing Turntable RS232 / RS422 / Ethernet Intertface High accuracy
Specifications
Brand Name :
THUNDSEA
Model Number :
Special turntable
Certification :
CCS
Place of Origin :
Qingdao
MOQ :
one set
Payment Terms :
L/C, T/T
Supply Ability :
30 set per month
Delivery Time :
15 Days
Packaging Details :
carton box
Description

Special turntable RS232 / RS422 / Ethernet Intertface High accuracy

Type 320mm Position Rotation Gyrcompass Testing Turntable RS232 / RS422 / Ethernet Intertface High accuracy 320mm Position Rotation Gyrcompass Testing Turntable RS232 / RS422 / Ethernet Intertface High accuracy 320mm Position Rotation Gyrcompass Testing Turntable RS232 / RS422 / Ethernet Intertface High accuracy
Structure type Vehicular
Function Servo tracking Position, velocity, sway
Table size φ320mm
Countertop material Super hard aluminum alloy
Carrying capacity 40kg 30kg
Flatness 0.01mm
Runout 0.02mm
Swing accuracy ±2"
Angular position accuracy ±10" ±3"
Angular position range Continuous rotation
Angular acceleration ≥100°/S² 300°/S²
Speed accuracy
2 × 10-5 (360 ° average)
2 × 10-4 (10 ° average)
2 × 10-3 (1 ° average)
Position resolution 0.36"
Rate range 0.001°/S～300°/S 0.001°/S～1000°/S
Swing range 0°～±45°
Swing cycle 2s~20s
User slip ring 30 rings custom
Intertface RS232 / RS422 / Ethernet
With thermostat NO
Test object Dynamic target Gyroscope accelerometer

320mm Position Rotation Gyrcompass Testing Turntable RS232 / RS422 / Ethernet Intertface High accuracy320mm Position Rotation Gyrcompass Testing Turntable RS232 / RS422 / Ethernet Intertface High accuracy320mm Position Rotation Gyrcompass Testing Turntable RS232 / RS422 / Ethernet Intertface High accuracy
