Specifications
Brand Name :
Hanfong
Model Number :
THA400
Certification :
CE ISO1900 ROHS
Place of Origin :
CHINA GUANGZHOU
MOQ :
100pcs
Price :
$12.54 / pcs
Payment Terms :
L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability :
2000pcs / week
Delivery Time :
5 days
Packaging Details :
Inverter size:185*102*58mm Box size:270*195*70mm NW:700g GW:900g Packing size:53.5x43.5x27.5cm 20pcs/carton
Output Power: :
400W
Working Voltage: :
DC 9.5V-15.5V
Input Voltage: :
DV 12V
Output Voltage: :
AC 220V
Output Frequency: :
50Hz-60Hz
Wave Form: :
Modified Sine Wave
USB Output Voltage: :
DC 5V(800mA)
GW :
900g
Description

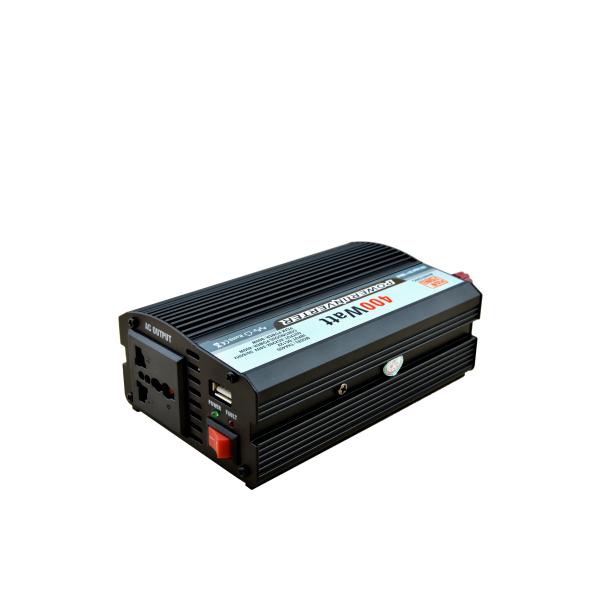

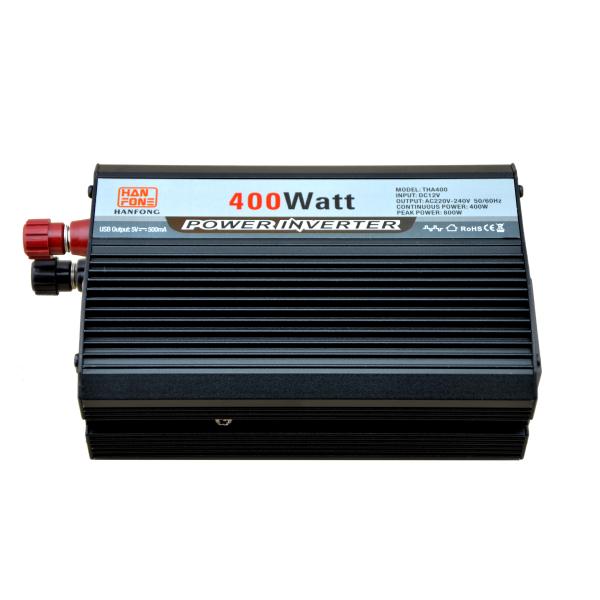

Car Inverter 400W Modified Sine Wave Inverter chang DC12v12Ah lead-acid cell Battery to 220V CE GW 900g Warranty one year

Inverter Introduce

The power inverter is ultra compact and portable and represents the new trend of high frequency converters. Whether it is connected with the cars or other 12V power supply, it can provide safe and reliable AC voltage for electrical appliances such as TV, DVD machines, etc. It comes with a variety of protection functions, protecting your converter, battery and electrical appliances effectively in overload state.

Website: www.inverters.cc Contact : leo E-mail: leo@hanfong.net Mobile/Whatsapp/Wechat: +86 18665058012

Tel: +86 20-29895484/87064489

Add: NO.21 xiushui tong road renhe town baiyun district GuangZhou

Applications:

Camera, fan, hair dryer, electric light, electric kettle, electric shaver, TV set, CD player, mobile phone, notebook, portable device, in-vehicle and etc.

Car Inverter 400W Modified Sine Wave Inverter chang DC12v12Ah lead-acid cell Battery to 220V ce gw900g Warranty oneyear

Features:

Protections: low-voltage, over voltage, over load, over temperature.

●Isolated circuit, strong impact resistance, constant voltage and stable output, low-interference.

●Advanced automatic constant circuit, prolong battery life.

●Perfect protection against battery under voltage, overload, short-circuit.

●Microprocessor control guarantees high reliability.

●Can work with inductive load such as air conditioner, motor door and so on.

●The special design of circuit and tough components protect the power inverter from being easily damaged, even when the starting power of that equipment is more than 3 times of that of the inverter.

●Having grounding devices to improve safety and excellent component to lower interference; inner fan is intelligent and will not work until the wattage reaches 1/3 of inverter.

●With 100% full power, efficiency reaching up to 85%.

●Isolated output.

●Soft start.

●USB charging port +5VDC, 500mA.

Car Inverter 400W Modified Sine Wave Inverter chang DC12v12Ah lead-acid cell Battery to 220V ce gw900g Warranty oneyearCar Inverter 400W Modified Sine Wave Inverter chang DC12v12Ah lead-acid cell Battery to 220V ce gw900g Warranty oneyear

THA400 Specification

Model THA400 THB400 THC400
Input Voltage DC 12V DC 24V DC 48V
Working Voltage DC 9.5V-15.5V DC 20-30V DC 40-60V
Input Current 33A 16A 8.3A
Conversion Efficiency >85%
Continuous Power 400W
Peak Power 800W
Output Voltage AC 100V-120V/210-240V
Output Current 3.6A/1.8A
Output Frequency 50Hz-60Hz
Wave Form Modified Sine Wave
USB Output Voltage DC 5V(800mA)
Thermal Protection ≥70℃
Operating Temperature 0℃~40℃
Cooling By Intelligent Fan
Under Voltage 10±1V 20±1 40±1
Over Voltage 15±1V 30±1 60±1
Protections Undervoltage: LED red light, buzzer alarm, restart recovery
Overvoltage: LED red light, restart recovery
Overload,high temperature: LED red light, restart recovery
Reverse connect: Blown fuse
Net Weight 700g
Gross Weight 900g
Size 185*102*58mm
Carton 535*435*310mm 20Pieces/Carton

Car Inverter 400W Modified Sine Wave Inverter chang DC12v12Ah lead-acid cell Battery to 220V ce gw900g Warranty oneyear

Car Inverter 400W Modified Sine Wave Inverter chang DC12v12Ah lead-acid cell Battery to 220V ce gw900g Warranty oneyear

Website: www.inverters.cc Contact : leo E-mail: leo@hanfong.net Mobile/Whatsapp/Wechat: +86 18665058012
Tel: +86 20-29895484/87064489 Add: NO.21 xiushui tong road renhe town baiyun district GuangZhou Skype: leo7058
