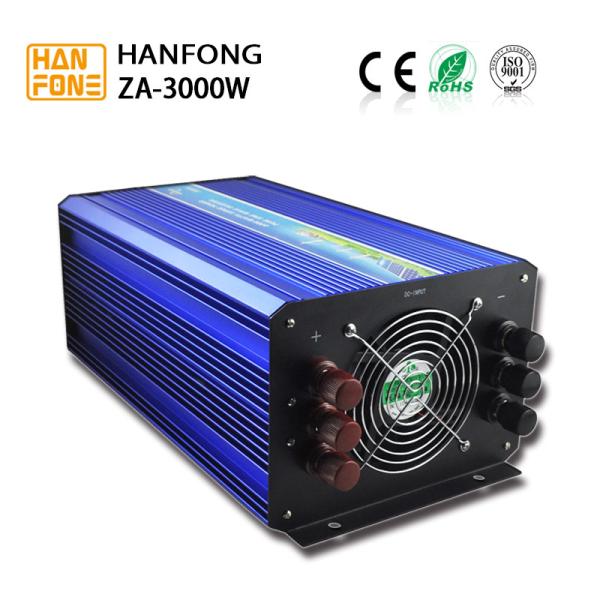

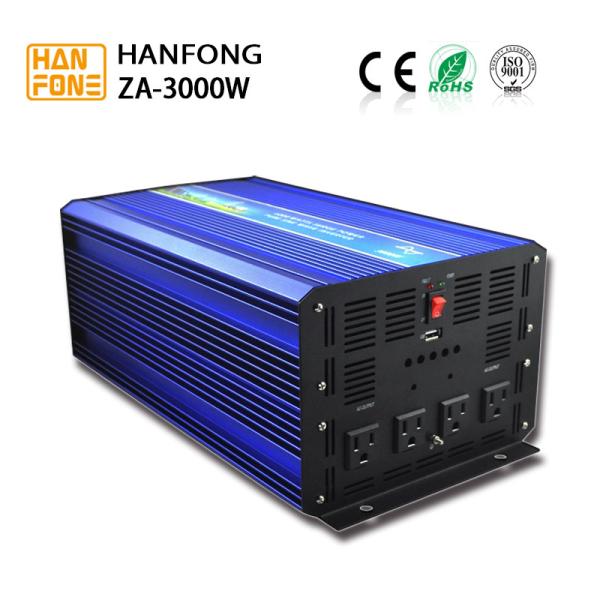

Pure Sine Wave Solar Power Inverter 3000w DC 12V 24V 48V 96V 110V to AC 110V 220V for Solar System home solar energy
Pure Sine Wave Solar Power Inverter 3000w DC 12V 24V 48V 96V 110V to AC 110V 220V for Solar System home solar energy
Pure Sine Wave Solar Power Inverter 3000w DC 12V 24V 48V 96V 110V to AC 110V 220V for Solar System home solar energy
Pure Sine Wave Solar Power Inverter 3000w DC 12V 24V 48V 96V 110V to AC 110V 220V for Solar System home solar energy
Specifications
Brand Name :
Hanfong
Model Number :
ZA3000
Certification :
ISO CE ROHS
Place of Origin :
China
MOQ :
10pcs
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1000pcs/week
voltage :
100/110/120VAC or 220/230/240 VAC
voltage range :
10-16VDC or 20-33VDC or 40-63VDC or 90-135VDC
no-load current :
< 2A
efficiency :
90%
DC connection :
Cables With Clips or Car Adaptor
power :
3000w
Description
Pure Sine Wave Solar Power Inverter 3000w DC 12V 24V 48V 96V 110V to AC 110V 220V for Solar System home solar energy

3000w inverter with charger 220v 50hz 110v 60hz converter with LED display

1) Featured with high reliability and low failure rate by using the advanced Double-CPU single chip intellectual control technology.
2) Pure sine wave output.
3) Small, light and artistic, benefited from adopting the SMD pastern technology.
4) Cooling fan is intellectual controlled, and its working status is controlled by CPU, which mostly increased its service life and helps to save the power consumption: improve work efficiency and lower the working noise.
5) With complete protection:overload protection, internal over-temperature protection, output short- circuit protection, input under-voltage protection,input over-voltage protection,etc, improving the reliability of the products greatly.

Applicable for

3000w inverter with charger 220v 50hz 110v 60hz converter with LED display

1) industrial intellectual control system.
2) small sized emergency power supply system.

Technical parameter
Model ZA3000
Input DC voltage 12V or 24V or 48V or 110V
Voltage range 10-16VDC or 20-33VDC or 40-63VDC or 90-135VDC
No load current draw < 2A
Efficiency > 88%
DC connection Cables With Clips or Car Adaptor
Output AC voltage 100/110/120VAC or 220/230/240 VAC
Continuous power 3000W
Surge power 6000W
Waveform Pure sine wave
Frequency 50Hz or 60Hz
AC regulation 3%
Protection Low voltage alarm 10.5DC±0.5V or 21DC±1V or 42VDC±1V or 95VDC±3V
Low voltage shut down 10DC±0.5V or 20DC±1V or 40VDC±1V or 90VDC±3V
Short circuit Shut off output automatically
Over load Shut off output
Over voltage shut down 16V or 33V or 63V or 135V
Over thermal Shut off output automatically
Environment Working temperature Between -10℃ and +50℃
Working humidity 20%～90%RH
Storage temperature Between -30℃ and +70℃
Package Machine size(cm) 42.5*21.7*15.3
Packing size(cm) 51.5*30*23
Net weight(kg) 9.75
Gross weight(kg) 11.8
Packing mode Carton packaging
Other Start Soft start
Cooling ways Intelligent cooling fan
Pure Sine Wave Solar Power Inverter 3000w DC 12V 24V 48V 96V 110V to AC 110V 220V for Solar System home solar energy

Pure Sine Wave Solar Power Inverter 3000w DC 12V 24V 48V 96V 110V to AC 110V 220V for Solar System home solar energy

Pure Sine Wave Solar Power Inverter 3000w DC 12V 24V 48V 96V 110V to AC 110V 220V for Solar System home solar energyPure Sine Wave Solar Power Inverter 3000w DC 12V 24V 48V 96V 110V to AC 110V 220V for Solar System home solar energy
