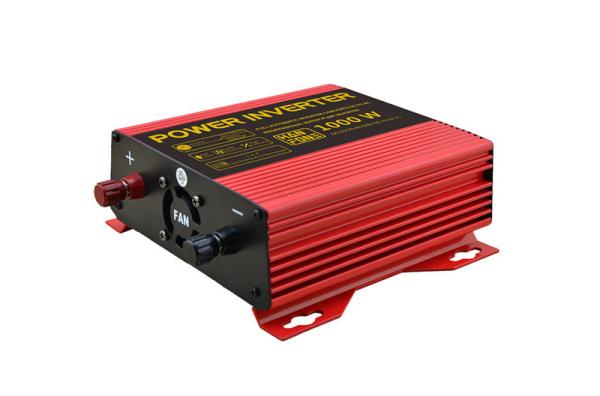

Lead-acid Cell 12v 200Ah with Modified Sine Wave Inverters 12dv 220dc Solar inverte 1000W change power Field Cooking
TP Series Advantages:
1. Constant voltage inverter with stable output: whether the battery voltage is too low or too high, the inverter output voltage can keep in the range of 10%, till the inverter cut off then stop working and alarm prompt;
2. Full load with stable working, temperature won't exceed 50°C: when inverter with full load, the body won't exceed 50°C, lengthen inverter's lifetime;
3. Isolating circuit, high Impact resistance: at startup inductive load current is 3-4 times of resistance load, great impact on the inverter, and TP series have the stability of the circuit design and super protective CPU control, when load short circuit, or leakage to stop working immediately, avoid burning machine;
4. Grounding line protection device: the inverter with grounding device, to improve the security of use;
5. Low interference: avoid the use of high-end precision instruments produced when with interference phenomenon;
6. Temperature control fan without noise, in full load when the environment temperature is not more than 26 ℃, fan doesn't start, no noise no fever and normal use.
Applications:
Camera, fan, hair dryer, electric light, electric kettle, electric shaver, TV set, CD player, mobile phone, notebook, portable device, in-vehicle and etc.
Specifications:
Model | TP1000 |
Input Voltage | DC 12V |
Working Voltage | DC 9.5V-15.5V |
Input Current | 50A |
Conversion Efficiency | ≥80% |
Continuous Output Power | 600W |
Peak Power | 1200W |
Output Voltage | AC 220V |
Output Frequency | 50Hz-60Hz |
Output Current | 2.7A |
Output Waveform | Modified Sine Wave |
Temperature Protection | ≥50℃ |
Operating Temperature | 0℃~40℃ |
Cooling Way | Temperature-controlled fan |
With Buzzer Warning | Yes |
Fuse | 80A |
Low Voltage Shutdown | 10±1V |
Over Voltage Shutdown | 15±1V |
Protections | Under/over voltage: LED red light on, automatic recovery |
Overload: LED red light on, automatic recovery | |
Over temperature: LED red light on, manual recovery | |
Short circuit: LED red light on, manual recovery | |
Input polarity reverse: fuse burn-out | |
Net Weight | 1.18KG |
Gross Weight | 1.6KG |
Inverter Size(L*W*H) | 195*171*68mm |
Packing Size(L*W*H) | 293*205*110mm |
Carton Size(L*W*H) | 565*300*430mm |
