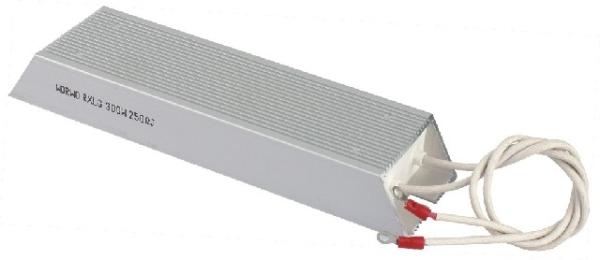

AC Drive VFD Spare Parts Aluminum Encased Wire Wound VFD Braking Resistor
AC Drive VFD Spare Parts Aluminum Encased Wire Wound VFD Braking Resistor
AC Drive VFD Spare Parts Aluminum Encased Wire Wound VFD Braking Resistor
AC Drive VFD Spare Parts Aluminum Encased Wire Wound VFD Braking Resistor
Specifications
Brand Name :
CHIFON
Model Number :
RXLG 40KW
Certification :
CE ISO SGS
Place of Origin :
CHINA
MOQ :
10pcs
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
10000pcs per month
Delivery Time :
2-3days for sample, 7-10days for bulk order
Packaging Details :
Carton
Resistance range :
1R-1KR
Size :
95*66*40*20mm
Material :
Aluminum encased
Power :
100w
Warranty time :
12months
Resistance Tolerance :
±0.1%,± 0.5%,± 1%,± 5%,± 10%
Application :
Braking
Color :
Silver
Description

40KW Aluminum Power Resistors Aluminum Housed Wirewound High Power Resistors

►Product Strength

1. Aluminum crust surface with good performance in heat radiation, suitable for cooling plate
installation, can be used in an atrocious environment.
2. Small size, high power load.

3. High insulating capacity, encapsulation by non-flame inorganic Material, good performance in vibration.

4. Multi connection form will be easy to fix.
5. Widely used in Power supply, Transducer, Elevator, Arena audio, and high requirement equipment Industry.
6.Resistance tolerance: ±1%,±2%,±5%,±10%.

AC Drive VFD Spare Parts Aluminum Encased Wire Wound VFD Braking Resistor

►Testing methods and performance

Test items Test methods Requirements
Insulation voltage imposed 2000vac on the house and core for one minute No arcing and insulation breakdown phenomenon
solderability >= 95% 235+5℃, 2+0.5S
Terminal tensile strength force 45N around the direction of the terminal vertically for 10s no significant damage and mark clearly
Short time overload Five times the rated power voltage imposed on the terminal for 5s no mechanical damage
Vibration Change the vibration from 10Hz to 55Hz then to 10Hz at 1m, three mutually perpendicular directions each for 2h, and the amplitude should be 1.5mm no mechanical damage
Voltage life the imposition of the rated voltage of the mains power supply 1000h, 1.5h pass, while 0.5h off, lasted for 500h. no significant damage and mark clearly
Temperature tested the resistance under 20 ℃ as R1, then tested under 200℃ as R2. Then calculated according to the following formula a=(R) ±260ppm/℃
steady damp-heat put it into a 40℃+-2℃, incubator with 90%-95% moisture and maintained for 30-50 minutes no significant damage and mark clearly, insulation resistance shall be more than 1GΩ
