Lan RJ45 PORT RTU Rs485 Ethernet Gateway 4 Channel Data Transfer
Lan RJ45 PORT RTU Rs485 Ethernet Gateway 4 Channel Data Transfer
Lan RJ45 PORT RTU Rs485 Ethernet Gateway 4 Channel Data Transfer
Lan RJ45 PORT RTU Rs485 Ethernet Gateway 4 Channel Data Transfer
Lan RJ45 PORT RTU Rs485 Ethernet Gateway 4 Channel Data Transfer
Lan RJ45 PORT RTU Rs485 Ethernet Gateway 4 Channel Data Transfer
Lan RJ45 PORT RTU Rs485 Ethernet Gateway 4 Channel Data Transfer
Lan RJ45 PORT RTU Rs485 Ethernet Gateway 4 Channel Data Transfer
Specifications
Brand Name :
IOTROUTER
Model Number :
ZHC1931
Certification :
CE FCC RoHs
Place of Origin :
Sichuan, CHINA
MOQ :
1PCS
Price :
USD39.9/PCS
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
50000PCS/MONTH
Delivery Time :
1 WEEK
Packaging Details :
270*180*55mm CARTON PACKAGE
Material :
Galvanized Steel Sheet
Interface :

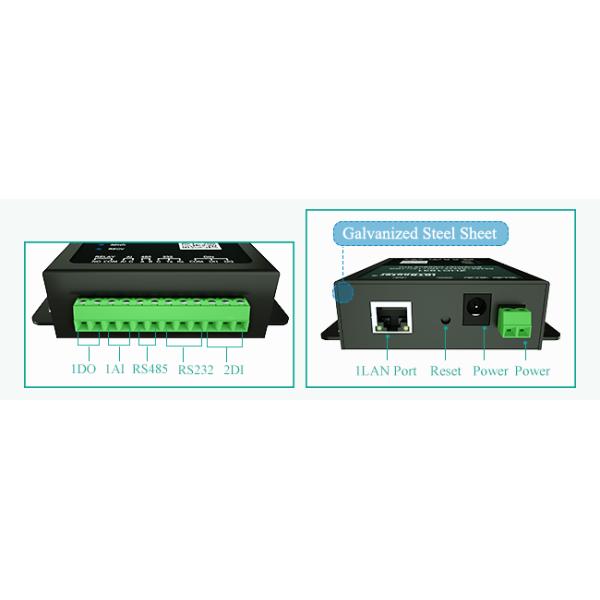

RS485/1AI/1DO/2DI
Protocol :
MODBUS TCP/RTU MQTT
Function :
Transparent Transmission
Application :
IOT Monitoring
Working Voltage :
12V
Module Type :
Ethernet
Customized :
Support
OEM :
Support
Description

4 Channel Data Transfer Ethernet Gateway Lan Port RTU for Industrial Automation

Parameters of ZHC1931

POWER
NETWORK
POWER SUPPLY
9~36V
NETWORK TYPE
ETHERNET
Working Current
200mA(aver)/340mA(max)@9V
NUMBER
LAN*1
50mA(aver)/850mA(max)@36V
PORT TYPE
Ethernet signal, RJ45
SERIAL PORT
AI
Serial Port
RS485*1
Number
1
Standard
RS485: 2 Two terminals(A,B)
Standard
AI*1 COM*2
Data bits
8, 9
DO
Stop bits
0.5, 1, 1.5, 2
Standard
(NO,COM)*1
Parity bits
NONE,EVEN,ODD
AC
250V 10A
Number
1
DC
30V 10A
Serial Port
RS232*1
DI
Standard
Tx, Rx G
Standard
DI*2 COM*1
Size
93*69*25mm
Detect Range
5~50v High 0~2v Low


Introduction​ of ZHC1931

ZHC1931 is an industrial-level RJ45 Remote Terminal Unit, providing 1 channel RS485/232, 2 channel switch input, 1 channel switch output and 1 channel analog input interface, supporting 4-channel Socket, Modbus RTU/TCP adaptive, local logic processing operation, automatic acquisition and active reporting, DO remote follow AI/DI, configuration and cloud real-time monitoring PLC, automatic acquisition of IP address.

  • Function​ of ZHC1931

IOTRouter's Ethernet converter ZHC1931 have hardware watchdog, rugged metal casing, and industrial EMC protection ensure reliable serial-to-Ethernet connectivity when operating in harsh environments such as oil and gas and power automation.

Application of ZHC1931

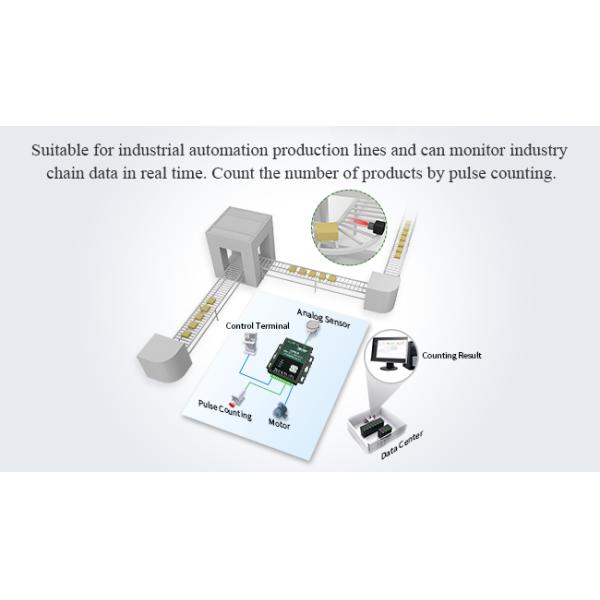

The product ZHC1931 has been widely used in the M2M industry of the IoT industrial chain, such as smart grid, intelligent transportation, smart home, finance, mobile POS terminals, supply chain automation, industrial automation, intelligent building, fire protection, public safety, environmental protection, meteorology, digital medical, telemetry, agriculture, forestry, water, coal, petrochemical and other related fields.

Lan RJ45 PORT RTU Rs485 Ethernet Gateway 4 Channel Data Transfer

Lan RJ45 PORT RTU Rs485 Ethernet Gateway 4 Channel Data Transfer

Lan RJ45 PORT RTU Rs485 Ethernet Gateway 4 Channel Data Transfer

Lan RJ45 PORT RTU Rs485 Ethernet Gateway 4 Channel Data Transfer

Lan RJ45 PORT RTU Rs485 Ethernet Gateway 4 Channel Data Transfer

Lan RJ45 PORT RTU Rs485 Ethernet Gateway 4 Channel Data Transfer

Lan RJ45 PORT RTU Rs485 Ethernet Gateway 4 Channel Data Transfer

Lan RJ45 PORT RTU Rs485 Ethernet Gateway 4 Channel Data Transfer

ZHC1931

RS485 Modbus

√

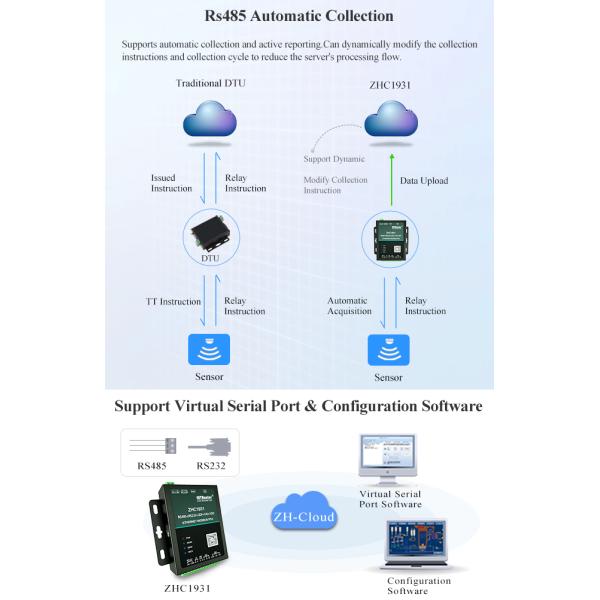

RS485 Automatic Acquisition

√

Virtual Serial Port

√

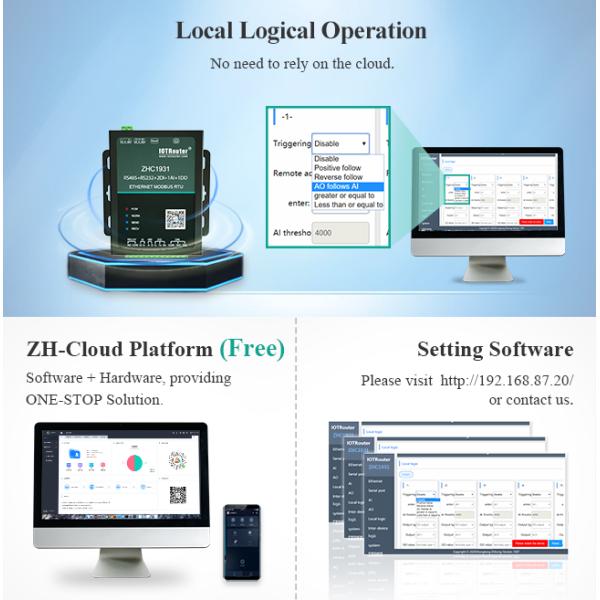

Connfiguration Software

√

Threshold Report

√

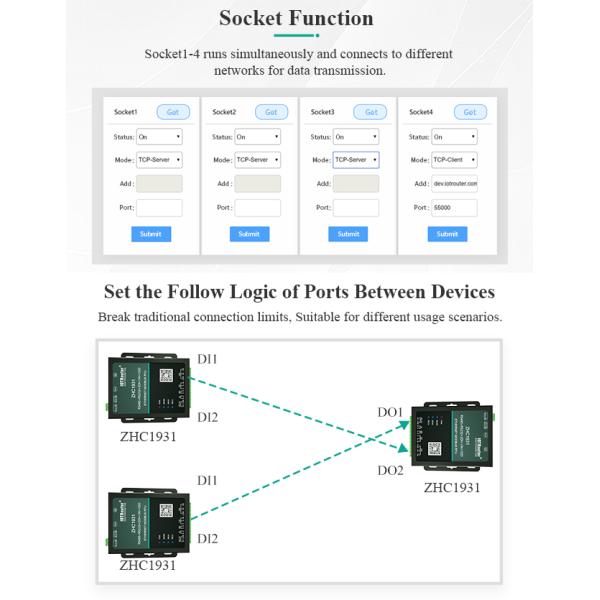

Customize the Follow Logic of Ports

√

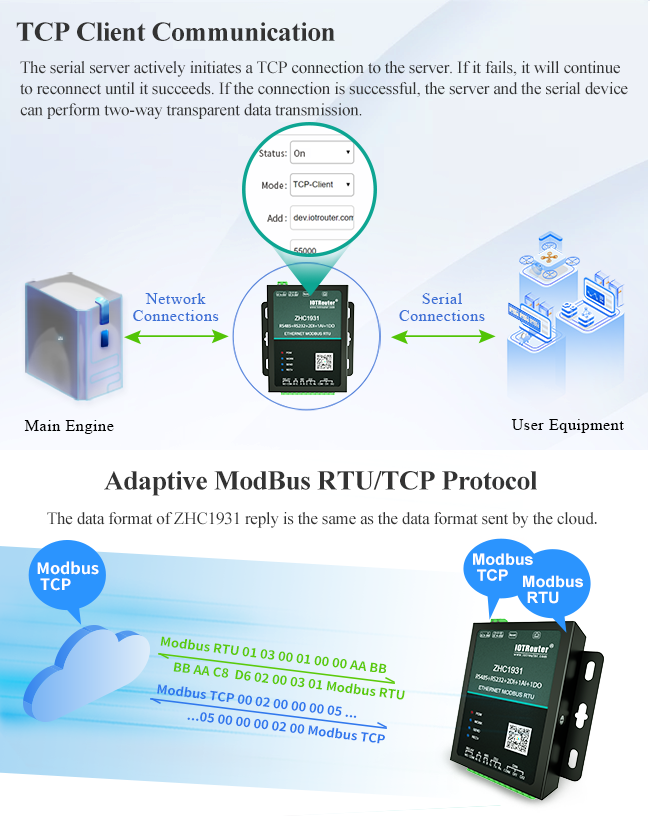

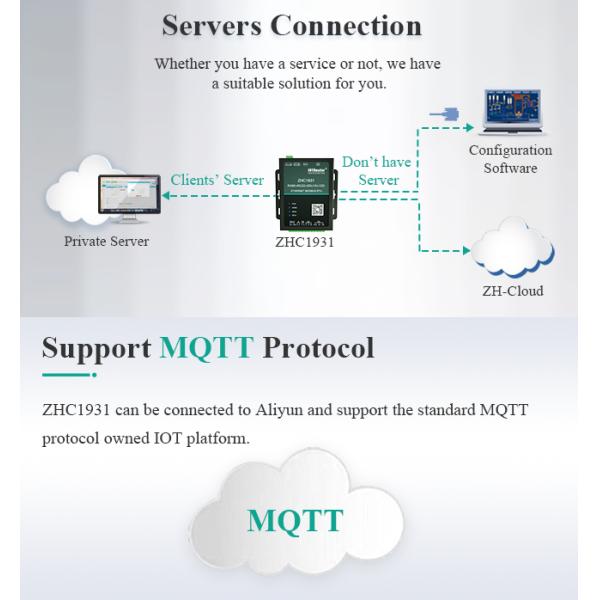

MQTT/Modbus RTU/TCP

√
