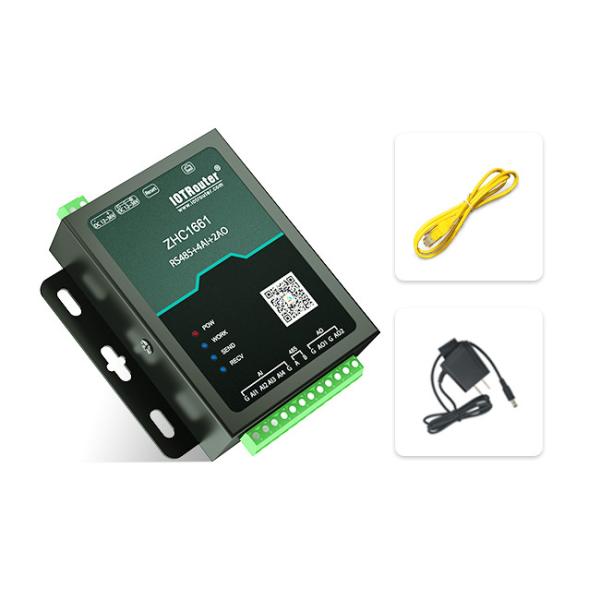

RS485 Serial To Ethernet RTU Analog Data Acquisition MQTT Modbus Gateway
RS485 Serial To Ethernet RTU Analog Data Acquisition MQTT Modbus Gateway
RS485 Serial To Ethernet RTU Analog Data Acquisition MQTT Modbus Gateway
RS485 Serial To Ethernet RTU Analog Data Acquisition MQTT Modbus Gateway
RS485 Serial To Ethernet RTU Analog Data Acquisition MQTT Modbus Gateway
RS485 Serial To Ethernet RTU Analog Data Acquisition MQTT Modbus Gateway
RS485 Serial To Ethernet RTU Analog Data Acquisition MQTT Modbus Gateway
RS485 Serial To Ethernet RTU Analog Data Acquisition MQTT Modbus Gateway
Specifications
Brand Name :
IOTROUTER
Model Number :
ZHC1661
Certification :
CE FCC RoHs
Place of Origin :
Sichuan, CHINA
MOQ :
1PCS
Price :
USD39.9/PCS
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
50000PCS/MONTH
Delivery Time :
1 WEEK
Packaging Details :
270*180*55mm CARTON PACKAGE
Material :
Galvanized Steel Sheet
Interface :
RS485/4AI/2AO
Protocol :
MODBUS TCP/RTU MQTT
Function :
Transparent Transmission
Application :
IOT Monitoring
Working Voltage :
12V
Module Type :
Ethernet
Customized :
Support
OEM :
Support
Description

RS485 Srial to Ethernet RTU Analog Data Acquisition MQTT Modbus Gateway

Parameters of ZHC1661

POWER
NETWORK
POWER SUPPLY
9~36V
NETWORK TYPE
ETHERNET
Working Current
200mA(aver)/340mA(max)@9V
NUMBER
LAN*1
50mA(aver)/850mA(max)@36V
PORT TYPE
Ethernet signal, RJ45
SERIAL PORT
AI
Serial Port
RS485*1
Number
4
Standard
RS485: 2 Two terminals(A,B)
Standard
AI*4 COM*2
Data bits
8, 9
AO
Stop bits
0.5, 1, 1.5, 2
Standard
AO*2 COM*2
Parity bits
NONE,EVEN,ODD
Detect Range
4-20mA
Number
1
Number
2


Introduction​ of ZHC1661

ZHC1661 is an industrial RJ45 Remote Terminal Unit, which provides 4-way AI, 2-way AO and 1-way RS485 interfaces. It supports 4-way Socket, Modbus RTU/TCP adaptive, 4-20mA analog volume automatic reporting, 12-bit sampling accuracy, AO remote following AI, configuration and cloud real-time monitoring PLC, automatic acquisition of IP address, DNS domain name resolution and other features.

  • Function​ of ZHC1661

ZHC1661 can connect with host computer or PLC through RS485 communication interface and serial communication, and transmit data of each channel to host computer.Adaptive Modbus RTU/TCP protocol, what format of data is sent to the cloud, what format of data will 1661 reply to. Support one-to-one, one-to-many connection, Also can communicate with PLC.

Application of ZHC1661

Industrial Automation
Suitable for industrial automation production lines and can monitor industry chain data in real time. Count the number of products by pulse counting.

Traffic Lights Management System
Unified management of street lamps to achieve remote monitoring and intelligent management of lighting. Reduce manpower management costs and improve maintenance efficiency.

RS485 Serial To Ethernet RTU Analog Data Acquisition MQTT Modbus Gateway

RS485 Serial To Ethernet RTU Analog Data Acquisition MQTT Modbus Gateway

RS485 Serial To Ethernet RTU Analog Data Acquisition MQTT Modbus Gateway

RS485 Serial To Ethernet RTU Analog Data Acquisition MQTT Modbus Gateway

RS485 Serial To Ethernet RTU Analog Data Acquisition MQTT Modbus Gateway

RS485 Serial To Ethernet RTU Analog Data Acquisition MQTT Modbus Gateway

RS485 Serial To Ethernet RTU Analog Data Acquisition MQTT Modbus Gateway

RS485 Serial To Ethernet RTU Analog Data Acquisition MQTT Modbus Gateway

ZHC1661

RS485 Modbus

√

RS485 Automatic Acquisition

√

Virtual Serial Port

√

Connfiguration Software

√

Threshold Report

√

Customize the Follow Logic of Ports

√

MQTT/Modbus RTU/TCP

√
