2G IOT Wireless Cellular Modem Multi Purpose Cellular Data Transfer Unit
2G IOT Wireless Cellular Modem Multi Purpose Cellular Data Transfer Unit
2G IOT Wireless Cellular Modem Multi Purpose Cellular Data Transfer Unit
2G IOT Wireless Cellular Modem Multi Purpose Cellular Data Transfer Unit
2G IOT Wireless Cellular Modem Multi Purpose Cellular Data Transfer Unit
2G IOT Wireless Cellular Modem Multi Purpose Cellular Data Transfer Unit
2G IOT Wireless Cellular Modem Multi Purpose Cellular Data Transfer Unit
2G IOT Wireless Cellular Modem Multi Purpose Cellular Data Transfer Unit
Specifications
Brand Name :
IOTROUTER
Model Number :
ZHC4921
Certification :
CE FCC RoHs
Place of Origin :
Sichuan, CHINA
MOQ :
1PCS
Price :
USD49-55/PCS
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
50000PCS/MONTH
Delivery Time :
1 WEEK
Packaging Details :
270*180*55mm CARTON PACKAGE
Material :
Galvanized Steel Sheet
Product Name :
Industrial 2G IOT Cellular Modem
Interface :
RS485/4DI/4DO/4AI
Protocol :
MODBUS TCP/RTU
Function :
Wireless Data Transfer
Application :
Iot Automation
Working Voltage :
12V
Module Type :
GPRS
Customized :
Support
Size :
159*95.9*27.5mm
Description

Industrial 2G IOT Cellular Modem Multi-Purpose Wireless Cellular Data Transfer Unit

  • Introduction​ of IOT Cellular Modem

ZHC2921 is a network IO product that supports 4-channel dry (wet) node detection, 4-channel relay (COM, NO, NC) output, 4-channel analog (current 4~20mA) detection, and 1-way serial port passthrough transmission. It is compatible with Modbus RTU/TCP protocol.With the function of "remote control" as the core, it is highly easy to use, and users can easily and quickly integrate into their own system to realize the remote control based on GPRS network.

Parameters of IOT Cellular Modem

Serial Port
DO
Number of ports
RS485*1
Number of interfaces
4 Relay output
Standard
RS485: A, B
Standard
DO*4, COM*2
Baud rate
600～921600bps
Mechanical durability
10^7
Data bit
8, 9
Electrical durability
10^5
Stop bit
0.5, 1, 1.5, 2
Capacity
5A 250VAC 30VDC
Check Bit
NONE EVEN ODD
DI
Power Supply
Number of interfaces
4 Relay input
Voltage
9~36V
Standard
DI*4, COM*2
Current
60mA(aver) @9V
30mA(aver) @36V
Detection range (wet node)
5~50V->High0~2V->Low
EMC
AI
ESD
IEC61000-4-2, Level 4
Number of Interfaces
4 Analog input
Surge
IEC61000-4-2, Level 3
Standard
AI*4, COM*2
Group pulse
IEC61000-4-2, Level 3
Scope of test
4~20mA


  • Solution of IOT Cellular Modem

Remote Intelligent Wireless Remote Meter Reading

Zongheng intelligent control combined with the existing Internet of Things technology, using 2G RTU+ smart meter + cloud technology.Connect 2G RTU and smart electricity meter together, collect the electricity meter data, send it directly to the server through GPRS network, deploy to the server on the management platform, through the platform, the administrator can real-time view the electricity consumption of each floor of each meter.

  • 2G IOT Wireless Cellular Modem Multi Purpose Cellular Data Transfer Unit

2G IOT Wireless Cellular Modem Multi Purpose Cellular Data Transfer Unit

2G IOT Wireless Cellular Modem Multi Purpose Cellular Data Transfer Unit

2G IOT Wireless Cellular Modem Multi Purpose Cellular Data Transfer Unit

2G IOT Wireless Cellular Modem Multi Purpose Cellular Data Transfer Unit

2G IOT Wireless Cellular Modem Multi Purpose Cellular Data Transfer Unit

2G IOT Wireless Cellular Modem Multi Purpose Cellular Data Transfer Unit

2G IOT Wireless Cellular Modem Multi Purpose Cellular Data Transfer Unit

ZHC2921

RS485 Modbus

√

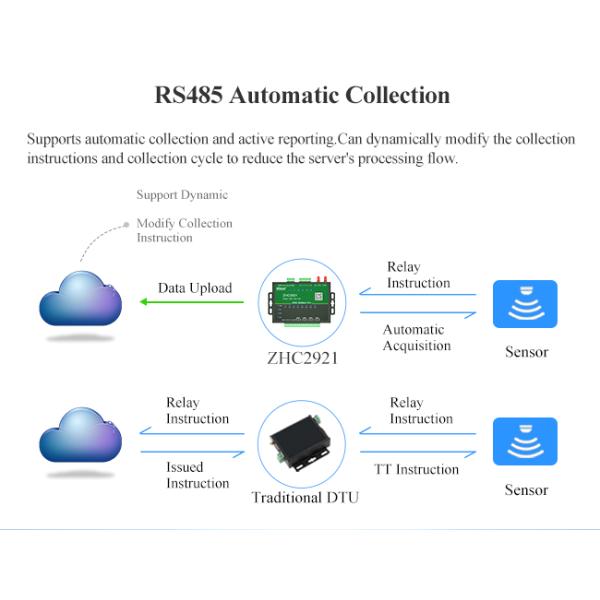

RS485 Automatic Acquisition

√

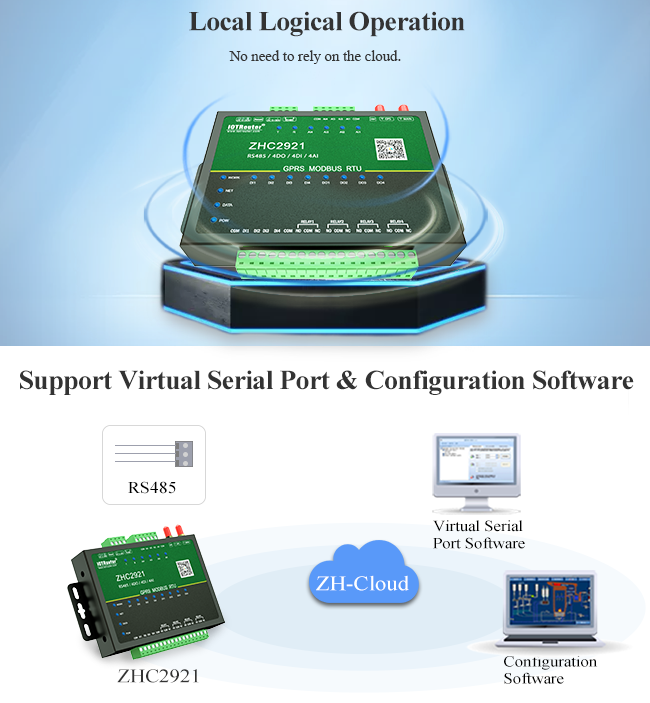

Virtual Serial Port

√

Connfiguration Software

√

Threshold Report

√
Configuration Software Docking √

Modbus RTU/TCP

√
