Wireless Digital Cellular Iot Lte Modem With IOT Platform Support 2DI 1DO 1AI
Wireless Digital Cellular Iot Lte Modem With IOT Platform Support 2DI 1DO 1AI
Wireless Digital Cellular Iot Lte Modem With IOT Platform Support 2DI 1DO 1AI
Wireless Digital Cellular Iot Lte Modem With IOT Platform Support 2DI 1DO 1AI
Wireless Digital Cellular Iot Lte Modem With IOT Platform Support 2DI 1DO 1AI
Wireless Digital Cellular Iot Lte Modem With IOT Platform Support 2DI 1DO 1AI
Wireless Digital Cellular Iot Lte Modem With IOT Platform Support 2DI 1DO 1AI
Wireless Digital Cellular Iot Lte Modem With IOT Platform Support 2DI 1DO 1AI
Specifications
Brand Name :
IOTROUTER
Model Number :
ZHC4931
Certification :
CE FCC RoHs
Place of Origin :
Sichuan, CHINA
MOQ :
1PCS
Price :
USD69-76/PCS
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
50000PCS/MONTH
Delivery Time :
1 WEEK
Packaging Details :
270*180*55mm CARTON PACKAGE
Material :
Galvanized Steel Sheet
Interface :
RS485/2DI/1DO/1AI
Protocol :
MODBUS TCP/RTU
Function :
IOT Platform
Application :
Water Meter Connection
Working Voltage :
12V
Module Type :
4G LTE
Customized :
Support
Product Name :
Wireless Digital Input IOT Cellular Modem
Size :
93*69*25mm
Description

Wireless Digital Input IOT Cellular Modem With IOT Platform Support 2DI 1DO 1AI

  • Introduction​ of IOT Cellular Modem

Product model: ZHC4931, providing 1RS485/1RS232/1DI/1DO/1AI interface.
Features: Threshold reporting, wet and dry node detection, and the device itself supports logical operations.
Protocol: Support Modbusr RTU/TCP adaptive.
Industrial-grade quality: anti-reverse connection, anti-surge, dual watchdogs, can work normally at -20℃~+60℃
The product is suitable for: data security monitoring, remote water pump automatic control, water resources real-time management system

Parameters of IOT Cellular Modem

Serial Port
DO
Number of ports
RS485*1
Number of interfaces
1 Relay output
Standard
RS485: A, B
Standard
DO*1
Baud rate
600～921600bps
Mechanical durability
10^7
Data bit
8, 9
Electrical durability
10^5
Stop bit
0.5, 1, 1.5, 2
Capacity
5A 250VAC 30VDC
Check Bit
NONE EVEN ODD
DI
Power Supply
Number of interfaces
2 Relay input
Voltage
9~36V
Standard
DI*2, COM*1
Current
60mA(aver) @9V
30mA(aver) @36V
Detection range (wet node)
5~50V->High0~2V->Low
EMC
AI
ESD
IEC61000-4-2, Level 4
Number of Interfaces
1 Analog input
Surge
IEC61000-4-2, Level 3
Standard
AI*1
Group pulse
IEC61000-4-2, Level 3
Scope of test
4~20mA


  • Features of IOT Cellular Modem
  • ZHC4931 can communicate directly with the client server after simply configured. The ZHC4931 follows the Modbus RTU/TCP protocol and also supports 485-channel transparent transmission protocols.

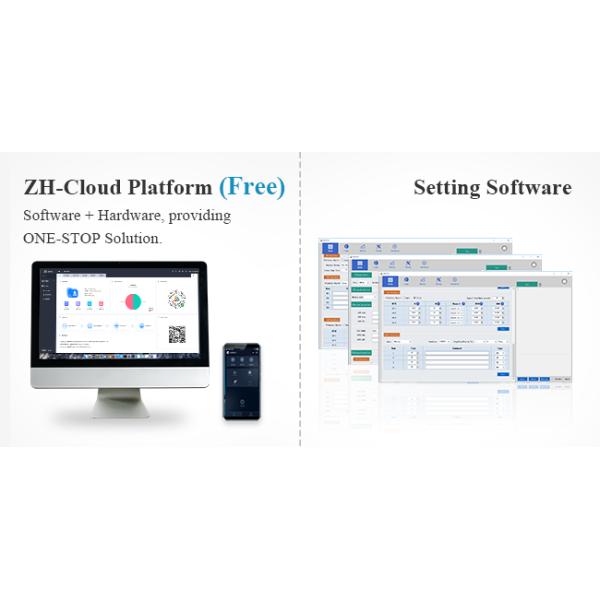

  • When some customers use the configuration software, they can't directly connect the PC and S485. ZHC4931 supports the ZH-Cloud transmission. The customer only need to install the virtual serial port, the data of the ZHC4931 can be forwarded to the local serial port of the PC, which is more convenient and quick. (Also applicable to scenarios without a cloud server)

Wireless Digital Cellular Iot Lte Modem With IOT Platform Support 2DI 1DO 1AI

Wireless Digital Cellular Iot Lte Modem With IOT Platform Support 2DI 1DO 1AI

Wireless Digital Cellular Iot Lte Modem With IOT Platform Support 2DI 1DO 1AI

Wireless Digital Cellular Iot Lte Modem With IOT Platform Support 2DI 1DO 1AI

Wireless Digital Cellular Iot Lte Modem With IOT Platform Support 2DI 1DO 1AI

Wireless Digital Cellular Iot Lte Modem With IOT Platform Support 2DI 1DO 1AI

Wireless Digital Cellular Iot Lte Modem With IOT Platform Support 2DI 1DO 1AI

Wireless Digital Cellular Iot Lte Modem With IOT Platform Support 2DI 1DO 1AI

ZHC4931

RS485 Modbus

√

RS485 Automatic Acquisition

√

Virtual Serial Port

√

Connfiguration Software

√

Threshold Report

√
Configuration Software Docking √

Modbus RTU/TCP

√
