Industrial Lte Router IOT Cellular Modem Remote Monitoring Relay Modem
Industrial Lte Router IOT Cellular Modem Remote Monitoring Relay Modem
Industrial Lte Router IOT Cellular Modem Remote Monitoring Relay Modem
Industrial Lte Router IOT Cellular Modem Remote Monitoring Relay Modem
Industrial Lte Router IOT Cellular Modem Remote Monitoring Relay Modem
Industrial Lte Router IOT Cellular Modem Remote Monitoring Relay Modem
Industrial Lte Router IOT Cellular Modem Remote Monitoring Relay Modem
Industrial Lte Router IOT Cellular Modem Remote Monitoring Relay Modem
Specifications
Brand Name :
IOTROUTER
Model Number :
ZHC4941
Certification :
CE FCC RoHs
Place of Origin :
Sichuan, CHINA
MOQ :
1PCS
Price :
USD100-110/PCS
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
50000PCS/MONTH
Delivery Time :
1 WEEK
Packaging Details :
270*180*55mm CARTON PACKAGE
Material :
Galvanized Steel Sheet
Interface :
RS485/8DI/8DO/8AI
Protocol :
MODBUS TCP/RTU
Function :
Transparent Transmission
Application :
Remote Monitoring
Working Voltage :
12V
Module Type :
4G LTE
Customized :
Support
Product Name :
Industrial Lte Router IOT Cellular Modem
Size :
190*95*30mm
Color :
Black
Description

Industrial Lte Router IOT Cellular Modem With Relay Control For Remote Monitoring

  • Introduction​ of IOT Cellular Modem

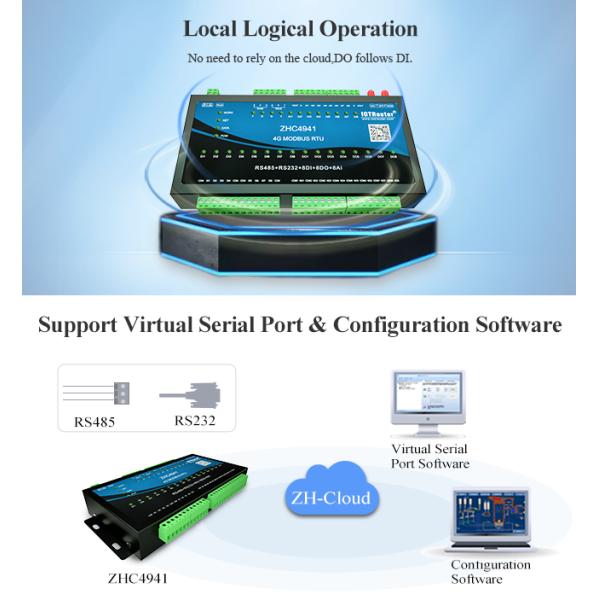

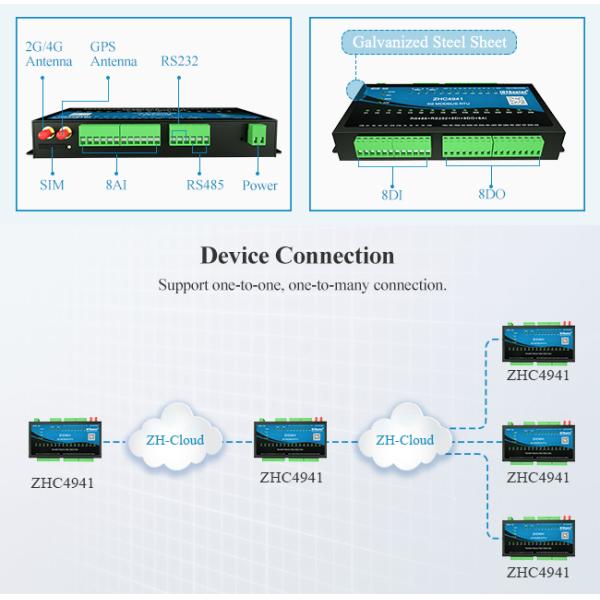

  • 4G IOT Cellular Modem ZHC4941 is an industrial-grade 4G RTU that provides 8 DI, 8 DO, 8 AI and 1 RS485/232 interface, supports local logic processing operations, automatic acquisition and active reporting, Modbus RTU/TCP adaptation, and automatic threshold calibration Special functions such as reporting, configuration software docking, dry and wet node IO detection, support one-to-one, many-to-one network.

Parameters of IOT Cellular Modem

Serial Port
DO
Number of ports
RS485*1
Number of interfaces
8 Relay output
Standard
RS485: A, B
Standard
DO*8, COM*2
Baud rate
600～921600bps
Mechanical durability
10^7
Data bit
8, 9
Electrical durability
10^5
Stop bit
0.5, 1, 1.5, 2
Capacity
5A 250VAC 30VDC
Check Bit
NONE EVEN ODD
DI
Power Supply
Number of interfaces
8 Relay input
Voltage
9~36V
Standard
DI*8, COM*2
Current
60mA(aver) @9V
30mA(aver) @36V
Detection range (wet node)
5~50V->High0~2V->Low
EMC
AI
ESD
IEC61000-4-2, Level 4
Number of Interfaces
8 Analog input
Surge
IEC61000-4-2, Level 3
Standard
AI*8, COM*2
Group pulse
IEC61000-4-2, Level 3
Scope of test
4~20mA

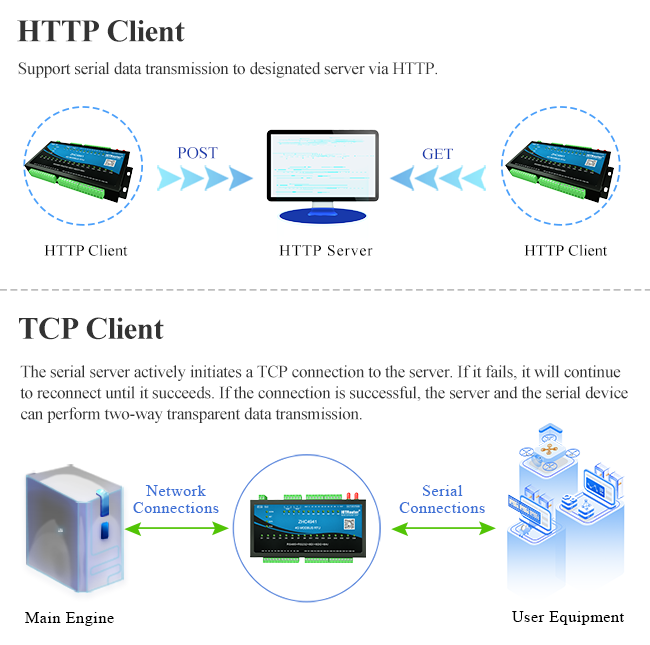

Working Mode of IOT Cellular Modem

1.HTTP Client
Support serial data transmission to designated server via HTTP.
2. TCP Client
The serial server actively initiates a TCP connection to the server. If it fails, it will continue to reconnect until it succeeds. If the connection is successful, the server and the serial device can perform two-way transparent data transmission.

  • Application
  • of
  • IOT Cellular Modem
  • IOT Cellular ZHC4941 can be applied to an intelligent remote meter reading system. According to customer needs, the monitoring center can realize remote shutdown of water and electricity to terminal users through the data acquisition control terminal. When the transmission data is abnormal, the monitoring center can alarm and display. Relevant staff can repair the field instruments in a targeted manner. Mainly used in factories, hotels, schools, hospitals and other large users of water consumption and the total amount of water in various regions, and remote meter reading of electricity consumption of large users such as substations, distribution stations, enterprises and institutions, schools, hospitals, etc.

Industrial Lte Router IOT Cellular Modem Remote Monitoring Relay Modem

Industrial Lte Router IOT Cellular Modem Remote Monitoring Relay Modem

Industrial Lte Router IOT Cellular Modem Remote Monitoring Relay Modem

Industrial Lte Router IOT Cellular Modem Remote Monitoring Relay Modem

Industrial Lte Router IOT Cellular Modem Remote Monitoring Relay Modem

Industrial Lte Router IOT Cellular Modem Remote Monitoring Relay Modem

Industrial Lte Router IOT Cellular Modem Remote Monitoring Relay Modem

Industrial Lte Router IOT Cellular Modem Remote Monitoring Relay Modem

ZHC4941

RS485 Modbus

√

RS485 Automatic Acquisition

√

Virtual Serial Port

√

Connfiguration Software

√

Threshold Report

√
Configuration Software Docking √

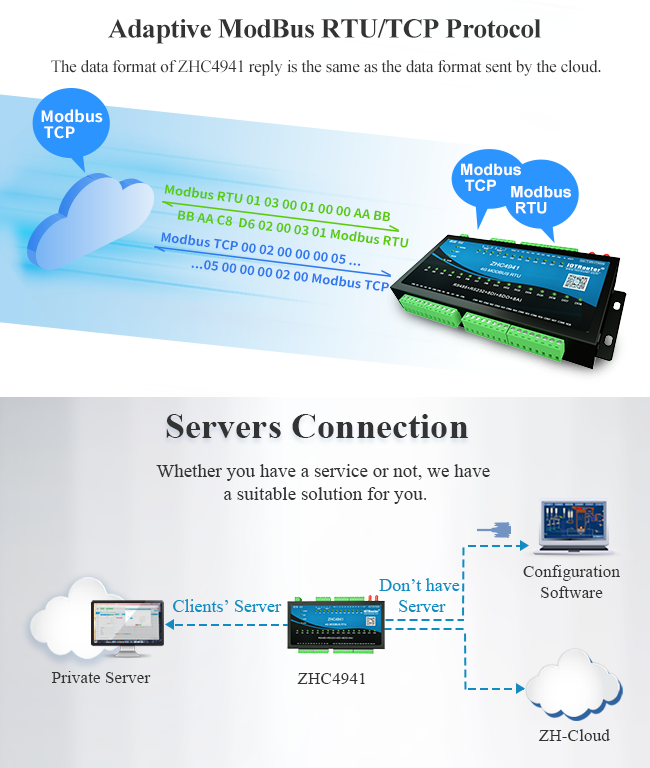

Modbus RTU/TCP

√
