Specifications
Brand Name :
IOTROUTER
Model Number :
ZHC1931
Certification :
CE FCC RoHs
Place of Origin :
Sichuan, CHINA
MOQ :
1PCS
Price :
USD35~39.9/PCS
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
50000PCS/MONTH
Delivery Time :
1 WEEK
Packaging Details :
270*180*55mm CARTON PACKAGE
Material :
Galvanized Steel Sheet

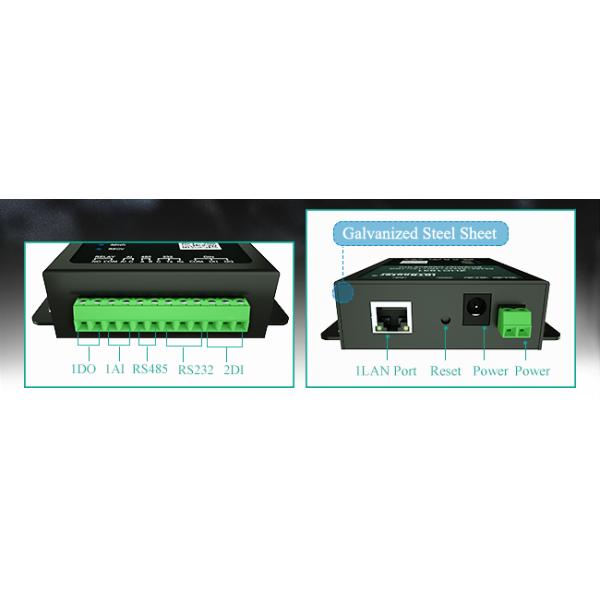

Interface :
RS485/1AI/1DO/2DI
Protocol :
MODBUS TCP/RTU MQTT
Product Name :
Rs485 MQTT Modbus TCP Serial To Ethernet
Function :
Transparent Transmission
Application :
Intelligent Agricultural
Working Voltage :
12V
Module Type :
Ethernet
OEM :
Support
Description

Rs485 MQTT Modbus TCP Serial To Ethernet RTU With Free Network Cable

Parameters of Serial to Ethernet RTU ZHC1931

POWER
NETWORK
POWER SUPPLY
9~36V
NETWORK TYPE
ETHERNET
Working Current
200mA(aver)/340mA(max)@9V
NUMBER
LAN*1
50mA(aver)/850mA(max)@36V
PORT TYPE
Ethernet signal, RJ45
SERIAL PORT
AI
Serial Port
RS485*1
Number
1
Standard
RS485: 2 Two terminals(A,B)
Standard
AI*1 COM*2
Data bits
8, 9
DO
Stop bits
0.5, 1, 1.5, 2
Standard
(NO,COM)*1
Parity bits
NONE,EVEN,ODD
AC
250V 10A
Number
1
DC
30V 10A
Serial Port
RS232*1
DI
Standard
Tx, Rx G
Standard
DI*2 COM*1
Size
93*69*25mm
Detect Range
5~50v High 0~2v Low


Introduction​ of Serial to Ethernet RTU ZHC1931

ZHC1931 is a network IO product that supports 2 dry (wet) node detection, 1 relay (COM, NO) output, 1 analog (current 4-20mA) detection, and 2 serial port transparent transmission. It is compatible with Modbus RTU/ TCP protocol.
With "remote control" as the functional core, it is highly easy to use. Users can easily and quickly integrate into their own systems to realize remote and local control based on Ethernet and RS485/RS232.

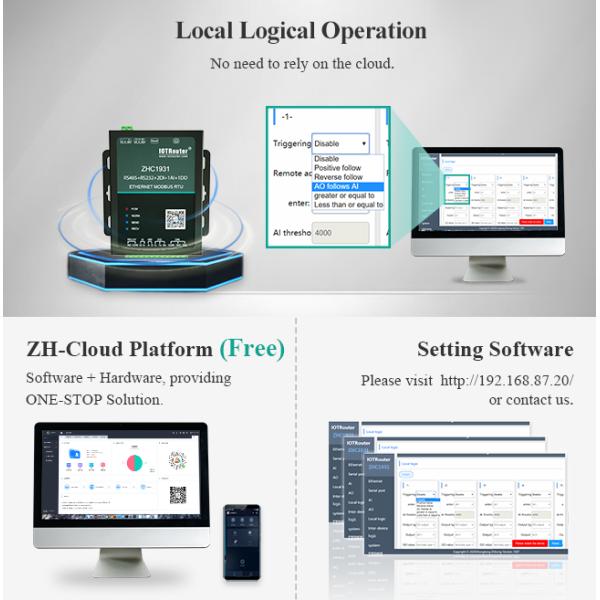

The ZHC1931 host computer is mainly divided into 2 functional modules, namely: data presentation and debugging parameters.
Data presentation: Mainly used for users to quickly use the device, control or view the data and status of each interface.
Debugging parameters: setting or viewing device ID information, etc., upgrading, resetting and restarting. The user can select the corresponding function for setting operation according to actual needs.


Application of Serial to Ethernet RTU ZHC1931

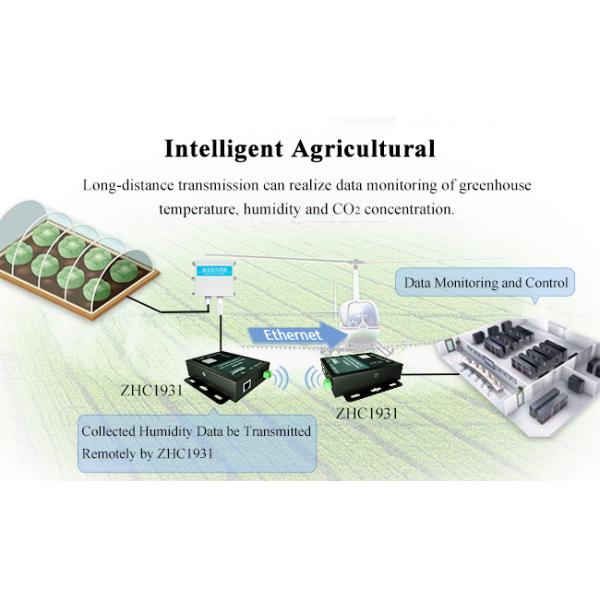

The product ZHC1931 has been widely used in the M2M industry of the IoT industrial chain, such as smart grid, intelligent transportation, smart home, finance, mobile POS terminals, supply chain automation, industrial automation, intelligent building, fire protection, public safety, environmental protection, meteorology, digital medical, telemetry, agriculture, forestry, water, coal, petrochemical and other related fields.

Modbus TCP Serial To Ethernet RTU

Modbus TCP Serial To Ethernet RTU

Modbus TCP Serial To Ethernet RTU

Modbus TCP Serial To Ethernet RTU

Modbus TCP Serial To Ethernet RTU

Modbus TCP Serial To Ethernet RTU

Modbus TCP Serial To Ethernet RTU

Modbus TCP Serial To Ethernet RTU

ZHC1931

RS485 Modbus

√

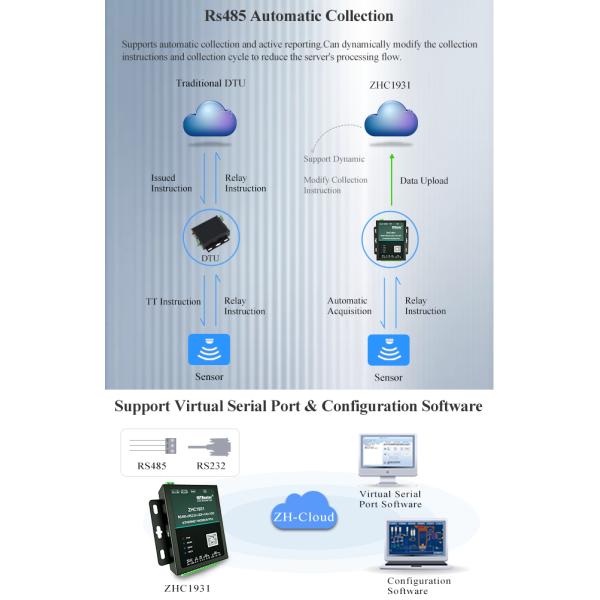

RS485 Automatic Acquisition

√

Virtual Serial Port

√

Connfiguration Software

√

Threshold Report

√

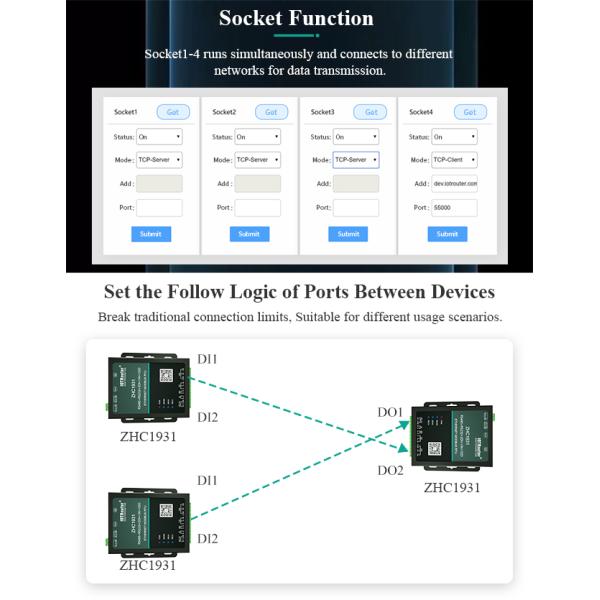

Customize the Follow Logic of Ports

√

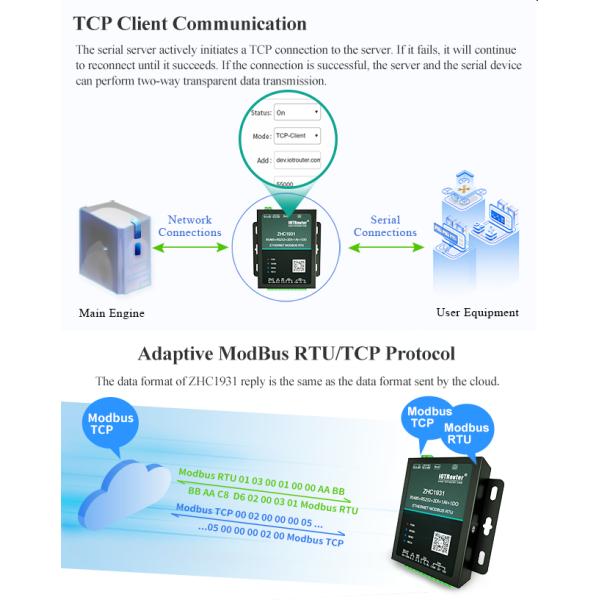

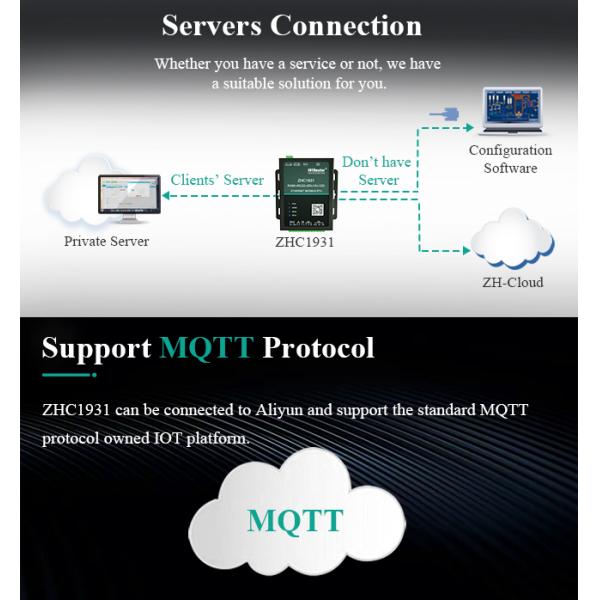

MQTT/Modbus RTU/TCP

√
