Specifications
Brand Name :
IOTROUTER
Model Number :
ZHC1661
Certification :
CE FCC RoHs
Place of Origin :
Sichuan, CHINA
MOQ :
1PCS
Price :
USD39.9/PCS
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
50000PCS/MONTH
Delivery Time :
1 WEEK
Packaging Details :
270*180*55mm CARTON PACKAGE
Material :
Galvanized Steel Sheet
Interface :
RS485/4AI/2AO
Protocol :
MODBUS TCP/RTU MQTT
Product Name :
Industrial RS485 Serial To Ethernet
Function :
Transparent Transmission
Application :
IOT Monitoring
Working Voltage :
12V
Module Type :
Ethernet
Customized :
Support
MOQ :
1PCS
Description

Industrial RS485 Serial To Ethernet modem Analog Data 4-20mA Acquisition RTU

Parameters of ZHC1661

POWER
NETWORK
POWER SUPPLY
9~36V
NETWORK TYPE
ETHERNET
Working Current
200mA(aver)/340mA(max)@9V
NUMBER
LAN*1
50mA(aver)/850mA(max)@36V
PORT TYPE
Ethernet signal, RJ45
SERIAL PORT
AI
Serial Port
RS485*1
Number
4
Standard
RS485: 2 Two terminals(A,B)
Standard
AI*4 COM*2
Data bits
8, 9
AO
Stop bits
0.5, 1, 1.5, 2
Standard
AO*2 COM*2
Parity bits
NONE,EVEN,ODD
Detect Range
4-20mA
Number
1
Number
2


Introduction​ of ZHC1661

ZHC1661 is a network IO product that supports 4 channels of analog detection (current 4~20mA), 2 channels of analog output (4~20mA), and 1 serial port (RS485) transparent transmission. It is compatible with Modbus RTU/TCP protocol. With "remote control" as the functional core, it is highly easy to use, and users can easily and quickly integrate into their own systems to realize remote and local control based on Ethernet and RS485.

  • Function​ of ZHC1661

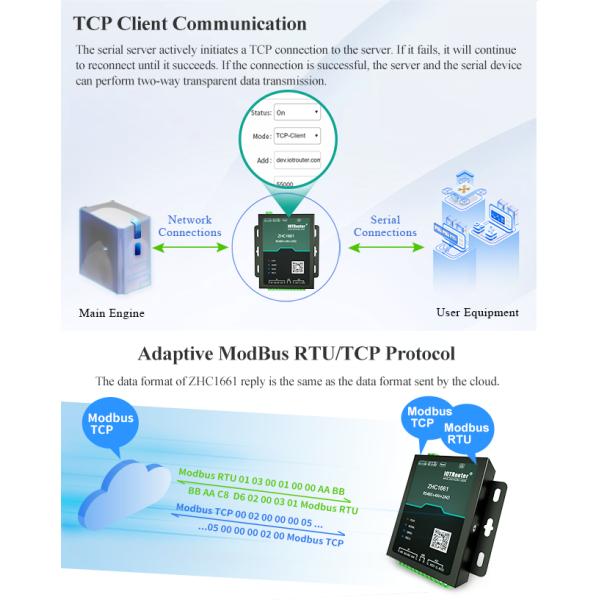

ZHC1661 can connect with host computer or PLC through RS485 communication interface and serial communication, and transmit data of each channel to host computer.Adaptive Modbus RTU/TCP protocol, what format of data is sent to the cloud, what format of data will 1661 reply to. Support one-to-one, one-to-many connection, Also can communicate with PLC.

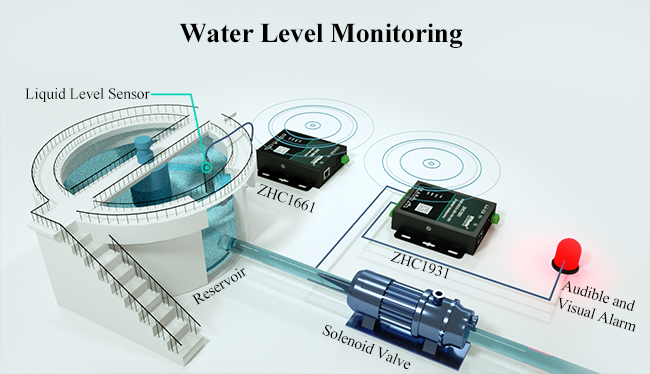

Application of ZHC1661

Industrial Automation
Suitable for industrial automation production lines and can monitor industry chain data in real time. Count the number of products by pulse counting.

Traffic Lights Management System
Unified management of street lamps to achieve remote monitoring and intelligent management of lighting. Reduce manpower management costs and improve maintenance efficiency.

Industrial RS485 Serial To Ethernet Modem Analog Data 4 To 20mA Acquisition RTU

Industrial RS485 Serial To Ethernet Modem Analog Data 4 To 20mA Acquisition RTU

Industrial RS485 Serial To Ethernet Modem Analog Data 4 To 20mA Acquisition RTU

Industrial RS485 Serial To Ethernet Modem Analog Data 4 To 20mA Acquisition RTU

Industrial RS485 Serial To Ethernet Modem Analog Data 4 To 20mA Acquisition RTU

Industrial RS485 Serial To Ethernet Modem Analog Data 4 To 20mA Acquisition RTU

Industrial RS485 Serial To Ethernet Modem Analog Data 4 To 20mA Acquisition RTU

Industrial RS485 Serial To Ethernet Modem Analog Data 4 To 20mA Acquisition RTU

ZHC1661

RS485 Modbus

√

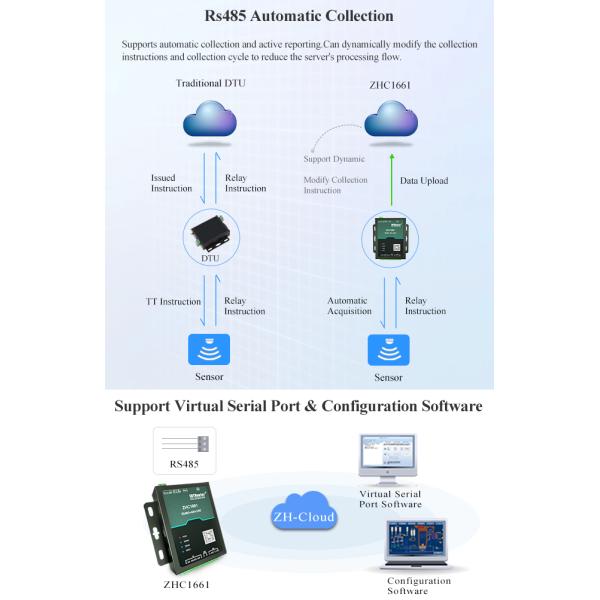

RS485 Automatic Acquisition

√

Virtual Serial Port

√

Connfiguration Software

√

Threshold Report

√

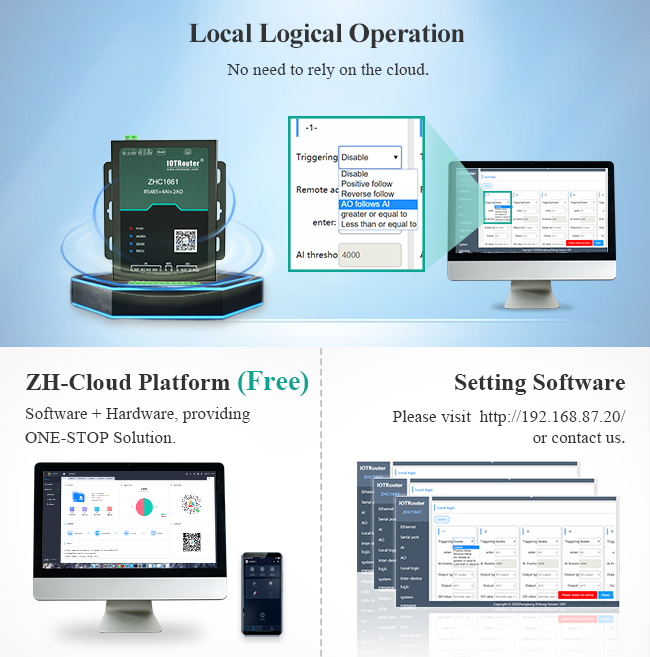

Customize the Follow Logic of Ports

√

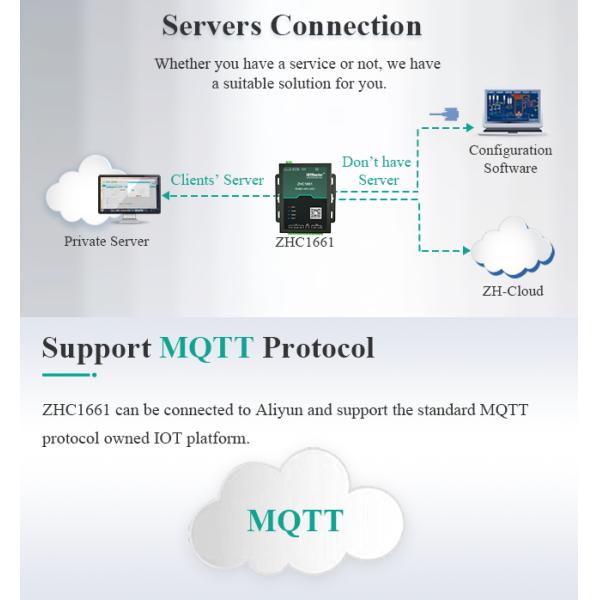

MQTT/Modbus RTU/TCP

√
