Modbus RS485 IOT Router MQTT Data Acquisition Module with WIFI and Sim Card
Modbus RS485 IOT Router MQTT Data Acquisition Module with WIFI and Sim Card
Modbus RS485 IOT Router MQTT Data Acquisition Module with WIFI and Sim Card
Modbus RS485 IOT Router MQTT Data Acquisition Module with WIFI and Sim Card
Modbus RS485 IOT Router MQTT Data Acquisition Module with WIFI and Sim Card
Modbus RS485 IOT Router MQTT Data Acquisition Module with WIFI and Sim Card
Modbus RS485 IOT Router MQTT Data Acquisition Module with WIFI and Sim Card
Modbus RS485 IOT Router MQTT Data Acquisition Module with WIFI and Sim Card
Specifications
Brand Name :
IOTROUTER
Model Number :
ZHL4931
Certification :
FCC ROHS CE
Place of Origin :
SICHUANG, CHINA
MOQ :
1PCS
Price :
USD95~99/PCS
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
50000PCS/MONTH
Delivery Time :
3 WEEKS
Packaging Details :
270*180*60mm Carton Package
Chipset :
QUECTEL-EC25
Ports :
RJ-45, RS485+DI+DO+WAN+4LAN
Product Name :
Modbus RS485 IOT Router
System :
Linux
Working Voltage :
12V
Module Type :
4G LTE
Material :
Galvanized Steel Sheet
Color :
Black
Customized :
Support
Working Temperature :
20℃~70℃
Description

Modbus RS485 IOT Router MQTT Data Acquisition Module with WIFI and Sim Card

Product Introduction of IOT Router ZHL4931

ZHL4931 is a 4G industrial router with multiple network ports. It supports wired WAN port, LAN port, wireless WLAN, and 4G network access. With routing Internet access and remote control as the core function, it is a highly easy-to-use industrial IoT wireless router.

  • Parameter of IOT Router ZHL4931

Interface Specification
WAN 1 * 10/100mbpsT(X) Ethernet port, adaptive MDI/MDIX
LAN 4 * 10/100mbpsT(X) Ethernet port, adaptive MDI/MDIX
RS485 Standard A,B Stop End 1,2
Baud rate 2400-921600 Data bits 8,7
DI Default dry node - test on/off (DI, COM) please consult customer service for wet node
DO Standard NO(always on) COM DC 30V-3A
AC 250V-3A Mechanical durability 10^7

Features of IOT Router ZHL4931

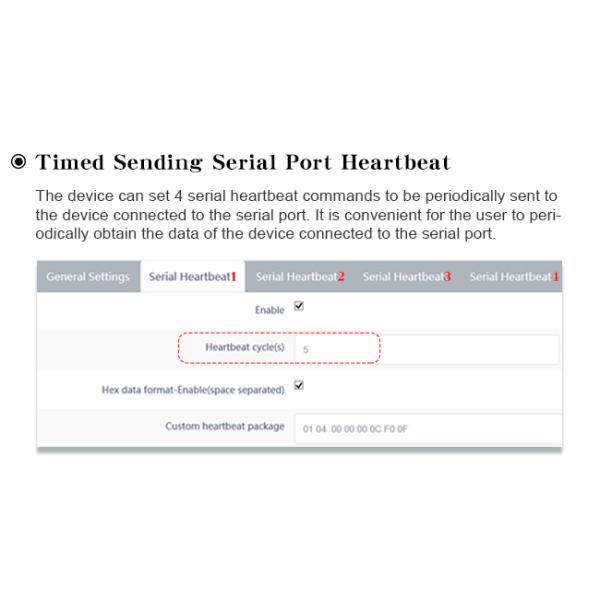

ZHL4931 can set 4 serial heartbeat commands to be periodically sent to the device connected to the serial port.

It is convenient for the user to periodically obtain the data of the device connected to the serial port.

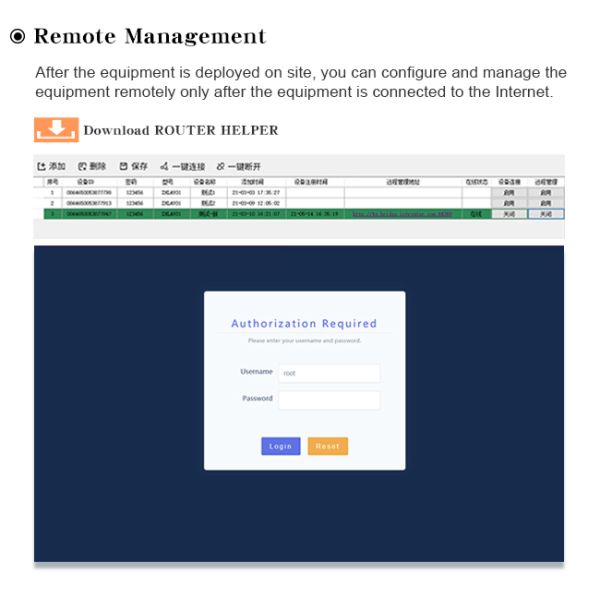

Also user can view the current DI DO status through the configuration web page and remote server.

And ZHL4931 provides an online diagnosis function, which is convenient for users to perform network analysis.
