IOT LoRa Modem with Digital Input Transmitter and Receiver Remote Control Unit
IOT LoRa Modem with Digital Input Transmitter and Receiver Remote Control Unit
IOT LoRa Modem with Digital Input Transmitter and Receiver Remote Control Unit
IOT LoRa Modem with Digital Input Transmitter and Receiver Remote Control Unit
IOT LoRa Modem with Digital Input Transmitter and Receiver Remote Control Unit
IOT LoRa Modem with Digital Input Transmitter and Receiver Remote Control Unit
IOT LoRa Modem with Digital Input Transmitter and Receiver Remote Control Unit
IOT LoRa Modem with Digital Input Transmitter and Receiver Remote Control Unit
Specifications
Brand Name :
IOTROUTER
Model Number :
ZHC0921
Certification :
CE FCC RoHs
Place of Origin :
Sichuan, CHINA
MOQ :
1PCS
Price :
USD18~20/PCS
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
50000PCS/MONTH
Delivery Time :
1 WEEK
Packaging Details :
270*180*55mm CARTON PACKAGE
Material :
Galvanized Steel Sheet
Interface :
RS485/1DI/1AI
Protocol :
MODBUS TCP/RTU
Function :
Transparent Transmission
Product Name :
433mhz Lora Modem
Application :
Wireless Data Gathering
Working Voltage :
12V
Module Type :
443MHZ LORA
OEM :
Support
Color :
Black
Description

IOT LoRa Modem with Digital Input Transmitter and Receiver Remote Control Unit

Parameters of Lora Modem

Power supply
Power supply range DC: 9~36V, Terminal size 5.08mm-2
GND
Signal ground
AI
4~20mA analog quantity detection
DI
1 default dry node on-off detection
SEND
Flashing means data is being sent
RECV
Flashing means that there is data reception

  • Introduction​ of Lora Modem

ZHC0921 is a data collection terminal based on the LoRa private protocol, which communicates with the concentrator ad hoc network.

Main Features of Lora Modem:

● No software is required to configure the node.
● Time division multiplexing to improve communication efficiency.

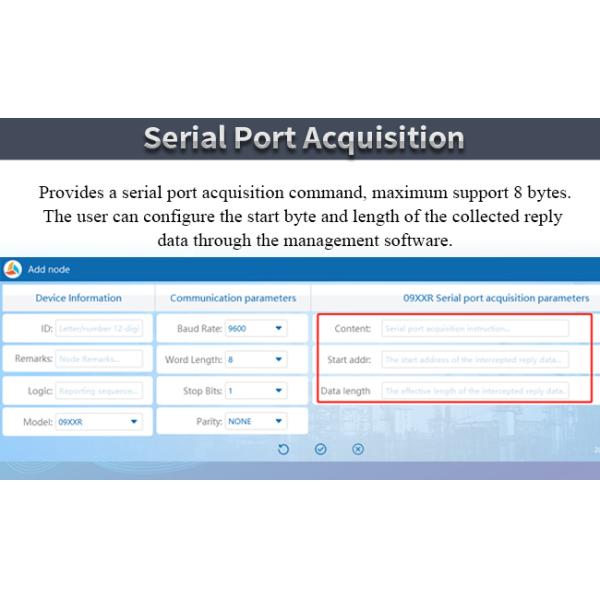

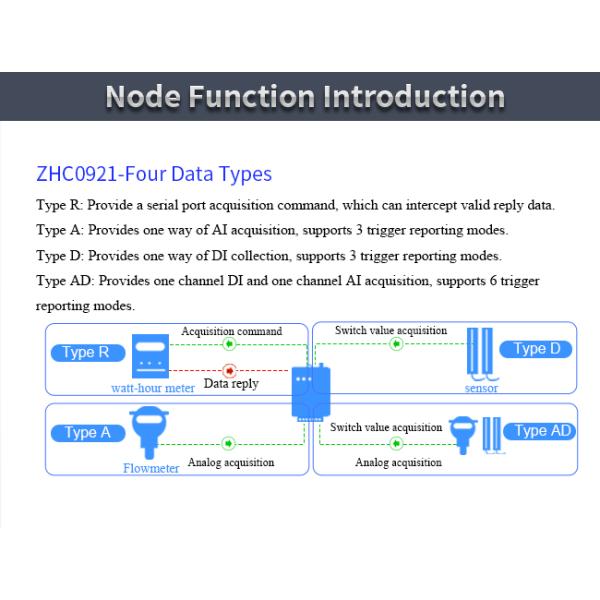

● Type R supports a serial port collection command, which can intercept collection responses; supports transparent transmission.
● Type A supports one-way AI acquisition, and can be configured with 3 trigger reporting modes.

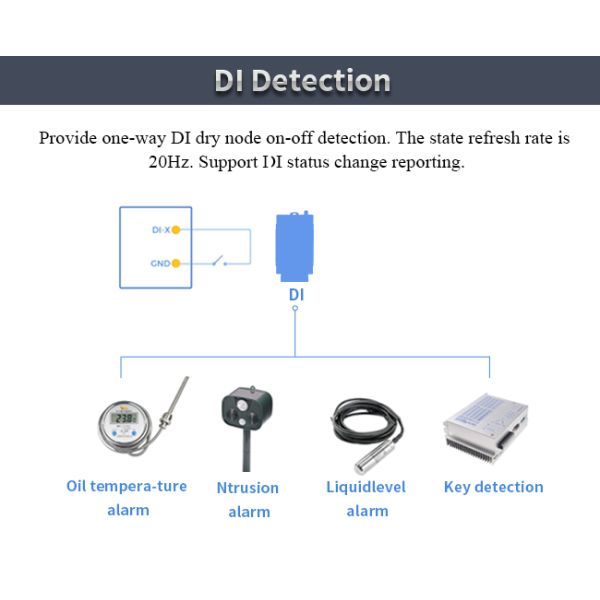

● Type D supports one-way DI collection, and can be configured with 3 trigger reporting modes.

● Type AD supports one-way AI and one-way DI collection, and 6 trigger reporting modes can be configured.
● Type E supports collection to meet Multifunctional energy meter with DL/T645 protocol.

● Support active detection.

IOT LoRa Modem with Digital Input Transmitter and Receiver Remote Control Unit

IOT LoRa Modem with Digital Input Transmitter and Receiver Remote Control Unit

IOT LoRa Modem with Digital Input Transmitter and Receiver Remote Control Unit

IOT LoRa Modem with Digital Input Transmitter and Receiver Remote Control Unit

IOT LoRa Modem with Digital Input Transmitter and Receiver Remote Control Unit

IOT LoRa Modem with Digital Input Transmitter and Receiver Remote Control Unit

IOT LoRa Modem with Digital Input Transmitter and Receiver Remote Control Unit

ZHC0921
RS485 Modbus √
One to one, one to many Connection √
RS485 Automatic Acquisition √
Virtual Serial Port √
Connfiguration Software √
Multi-BAND FREQUENCY √
