4-20mA Remote IO Module Modbus RS485 Converter with Analog Input Ports
4-20mA Remote IO Module Modbus RS485 Converter with Analog Input Ports
4-20mA Remote IO Module Modbus RS485 Converter with Analog Input Ports
4-20mA Remote IO Module Modbus RS485 Converter with Analog Input Ports
4-20mA Remote IO Module Modbus RS485 Converter with Analog Input Ports
4-20mA Remote IO Module Modbus RS485 Converter with Analog Input Ports
Specifications
Brand Name :
IOTROUTER
Model Number :
Z-A0800
Certification :
CE FCC RoHs
Place of Origin :
Sichuan, CHINA
MOQ :
1PCS
Price :
USD22/PCS
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
50000PCS/MONTH
Delivery Time :
1 WEEK
Packaging Details :
120*70*40mm CARTON PACKAGE
Material :
PLASTIC
Interface :
RS485/8AI
Protocol :
MODBUS RTU
Function :
Transparent Transmission
Application :
IOT Monitoring
Working Voltage :
12V
Module Type :
RS485
Customized :
Support
Product Name :
4-20mA Remote IO Module
Description

4-20mA Remote IO Module Modbus RS485 Converter with Analog Input Ports

Parameters of Remote IO Module

DATASHEET
1

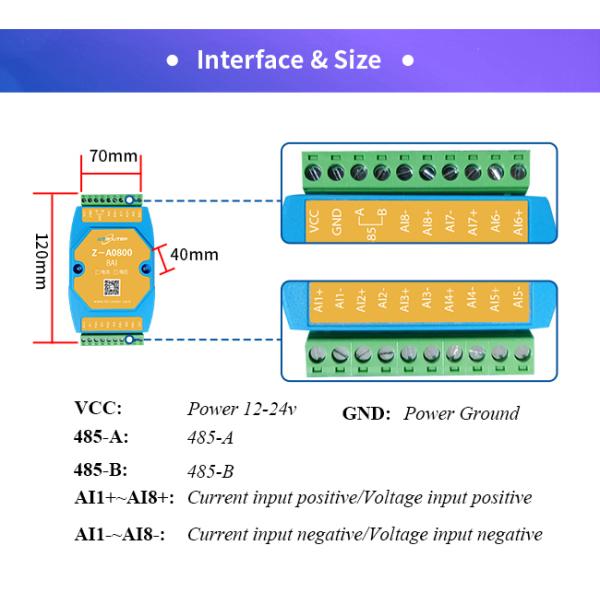

Module Size
120*70*40mm
2
Acquisition Channel
8 Channel Analog input(0-5V)(4-20mA)
3
Serial Interface
RS485
4
Supply Voltage
5 ~ 36V DC
5
Working Current
12V/50mA
6
Operating Temperature
-40℃~+65℃


Features of Remote IO Module

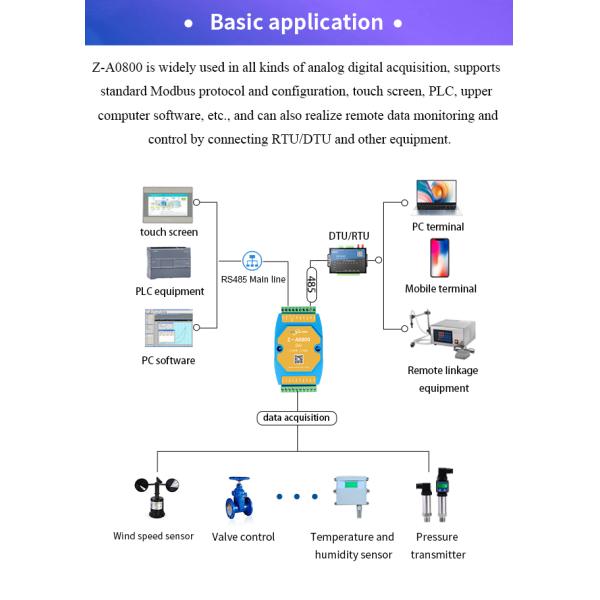

Modbus IO expansion module Z-A0800 supports standard modbus communication protocol and can provide more IO interfaces. This product provides 8 channels of analog input signal measurement, which can measure current, voltage and other 4-20mA, 0-10V output by the transmitter. The communication interface is one RS-485 port, DC9-36V power supply and anti-reverse Connection protection design.

FAQ

Q1: Are you a manufacturer or a trading company?
A1: We are the Manufacturer with years of R&D experience.
Q2: What about the delivery time?
A2: For regular order it takes about 3-6 days for production, for mass order or customized order it may need 15-30 days.
Q3: What is your delivery terms and payment terms?
A3: We accept EXW, FOB, CFR, CIF, etc. You can choose the one which is the most convenient or cost effective for you.
Q4: After service and warranty?
A4: We provide 1 year warranty, if you have any problems in the use of products, please contact to your sales person.
Q5. How can we know the product quality?
A5: We have professional QA and QC teams, 100% quality inspection is performed before the goods out of the factory.
Q6:Can I have a small order? what's ur MOQ?
A6: Welcome to order sample to test and check quality. MOQ is 1 for normal item.

4-20mA Remote IO Module Modbus RS485 Converter with Analog Input Ports
4-20mA Remote IO Module Modbus RS485 Converter with Analog Input Ports
4-20mA Remote IO Module Modbus RS485 Converter with Analog Input Ports
4-20mA Remote IO Module Modbus RS485 Converter with Analog Input Ports
4-20mA Remote IO Module Modbus RS485 Converter with Analog Input Ports
