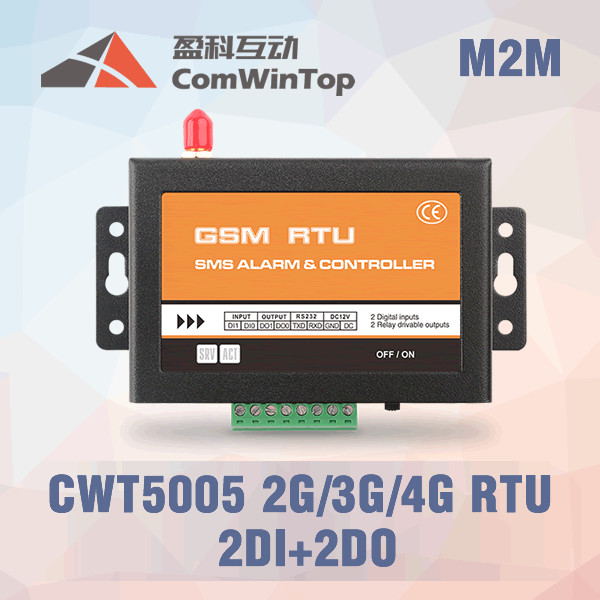

gsm sms rtu unit, gsm sms remote I/O controller

System Feature

• Industrial NXP 32-bit ARM MCU
• Double watchdog to ensure stability
• With signal filtering mechanisms
• Stable reconnection strategy for data transmit
• Synchronize clock with multiple way, Sms, NTP, CwtIO Server
• Automatically execute preset task by schedule(second, minute, day, week, month)
• Event-based linkage programming, e.g. alarm linkage output
• Provide configure software, visual programming, over 100 parameters can be set
• Optional exterior rechargable battery for 8-20 hours working when power lost

DI feature

• Monitor dry contact(NO or NC)

DO(T) feature

• Transistor output(drive voltage=power supply voltage, Drive current≤500mA)
• on/off/pulse DO by remote control or local event
• Remain down status when power lost

DO(K) feature

• Relay NO output(load: 2A / 125VAC,220VDC)
• DO can be activated by remote or local schedule
• Remember status when power lost

AI feature

• Standard 4-20mA (option: 0-5V) signal in, Sampling frequency: 33Hz, 10-bit precision)
• Convert signal to actual measure value,support adjustment
• Can set parameters for value processing, alarm, data transmission
• Detect connect or disconnect to alarm

SMS feature

• Support 10 cell phone numbers for alarm and control
• Sms alarm when any IO channel triggered or out of preset normal range
• Customizable sms messages, like alarm, receove, report
• Can send sms command to request any channel status or value
• Control output via sms command
• Configurable schedule for sms report IO channel's status or value
• Remote setting via sms commands
• Sms remind for sim card overdue
• Sms alar for power lost and recover

Wireless network communication

• With 2g, 3g, 4g, Wi-Fi version
• Support TCP/IP two-way communication with Max.4 servers(IP or domain)
• Events(e.g. alarm, timer) trigger upload data
• Communicate with server by optional Cwt_IO, Modbus TCP, http post protocol
• Can forward data between wireless network with RS485 or RS232
