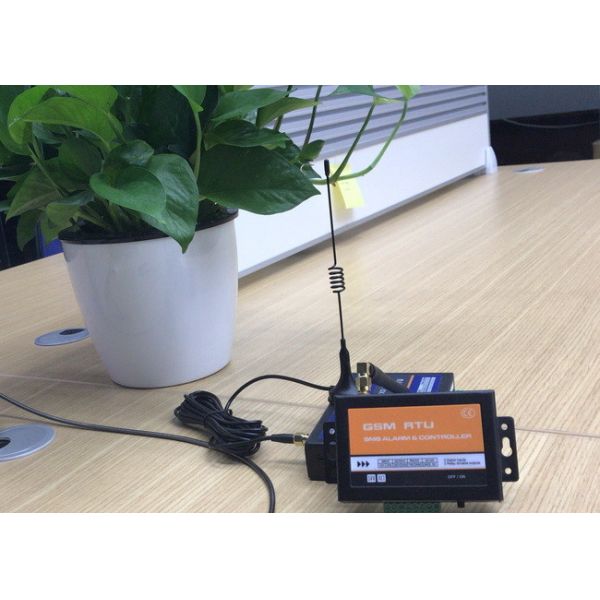

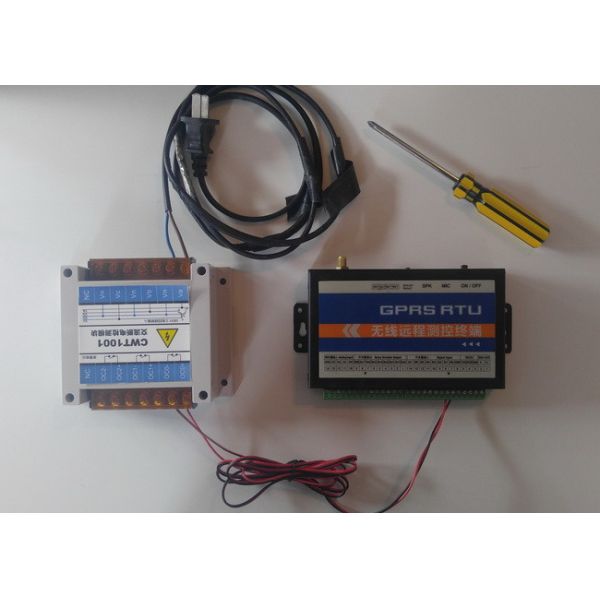

M2M 3G 4G gateway, wireless M2M device for automation application

System Feature

• Industrial NXP 32-bit ARM MCU
• Double watchdog to ensure stability
• With signal filtering mechanisms
• Support automatic network reconnection and data re-send
• Automatically or manually update interior clock by sms or NTP or server
• Can set multiple timers(second, minute, day, week, month) to execute actions, e.g. output, upload data, change setting
• Support Interlock programming, Event trigger
• Provide configure software, visual programming, over 100 parameters can be set
• Optional inside lithium battery for power lost alarm and keep 8-20 hours working

DI feature

• Trigger dry contact(NO or NC)

DO(T) feature

• Relay drivable output(drive voltage=power supply voltage, Drive current≤500mA)
• Remote or local event activate DO on/off/pulse
• Remember status when power lost

DO(K) feature

• Relay NO output(load: 2A / 125VAC,220VDC)
• Remote or local event activate DO on/off/pulse
• Status memory function for power lost

AI feature

• 4-20mA (option: 0-5V) in, Sampling frequency: 33Hz, 10-bit precision)
• Transduce 4-20mA(0-5V) to actual value
• Configurable parameters for signal acquisition, alarm, data communication
• Sensor disconnect alarm

SMS feature

• Can add 10 administrator numbers for alarm and remote control
• Sms alarm when any IO channel triggered or out of preset normal range
• All alarm and recover sms text can be edited
• Remote get device status or value by sending sms command
• Activate output by sending sms
• Configurable schedule for sms report IO channel's status or value
• Remote setting via sms commands
• Sms remind for sim card overdue
• Power lost and recover alarm by sending sms
• Wireless network communication
• With 2g, 3g, 4g, Wi-Fi version
• TCP/IP connect at most 4 servers(support Static IP address or domain)
• Events(e.g. alarm, timer) trigger upload data
• Support http post, Modbus TCP, CWT protocol over cellular or Wi-Fi
• Support two-way data transparent transmission with RS485 or RS232

Modbus feature

• Can be modbus master read/write salve over RS485
• Can be a I O module to be read/write by modbus master
• Run Modbus RTU or TCP protocol over GPRS/3G

TI feature

• Option temperature probe or temperature&humidity probe, support alarm, interlock, data communication
• Fahrenheit or centigrade units for temperature
• Detect probe connect or disconnect to alarm
