2018 Newly Arrived Industrial IOT Automation and Gateway Products

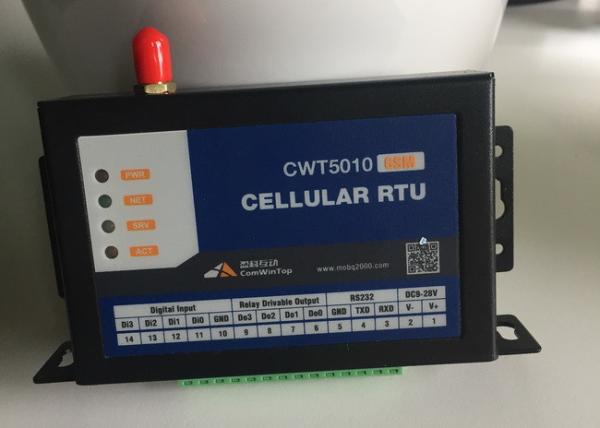

CWT5010 RTU with 4 DI, 4 DO, RS232 standard electrical interface can connect various industrial equipment, such as PLC, meters, sensors, electrical switches.

System Feature

• Industrial NXP 32-bit ARM MCU
• Double watchdog to ensure stability
• Support signal fileter
• Network-reconnect and retransmission to ensure data accurately transmit
• Automatically or manually update interior clock by sms or NTP or server
• Automatically execute preset task by schedule(second, minute, day, week, month)
• Can automatically execute tasks according to preset Events
• Provide console utility for visual programming over 100 parameters
• Optional exterior rechargable battery for 8-20 hours working when power lost

DI feature

• Accept NO or NC dry contact

DO(T) feature

• Transistor output(drive voltage=power supply voltage, Drive current≤500mA)
• DO can be activated by remote or local schedule
• Remain down status when power lost

DO(K) feature

• Relay NO output(load: 2A / 125VAC,220VDC)
• Remote or local event activate DO on/off/pulse
• Status memory function for power lost

AI feature

• Standard 4-20mA (option: 0-5V) signal in, Sampling frequency: 33Hz, 10-bit precision)
• Transduce 4-20mA(0-5V) to actual value
• Configurable parameters for signal acquisition, alarm, data communication
• Signal lost alarm

SMS feature

• Preset 10 phone numbers (support distribute authority to receive sms)
• Send sms alarm when input is triggered or reach alarm level
• Editable alarm and recover sms with time stamp
• Query any IO channel’s status or value via sms command
• Activate output by sending sms
• Can set interval to report IO channel's status or value by sms
• Remote setting via sms commands
• Sms remind for sim card overdue
• Support power lost sms alarm and recover sms(works with inside battery)

Wireless network communication

• Option network: cellular(2g/3g/4g) or Wi-Fi
• Support TCP/IP two-way communication with Max.4 servers(IP or domain)
• Events(e.g. alarm, timer) trigger upload data
• Communicate with server by optional Cwt_IO, Modbus TCP, http post protocol
• Can forward data between wireless network with RS485 or RS232
