13.56MHz Desktop RFID Reader Support EMI Detection Wear - Resisting Surface
13.56MHz Desktop RFID Reader Support EMI Detection Wear - Resisting Surface
Specifications
Brand Name :
Andea Electronics
Model Number :
TPAD20M
Pla of Origin :
CHINA
MOQ :
1 Piece
Pri :
Negotiable
Payment Terms :
T/T, Western Union, Paypal
Supply Ability :
500~1000 Sets Per Month
Delivery Time :
3~5 work days
Packaging Details :
Standard Export Carton, Foam and Protective Film
Place of Origin :
CHINA
Compatible Protocols :
ISO 15693 and ISO 18000-3M1
Reading Range :
35cm
Misreading Range :
≤6cm
RF Power :
0.25-1.5W
Host And Scan Mode :
Support
Housing Material :
PCB and Metal Plate
Description
13.56MHz Desktop RFID Reader Support EMI Detection As Workstation

Product Introduction:

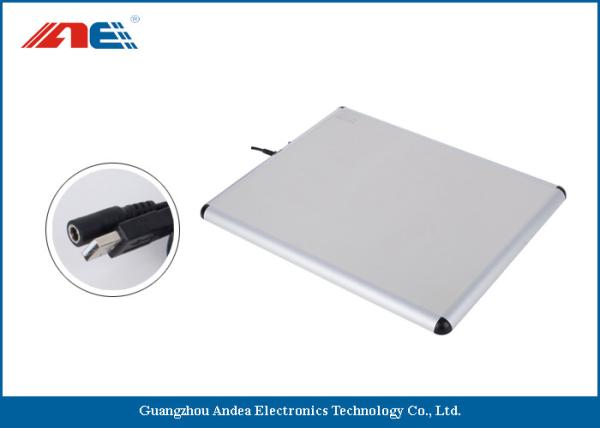

TPAD20M is integrated with reader and antenna together, which is also shielded design to support working normally in metal surrounding environment. Its working frequency is 13.56MHz based on ISO 15693 and ISO18000-3M1 protocols. Perfect reading range is up to 35cm with anti-collision algorithm. Also, because of its metal package edge design, its misreading is cut down to less than 6cm.

Its wear-resisting surface makes it durable and nice even using for long time. USB communication interface is convenient to link with computer to control. And we designed a power switch at the short side of the reader, when not using, you could turn off the reader easily.

There are three sizes of this series and this model is the medium size one.

Product Features:

  • Operating Frequency: 13.56 MHz
  • Support ISO 15693 and ISO 18000-3M1 protocols
  • Reading Range: 35cm (The range is also related to the tag performance)
  • RF Power 0.25-1.5W
  • Integrated design with reader and antenna
  • Metal shielded design to work normally even it is plad on the metal desktop
  • Quick anti-collision algorithm, identify speed can be up to 50 tags per second
  • Support EMI (electromagnetic interference) detection
  • Support host and scan work mode (Setup through software)
  • Be capable of automatically turning off RF when at task idle

Technical Specification
Model TPAD20M
Operating Frequency 13.56 MHz
Compatible Protocols ISO 15693 / ISO 18000-3M1
RF Power 0.25-1.5W
Communication Interface USB (Support VSP or HID)
Reading Range 35cm
Misreading Range ≤6cm
Working Voltage DC 12V
Max Power Consumption 3.5W

Metal Shielded Design

Support
EMI Detection Support
Housing Material PCB and Metal Plate
Dimension 380*290*21mm
Weight 2500g

13.56MHz Desktop RFID Reader Support EMI Detection Wear - Resisting Surface


Product Application:

RFID library management, RFID archive management, RFID jewelry management, RFID drug administration, RFID shop settlement, Self Service Kiosk, etc.
