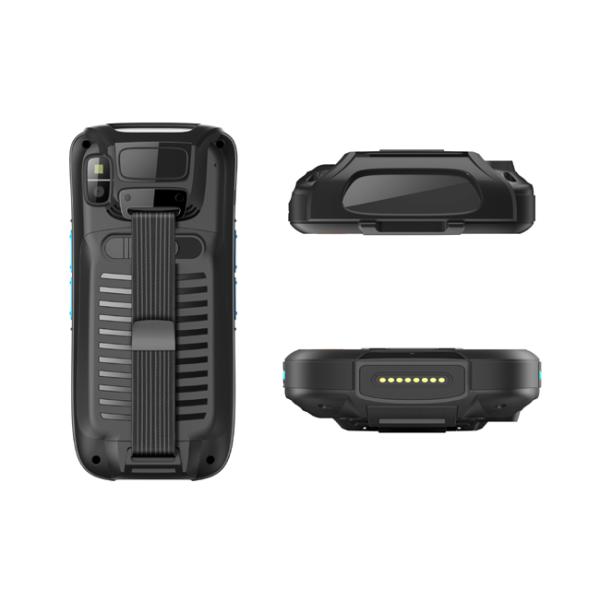

Micro SD Card Support Smart PDA , Non-contact Anti Collision HF RFID Card Reader
Micro SD Card Support Smart PDA , Non-contact Anti Collision HF RFID Card Reader
Specifications
Brand Name :
Andea Electronics
Model Number :
AH2201
Pla of Origin :
CHINA
MOQ :
1 Piece
Pri :
Negotiable
Payment Terms :
T/T, Western Union, Paypal
Supply Ability :
500~1000 Sets Per Month
Delivery Time :
3~5 work days
Packaging Details :
Standard Export Carton, Foam and Protective Film
Place of Origin :
CHINA
CPU :
Cortex A9 1.2GHZ (dual core)
RAM :
1GB
ROM :
4GB
Compatible Protocols :
ISO 15693 and ISO 18000-3M1
Reading Range :
28cm
Anti-collision Algorithm :
Support
Description
HF RFID Handheld Terminal With Android 7.0 System RF Power 0.25 - 1.5W

Product Introduction:

AH2201 HF RFID handheld terminal is an industrial grade RFID mobile terminal, which supports Android 4.4.2 operating system. It is integrated with Andea's high performance meduim power RFID reader module, reading range up to 28cm (standard RFID card). Due to its anti-collision algorithm and 1.5W radio frequency power, it is possible to identify 50 Pieces per second. Long time working as it has a 5200mAh lithium polymer battery, which makes it reliable for outdoor using.

Product Features:

  • Integrated with Android 7.0 operating system
  • 13.56 MHz operating frequency
  • Support ISO15693 and ISO18000-3 protocols
  • RF Power is configurable from 0.25W to 1.5W
  • Support anti-collision algorithm
  • There are several wireless communication ways for choice: Bluetooth, WIFI, GPRS (for option), WCDMA (for option)
  • Use a 5200mAh lithium polymer battery
  • Provide free software development kit and testing software, these could send in advance for chekcing

Technical Specification
Operating System Android 7.0
CPU Cortex A9 1.2GHZ (dual core)
RAM / ROM RAM: 1GB ROM: 4GB
Display 4.0inch IPS panel, Resolution:480*800,HD full viewing angle, viewable under sunshine
Keyboard Number keyboard and function keyboard
Touch Screen Support multi-point capacitive touch screen, workable with glove
Micro SD card Support 32G MICRO SD card
Audio Support voice announment
Wireless Communication

GPRS

 GPRS, EDGE, 4-band 900/1800, 850/1900
4G

WIFI

 Meet IEEE 802.11b/g
Bluetooth Meet Bluetooth 4.0
Indicator Light Internet indicator light, charging indicator light
Battery Capacity 5200mAh lithium polymer
Stand-by Time When fully charged, close wireless communication functions and stand-by time is 200h and above
Operating Time ＞6h
Charging Time ＜4h
RFID Parameters
Compatible Protocol ISO 15693
Operating Frequency 13.56 MHz
RF Power 0.25-1.5W
Reading Range 28cm (standard RFID card)
Anti-collision Algorithm Support
Working Environment
Operating Temperature -10℃~70℃
Storage Temperature -20℃~85℃
Relative Humility 10%~90% RH, no condense
Physical Parameters
Gross Weight <320g
Dimension 160*76*32 ± 2mm

Micro SD Card Support Smart PDA , Non-contact Anti Collision HF RFID Card Reader

Product Application:

Due to its easy operating and long distance reading range, it could be widely used for RFID ticket identification, assets management, warehouse inventory, etc.
