Embedded HF RFID Reader Writer ISO15693 ISO14443A / B ISO18000-3M3 and NFC
Embedded HF RFID Reader Writer ISO15693 ISO14443A / B ISO18000-3M3 and NFC
Specifications
Brand Name :
Andea Electronics
Model Number :
RL866
Pla of Origin :
CHINA
MOQ :
1 Piece
Pri :
Negotiable
Payment Terms :
T/T, Western Union, Paypal
Supply Ability :
500~1000 Sets Per Month
Delivery Time :
3~5 work days
Packaging Details :
Standard Export Carton, Foam and Protective Film
Place of Origin :
CHINA
Working Frequency :
13.56 MHz
Communication Interface :
USB & RS232
Keyboard Emulation :
Support
Anti-collision Algorithm :
Support
Power Supply :
DC 5V
Weight :
130g
Description

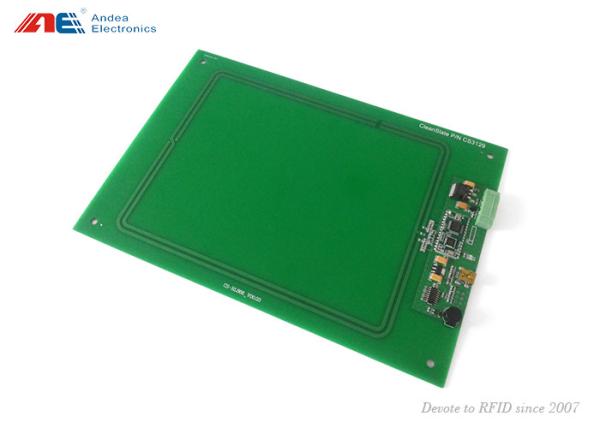

Embedded HF PCB RFID Reader Writer ISO15693 ISO14443A/B ISO18000-3M3 and NFC

Product Introduction:

RL866 is a built-in design HF reader writer which support multiple protocols ISO15693, ISO14443A/B, ISO18000-3M3 and NFC. For its slim body, it could be easily embedded in those device which needs to integrate RFID technology.

Due to its common USB and RS232 communication interface, the host computer can exchange data with this device smoothly and it helps to cut down the engineer's development work. Working voltage is DC 5V and it is a cost-efficient USB interface plug and play RFID reader with integrated Keyboard Emulation (KEMU). It supports to read multiple tags at one scan for the anti-collision algorithm. This reader already passed and FCC certification which is popular in America and European market.

Product Features:

  • Support multiple protocols ISO15693, ISO14443A/B, ISO18000-3M3 and NFC

  • USB interface plug and play

  • Integrated keyboard emulation (KEMU) function

  • All-in-one embedded RFID reader writer

  • MIFARE S50/S70 RFID reader writer

  • ICODE SLI/SLIX/SLIX2 RFID reader writer

  • ICODE ILT Series RFID reader writer

  • NFC Forum Tag RFID reader writer

Technical Specification
Model RL866
Operating Frequency 13.56 MHz
Compatible Protocols ISO 15693, ISO 14443A/B, ISO 18000-3M3
Compatible Tags
  • NFC Forum Type 1: Innovision Topaz512
  • NFC Forum Type 2: Mifare Ultralight, Mifare Ultralight C, Mifare Ultralight EV1, NTAG21x.
  • NFC Forum Type 3: Sony Felica [only support Polling]
  • NFC Forum Type 4: Mifare DESFire EV1
  • NFC Forum Type 5: ICODE SLI ,ICODE SLIX ,ICODE SLIX2 ,Tag-it HF- I plus
  • Mifare Classic Type: Mifare S50, Mifare S70 ,Mifare Mini
  • ISO18000-3M3 Type: ICODE ILT
  • ST ISO14443B Type: SRIX4K, SRI512, ST25TB512-AC
Communication Interface USB & RS232
Reading Range ISO 15693 28cm
ISO 14443A 15cm
ISO 18000-3M3 20cm
Plug & Play Support
Keyboard Emulation Support
Anti-collision Algorithm Support
Working Voltage DC 5V (USB Power Supply)
Max Power Consumption 1.7W
Material PCB
Dimension 250*170mm
Weight 130g

Product Application:

Being embedded in device needs to integrate with RFID technology.

Embedded HF RFID Reader Writer ISO15693 ISO14443A / B ISO18000-3M3 and NFC
