Hardware

Description

Craftsmanship and Appearance

• Made of high-quality sheet metal with excellent craftsmanship
• Sprayed with environmental-friendly paint, durable and not easy to corrode
• Color: blue and white
• Bio-fit modular structure design, safe to use and easy to maintain

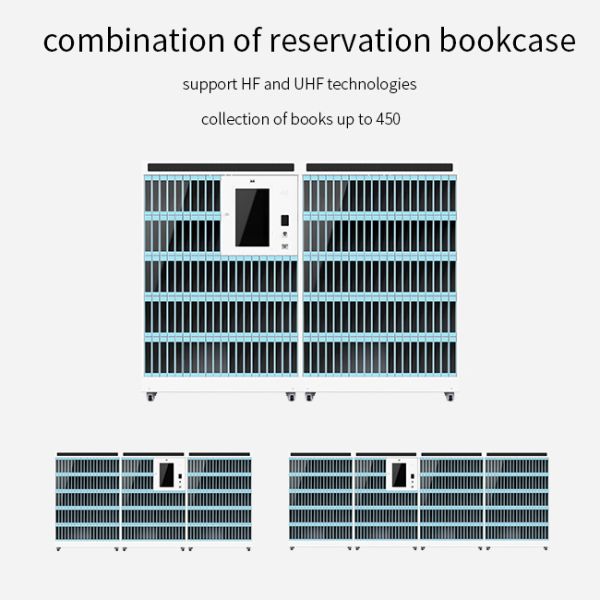

• Supports one main cabinet combined with multiple auxiliary cabinets. It can also be matched with the micro-book cabinet

Capacitive Touch Display

• Embedded industrial display screen of high sensitivity
• High temperature resistant, shockproof and explosion-proof
• 21.5 " TFT LCD panel 1920*1080 HD resolution 16:9
• Brightness: 250cd/m²
• 10-point touch Resolution: 4096x4096
• Respond Speed: less than 10ms
• Able to be used for over 50 million times
• Surfa Hardness: 7H
• 1 VGA port, 1 HDMI port

Industrial Host Computer

(Android / Windows)

Android:

Uses Rockchips Chip, ensuring low power consumption and high performance

28nm HKMG, quad-core processor Cortex-A17, RK3288 motherboard

2GB Storage8GB flash 3*RS232 1*RS485 4*USB EthernetWiFiBluetooth

Able to operate at -20~60℃

Android 7.1

Optional 4G full Netcom module

Windows:

• Using a new generation of processor with high-speed chipset, ensuring low power consumption and high performance
• 3C and certification
• Able to operate at -20~60℃
• Win10 system, Intel-i3-6th generation CPU, 8G memory, 128G solid-state hard drive, with WiFi, 4G optional, configuration can also be customized according to needs

Reader Card Identification Area

• HF Multiple-Protocols Reader RL86S(Serial Port): Complied with Reader Card of ISO15693, ISO14443-A and ISO14443-B (UID only)
• Dimension of Reading Area: 55*60*25mm

Books Identification Area

• Complied with ISO15693 standards
• RF Power: 1~8W
• 5 layers of bookshelf, with 5 built-in antennas for each layer.
• Net width per layer: 60mm approximately, 1~3 books can be plad in

Smart Bookshlef Antenna

• 5 floors of smart bookshelf antenna.

Electric-Control Lock (with Lock Control Board)

• Each floor has an independent built-in electric control lock to control the door opening individually.
• 5 floors in total, each floor has a maximum of 18 lls; the main cabinet has a total of 74 lls, and the auxiliary cabinet has a total of 90 lls.
• Supporting emergent unlocking function. Momentary power-on time of unlocking is less than 1 second.
• Does not consume electricity when the door is closed and locked.

Power Module

• Input: 200-240V
• Output: 12V 29A
• Power: 350W
• 3C and certificated
• Able to operate at -30~70℃
• Able to withstand 300VAC input surge voltage for 5s
• Protection for output short circuit, over current, over voltage, over temperature

Device Interface

• 3C certificated power interface module
• RJ45 interface

Audio

• LCD TV cabinet speaker
• Dual speakers and diaphragm with clear sound

Face Recognition Camera

(Monocular)

• 1/2.7 CMOS
• Definition: 1920*1080 1280*720 640*480 640*360 320*240
• Automatic white balan
• Backlight compensation: 2 million pixels
• Transmission rate: 480MB/S

On/off Timer

• Time controller to switch on/off the machine on time

Leakage Protection

• Using Chint Leakage Protection Module 16A/2P with 3C rtification, providing protection for overloadleakageshort circuit and ensuring the safety of the book cabinet

1D and 2D Scanning Module

• 5V / USB Interface
• Light sour: 5600K LEDs (illumination)
• Image sensor 752pixels(H)*480 pixels(V)
• Prossor: ARM32-bit
• Resolution: ≥4mil/0.1mm@PCS90%
• Decoding depth of field: 0-10CM
• Reading angle Roll: 0-360°, Pitch:±65°or
• Ambient light resistan: 100000Lux

Fingerprint Reader

• Imaging Technology: Capacitive reflective imaging
• Antistatic Index: ±15KV
• Fingerprint Image Entry Time: <1 second
• Recognition rate ≤0.0001% (safety level adjustable)
• Built-in fingerprint template library, which will not be lost after the devicece is powered off
• Communication interfa: USB
• TTL
• Anti-electromagnetic interferen meets the International Electrotechnical Commission IEC61000-4-3 standard
• Operating Temperature: -10~60℃

Network Monitoring

• Hikvision 4-port network monitoring host
• 2T hard disk storage
• 2 hemispherical explosion-proof 1.3 million cameras

LED Display Screen

• 3.75 surfa mount single red half board with control board
• Serial port control

Light Control Module and Lighting Disinfection

• Serial light control motherboard
• Standard 12V high-brightness lighting strip
• 12V ultraviolet disinfection strip is optional
