Hello thank you to choose our 2 Channel Stereo Audio Monitor Unit AM-200

2 Channel Stereo Audio Monitor Unit, each channel has 4 inputs

it is widely used in different industry

it is used very convenient , and have very high quality .

1. Input Switch

Am-200 has two independent audio channels – Channel A and Channel B. When AM-200 using as stereo monitor, Channel A and Channel works as left sound track and right sound track. Each Channel has four inputs. Input Switch is used to select specified input. Channel A and Channel B are individually operation.

2. Listen Level Control

Adjust listen level of Channel A and Channel B individually.

3. Audio Level LED Light beam

Indicate audio level of Channel A and Channel B.

4. Monitor Earphone Connector

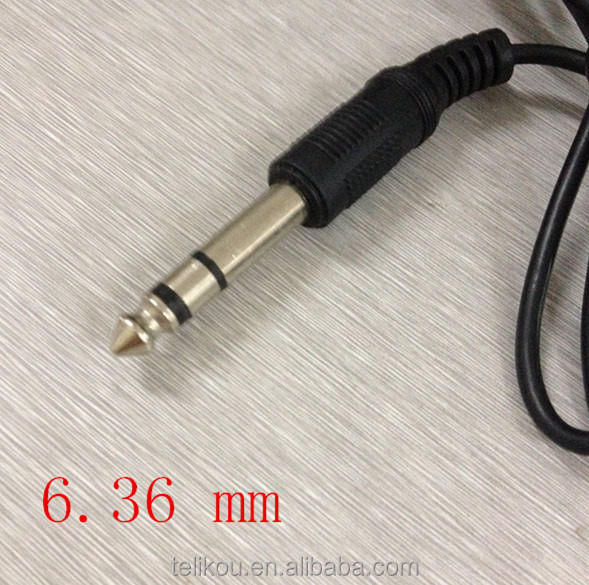

Ø6.35mm monitor earphone connector. When monitor earphone working, panel speaker interrupted. Earphone plug definition as follow:

S - Common

T - Left sound track (Channel A)

R - Right sound track (Channel B)

5. Power Switch

The Power Switch can be used to turn AC power to the AM-200 on or off.

6. Power Light

Switch power on. The green power lights on.

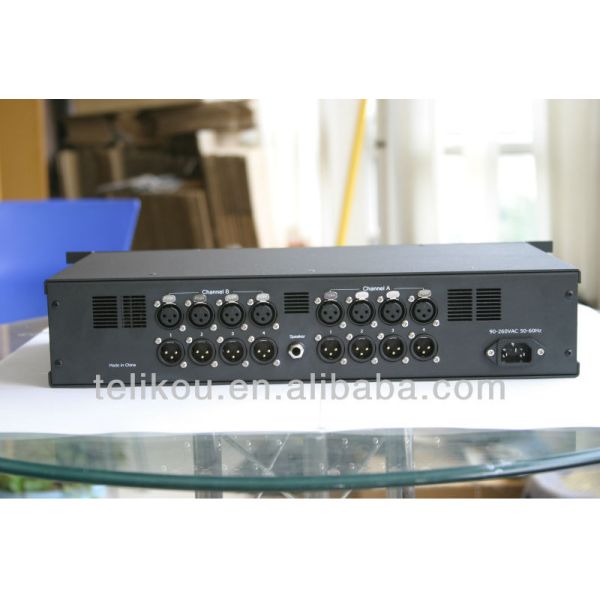

7. Audio Input

Four channels balanced audio input, each channel has one inner paralleled XLR-3M and XLR-3F. XLR-3 definition as follow:

1 - Common

2 – Audio+

3 - Audio-

8. External Speaker Connector

Ø6.35mm external speaker connector. External speaker does not interrupted panel speaker or monitor earphone. External speaker plug definition as follow:

S - Common

T – Left sound track (Channel A)

R – Right sound track (Channel B)

9. AC Power Connector

Input 90V-260V, 50-60Hz AC, and the power consumption is less than 30VA.

II. Technique Specification

Non distortion max output: 8W + 8W

Distortion:<0.1%(1000Hz)

Bandwidth:40Hz-15000Hz ±1dB

Signal to noise ratio:>84dB

Input: balanced, XLR-3M/XLR-3F connector

1 - Common

2 - Audio+

3 - Audio-

Independence:>100Kohm

advantages:

1)any kind of express you want

2)packing as customer's requirement
3)reasonable price with high quality
4)OEM is welcome, pls feel free to contact with us, I will try my best to let you know more about our product.
5) a trial order or samle orders are also welcomed
7)Excellent after sale service

Payment
You can pay us through T/T, paypal,or Western Union
Price term: FOB beijing
Full payment should be made before we send goods to you
The customer don't have to responsible for any tax or bank charges by their countries.

welcome to contact us!

About us:

TELIKOU Technologies Co., LTD established in 2002.
It is experienced in providing cost-effective and professional solutions of audio, video equipments and ODM.
Products have been used widely all over the world.
TELIKOU Technologies Co., LTD has developed a variety of products,
like: Intercom / Talk Back System (TBS) Teleprompter LED Light Audio equipment , all of our products are design by our won engineer and was products one by one by our worker , so we have the best price and since we do this business for almost 15 years , so we skillful in this field , so all of our products have the high quality , welcome
to contact us!
