8.0mm Steel Metal Cable Gland PG7 Waterproof Screw Connector
8.0mm Steel Metal Cable Gland PG7 Waterproof Screw Connector
8.0mm Steel Metal Cable Gland PG7 Waterproof Screw Connector
8.0mm Steel Metal Cable Gland PG7 Waterproof Screw Connector
Specifications
Brand Name :
HYFD
Model Number :
PG7
Certification :
IP68
Place of Origin :
Guangdong, China
MOQ :
200/500
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
10000 pcs per day
Delivery Time :
5~12 days as per order quantities
Packaging Details :
Carton
Color :
Black
Protection Level :
IP68
Material :
PA66
Contact Resistance :
≤5mΩ
Wire OD :
8.0mm
Pin Material :
Brass
Finish :
Nickel
Description

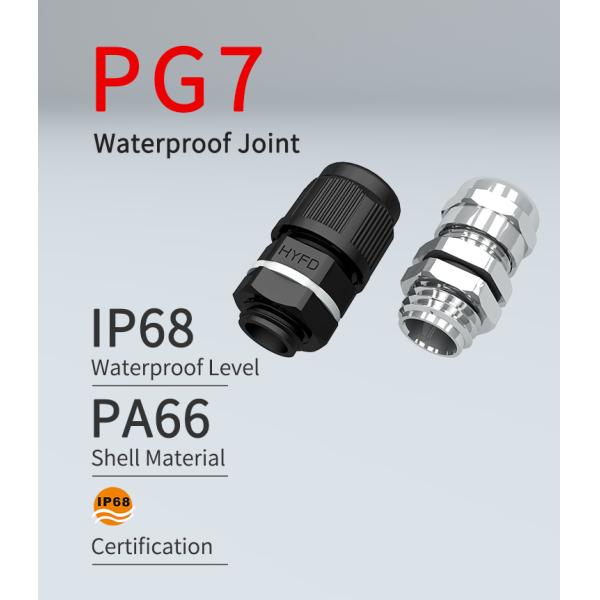

PG7 Steel Metal Electrical Cable Gland Connector IP68 Waterproof Screw Connector

Introduction:

1) Material: Nylon or Nickel-Plated Brass optional.

2) Gasket: rubber.

3) Rubber ring for seal: silicone.

4) Screw type connection.

5) IP68 waterproof level.

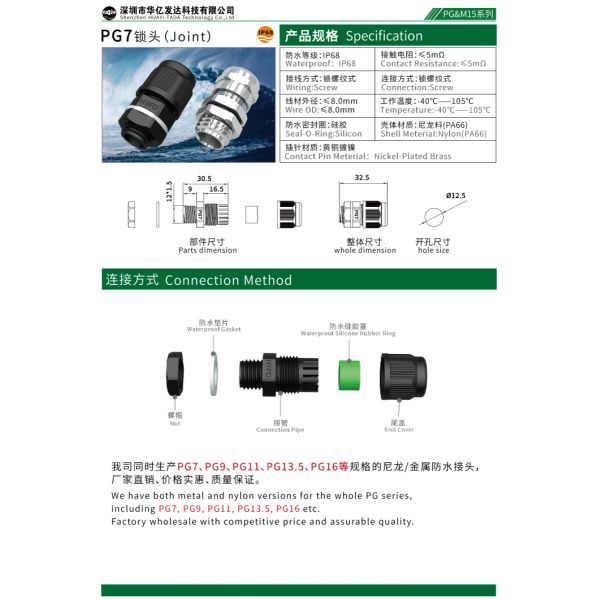

Product Parameters

Item name PG7 cable gland waterproof connector Connecting code Screw assembly
Current rating 10A Operating temperature -40℃~105℃
Operating voltage 250V Wire OD ≤8.0mm
Mechanical life 1500 mating cycles Waterproof level IP68
Contact resistance ≤5mΩ Material

Nylon (PA66)/Nickel-Plated Brass


WHY US?


Our advantages:
•Rich experience: over 12 years.
•Free samples available.
•Professional design team.
•High quality & reasonable price.
•Low MOQ: small orders are welcome.
•Short lead time: 2~3 weeks after orders.
•OEM, ODM available.

100% Guarantee Qualtiy

•Manufactured Under Strict Control

•OEM supplier for Anphenol, Philips (Signify), OSRAM for over 7 Years

•100% Tested (Not Just Batch Tested)

•Quality Guarantee: 3 Years

FAQ

Q: Do you have certification for your connectors?
A: Yes, we have UL/TUV/CQC/IP68 certificates for this PGT2 connector.

Q: How does your factory control the quality?
A: We have already established a full set of quality control system. All of our products has been tested twice or even three times and 100% inspected before delivery out.


Q: Can I get some samples for testing before further orders?
A: Certainly, we are happy to offer you samples as per your request. As the old saying goes: To see if to believe, we believe you will be satisfied with our products.

Q: What is the packing?
A: Well, we pack it in neutral cartons or as your requirements.

8.0mm Steel Metal Cable Gland PG7 Waterproof Screw Connector8.0mm Steel Metal Cable Gland PG7 Waterproof Screw Connector
