1. Product Introduction

1) M16 circular assembly connector with male female parts.

2) 2 pin, 3 pin, 4 pin, 5 pin, 6 pin, 7 pin, 8 pin, 2+3 pin, 2+4 pin available for option.

3) Mini size with bayonet lock, quick and easy.

2. Product Parameter

3. Product Features and Application

Features:

● Multiply pin optional.

● Solder type termination to ensure stability.

● Mini size with bayonet lock, quick and easy.

● Removable design, the connector can be taken down into different components.

● Male female assembly parts, with tightly matched nylon material tube, nut to protect against dust and water.

● Flexibility of connection, can be used for wire-to wire connection, choose proper grommets according to the wire OD you will use.

Application:

● Used for LED Strips, LED Wall-washers, LED Underground Light, LED Rope Light, LED Belt Light, Curtain Light, Twinkle Light and so on.

● Easily connected to proximity switch, flow monitoring devices and field bus components sensor devices and actuator devices.

● IP68 connector for led light meets all the requirements of sensor devices and actuator devices for automation application.

● 100% new material, high-quality parts, strictly QC standard according to international customs.

4. Benefits And Advantages

Benefits:

Improve the production process;

Simplifies the assembly process of electronic products;

Simplifies the mass production process;

Easy to repair

If an electronic component fails, the failed component can be quickly replaced when the connector is installed;

Increase design flexibility

The use of connectors gives engineers greater flexibility when designing and integrating new products, and when using components to form systems.

Our advantages:

1) Over 12 years experience.

2) Free samples: 5 pcs for each part number.

3) Small orders are welcome.

4) Strong professional design team.

5) OED/ ODM service as per customers' requirement.

6) Prompt delivery: 7~15 working days after order confirmation.

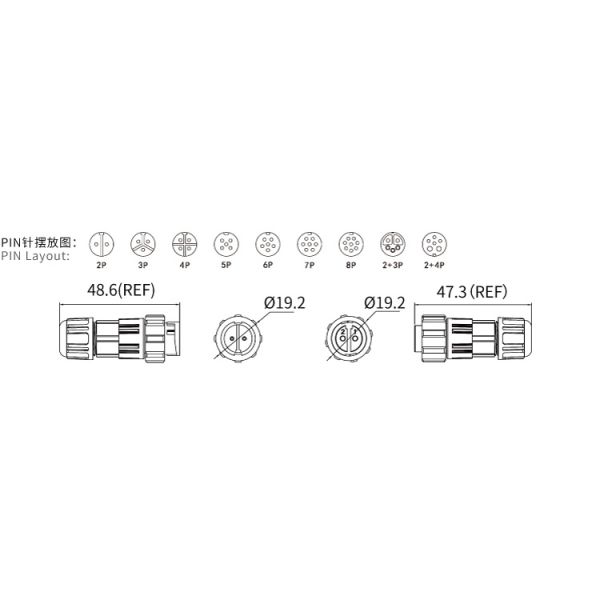

4. Product Details

Connection:

5. FAQ

Q: Do you provide samples? Is it free or extra?

A: Yes, we could offer the sample for free charge but the freight costs will be paid by you.

Q: How long is your delivery time?

A: 1~3 days for samples, 5~10 business days for mass production, depending on specific order.

Q: How does your factory control the quality?
A: We have already established a full set of quality control system. All of our products has been tested twice or even three times and 100% inspected before delivery out.

Q: What is your terms of payment?
A: T/T full payment in advance for order qty less than 3000 sets.

For order qty over 3000 sets, T/T 30% as deposit, and rest before delivery.

We'll show you the photos of the products and packages before you pay the balance.
