Leadtek WinFast GS2040T Nvidia GPU Server Dual Port 10GbE
Leadtek WinFast GS2040T Nvidia GPU Server Dual Port 10GbE
Leadtek WinFast GS2040T Nvidia GPU Server Dual Port 10GbE
Leadtek WinFast GS2040T Nvidia GPU Server Dual Port 10GbE
Specifications
Brand Name :
Leadtek
Model Number :
WinFast GS2040T
Place of Origin :
China
MOQ :
1
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
To be discussed
Delivery Time :
30-45 work days
NAME :
Leadtek WinFast GS2040T PC Workstation Server For AI Deep Learning 3D Rendering
Keyword :
Leadtek WinFast GS2040T PC Workstation Server For AI Deep Learning 3D Rendering
CPU :
Dual Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors Support CPU TDP 270W Up to 40 Cores
Memory Capacity :
16 DIMM slots Up to 4TB 3DS ECC DDR4-3200MH RDIMM/LRDIMM Supports Intel® Optane™ DCPMM
Memory Type :
3200/2933/2666MHz ECC DDR4 RDIMM/LRDIMM
Chipset :
Intel® C621A chipset
SATA :
SATA3 (6Gbps) with RAID 0, 1, 5, 10
Network Controllers :
Dual Port 10GbE from Intel X710
Height :
3.46"(88mm)
Width :
30.18"(766.8mm)
Weight :
Net Weight: 39.5 lbs (17.9 kg) Gross Weight: 54 lbs (24.5 kg)
Description

Leadtek WinFast GS2040T PC Workstation Server For AI Deep Learning 3D Rendering

NVIDIA Ampere Data Center

Deep Learning Workstation

WinFast GS2040T

WinFast GS2040T features a powerful GPU architecture that supports up to 6 double-width passive GPUs (NVIDIA® A100/A40/A30/A10) or 4 double-width active GPUs(NVIDIA® RTX A6000/A5000), enable scaling of performance in order to meet the demands of AI, high-performance computing, and 3D rendering applications.

Optimized for AI/Deep Learning GPU peering

Optimized for NVIDIA GRID

Supports up to 6 double-wide GPU cards

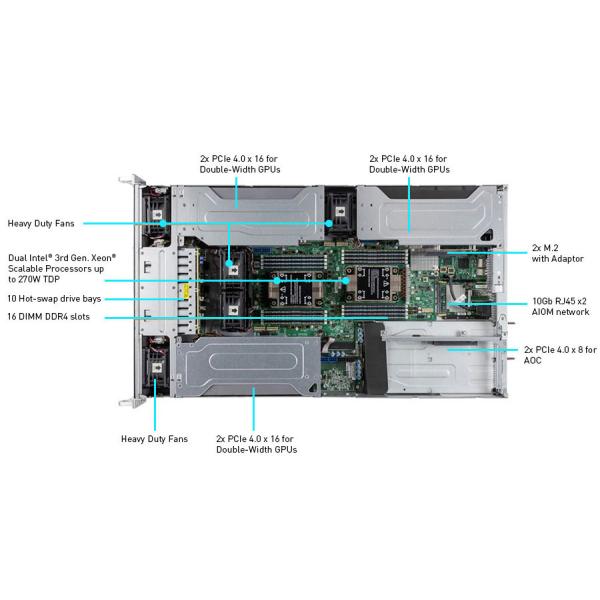

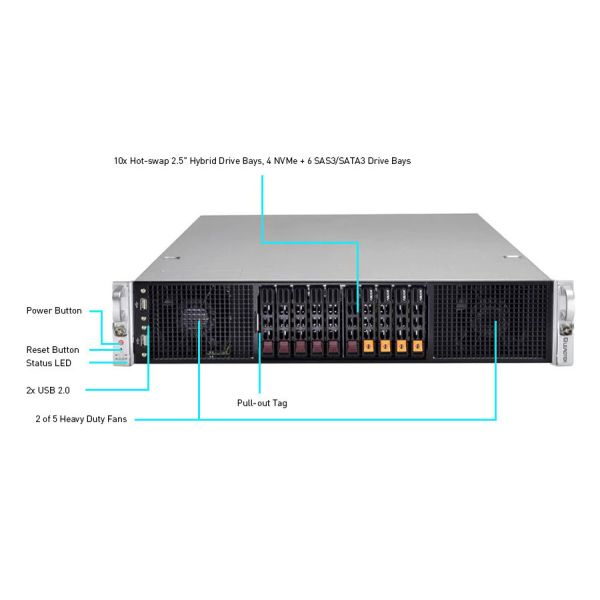

Key Features

Leadtek WinFast GS2040T Nvidia GPU Server Dual Port 10GbE

Dual Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable Processors

16 DIMMs; up to 4TB 3DS ECC DDR4-3200MHz RDIMM/LRDIMM,
Supports Intel® Optane™ DCPMM

6 PCI-E 4.0 x16 slots (FHFL),
2 PCI-E 4.0 x8 slot

Support up to 6 pcs of Double-width GPUs

Dual 10GBase-T LAN ports

10x 2.5" Hot-swap SATA/SAS drive bays, up to 6x 2.5" NVMe

5x 8cm heavy duty fans with optimal fan speed control

2600W (1+1) Redundant Power Supplies Titanium Level (96%)

WinFast GS2040T Specifications

Processor

CPU

Dual Socket P+ (LGA-4189)

3rd Gen Intel® Xeon® Scalable processors

Support CPU TDP 270W

Up to 40 Cores

System Memory

Memory Capacity 16 DIMM slots
Up to 4TB 3DS ECC DDR4-3200MH RDIMM/LRDIMM
Supports Intel® Optane™ DCPMM
Memory Type 3200/2933/2666MHz ECC DDR4 RDIMM/LRDIMM

On-Board Devices

Chipset Intel® C621A chipset
SATA SATA3 (6Gbps) with RAID 0, 1, 5, 10
Network Controllers Dual Port 10GbE from Intel X710

Input/Output

SATA 8 SATA3 (6Gbps) ports
LAN 2 RJ45 10GBase-T LAN ports
1 RJ45 Dedicated IPMI LAN port
USB 2 USB 3.0 ports (rear)
2 USB 2.0 ports (front)
Video 1 VGA Connector

Dimensions and Weight

Height 3.46"(88mm)
Width 17.35"(440.7mm)
Depth 30.18"(766.8mm)
Weight Net Weight: 39.5 lbs (17.9 kg)
Gross Weight: 54 lbs (24.5 kg)

Form Factor 2U Rackmountable with Rail kit

Expansion Slots

PCI-Express 6 PCI-E 4.0 x16 slots
2 PCI-E 4.0 x8 slots

System Cooling

Fans 5x 8cm Heavy duty fans with optimal fan speed control

Power Supply

Power 2600W 1U Redundant Power Supplies with PMBus
AC Input 2600W: 200-240Vac / 15A Max
DC Input 2600W: 200-240Vdc For CQC Only/ 15A Max / 50-60Hz
+12V Max: 216A / Min: 0A (11.4Vdc-12.6Vdc) (12V output)

Operating Environment

RoHS RoHS Compliant
Environmental Spec.

Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)

Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)

Operating Relative Humidity: 8% to 90% (non-condensing)

Non-operating Relative Humidity: 5% to 95% (non-condensing)

Leadtek WinFast GS2040T Nvidia GPU Server Dual Port 10GbELeadtek WinFast GS2040T Nvidia GPU Server Dual Port 10GbELeadtek WinFast GS2040T Nvidia GPU Server Dual Port 10GbE
