32GB Nvidia Jetson Agx Xavier Module For Deep Learning Board Industrial Carrier Board
32GB Nvidia Jetson Agx Xavier Module For Deep Learning Board Industrial Carrier Board
32GB Nvidia Jetson Agx Xavier Module For Deep Learning Board Industrial Carrier Board
32GB Nvidia Jetson Agx Xavier Module For Deep Learning Board Industrial Carrier Board
Specifications
Brand Name :
PLink
Model Number :
CB-2006
Place of Origin :
China
MOQ :
1pcs
Price :
USD580-USD600\PCS
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
1000PCS
Delivery Time :
15-30 work days
NAME :
Nvidia Jetson Agx Xavier Module For Deep Learning Board Industrial Carrier Board
Keyword :
Nvidia Jetson Agx Xavier Module For Deep Learning Board Industrial Carrier Board
GPU :
512-core NVIDIA Volta architecture GPU with 64 Tensor Cores
M.2 M KEY :
1*
CPU :
8-core Arm® Cortex®-A78AE v8.2 64-bit CPU 2MB L2 + 4MB L3
DL Accelerator :
1x GbE
Memory :
32GB 256-bit LPDDR4x 136.5GB/s
Power :
10W - 30W
USB :
2*
RJ45 :
2*
Description

Nvidia Jetson Agx Xavier Module For Deep Learning Board Industrial Carrier Board

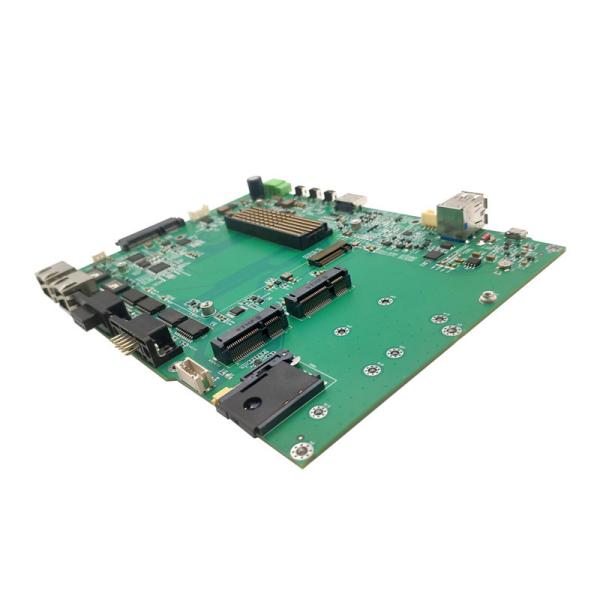

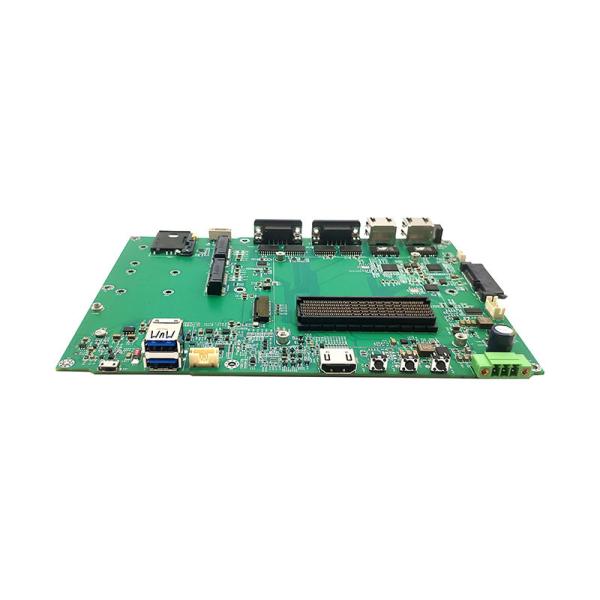

NVIDIA Jetson AGX Xavier Industrial Carrier Board CB-2006

The industrial carrier board CB-2006 based on NVIDIA Jetson AGX Xavier module, and the carrier board product by Plink-Ai,the NVIDIA Jetson AGX Xavier module makes AI-powered autonomous machines possible, delivering up to 32 TOPs. is used by professional developers to create breakthrough AI products across all industries, and by students and enthusiasts for hands-on AI learning and making amazing projects. and 750Gbps of high-speed I/O in a compact form factor,The industrial carrier board main for autonomous machines.

The carrier board CB-2006 interface

2.5KV Isolated CAN port

9~19V DC POWER IN
2.5KV Isolated Serial Port (RS232)
2 x USB3.0 w/ USB2.0
1x M.2 M-KEY
2 x GBE RJ45 Port
2 x F/S MiniPCIe w/ SIM holder

NVIDIA Jetson AGX Xavier Module Specifications

AI Performance 32 TOPs
GPU 512-core NVIDIA Volta architecture GPU with 64 Tensor Cores
CPU 8-core Arm® Cortex®-A78AE v8.2 64-bit CPU 2MB L2 + 4MB L3
Safety Cluster Engine -
Memory 32GB 256-bitLPDDR4x 136.5GB/s
Storage 32GB eMMC 5.1
Vision Accelerator 2x PVA
Display 3 multi-mode DP 1.4/eDP 1.4/HDMI 2.0
Other I/O 5x UART, 3x SPI, 4x I2S, 8x I2C, 2x CAN, PWM, DMIC, GPIOs
Camera Up to 6 cameras
(36 via virtual channels)
16 lanes MIPI CSI-2 | 8 lanes SLVS-EC
D-PHY 1.2 (up to 40 Gbps)
C-PHY 1.1 (up to 62 Gbps)
PCIe 1 x8 + 1 x4 + 1 x2 + 2 x1
(PCIe Gen4, Root Port & Endpoint)
Mechanical 100mm x 87mm
699-pin connector
Integrated Thermal Transfer Plate

32GB Nvidia Jetson Agx Xavier Module For Deep Learning Board Industrial Carrier Board
