Ai Embedded Industrial Computer Nvidia Jetson Agx Orin 32g 900-13701-0040-000 Aerospace
Ai Embedded Industrial Computer Nvidia Jetson Agx Orin 32g 900-13701-0040-000 Aerospace
Ai Embedded Industrial Computer Nvidia Jetson Agx Orin 32g 900-13701-0040-000 Aerospace
Ai Embedded Industrial Computer Nvidia Jetson Agx Orin 32g 900-13701-0040-000 Aerospace
Specifications
Brand Name :
PLINK
Model Number :
ORIN32-8F5E2
Place of Origin :
China
MOQ :
1set
Price :
To be discussed
Payment Terms :
T/T, D/P, D/A, L/C
Delivery Time :
15-30 work days
NAME :
AI Embedded Industrial Computer NVIDIA Jetson AGX Orin 32G 900-13701-0040-000 Aerospace
Keyword :
AI Embedded Industrial Computer NVIDIA Jetson AGX Orin 32G 900-13701-0040-000 Aerospace
AI Performance :
Up to 200 Sparse TOPs (INT8)
Ampere GPU :
2 GPC | 7 TPC | | 1792 NVIDIA® CUDA® cores | 56 Tensor cores Ray-Tracing cores | 108 Sparse TOPS
Networking :
1x GbE | 4x 10GbE
32GB Maximum Module Power :
Up to 40W
Video Decode :
H.265 (HEVC), H.264, AV1, VP9, VP8, MPEG-4, MPEG-2, VC-1
Video Encode :
H.265 (HEVC), H.264, AV1
Dimensions :
238 mm × 222 mm × 67 mm
Weight :
2950g
Description

AI Embedded Industrial Computer NVIDIA Jetson AGX Orin 32G 900-13701-0040-000 Aerospace

NVIDIA Jetson AGX Orin 32G 900-13701-0040-000 Module Industrial PC Computer

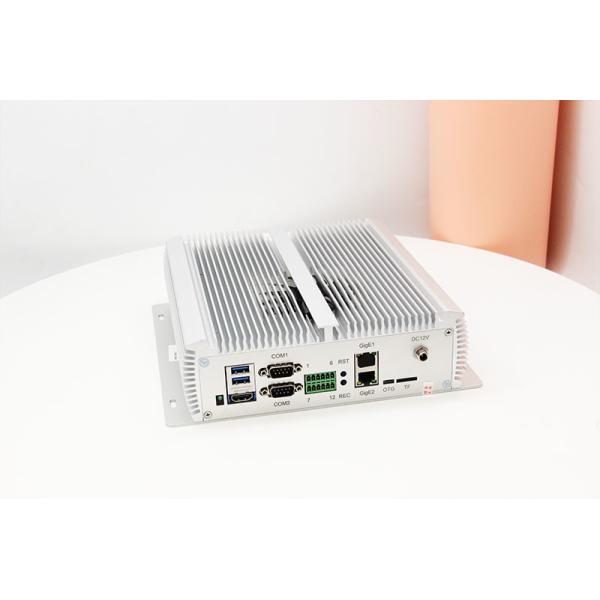

ORIN32-8F5E2 is an embedded industrial computer developed by PLink-AI Technology Company based on NVIDIA Jetson AGX Orin 32G 900-13701-0040-000 module, Which can support the expansion RJ45 network, TF card slot, USB interface, multifunctional I/O, and it is an AI embedded industrial computer applied in multiple scenarios, which is used in V2X (vehicle to everything), standard configuration external excuses rich, Internal interface components are wide temperature models, input power with overvoltage and reverse polarity protection functions,and NVIDIA Jetson AGX Orin 32G 900-13701-0040-000 module up to 200 TOPS.

The SOM incorporates a single instance of the NVIDIA Multi-Standard Video Decoder (NVDEC). This video decoder accelerates video decode, supporting low resolution mobile content, Standard Definition (SD), High Definition (HD) and UltraHD (8K, 4K, etc.) video profiles. The video decoder is designed to be extremely power efficient without sacrificing performance. The video decoder communicates with the memory controller through the video DMA which supports a variety of memory format output options. For low-power operations, the video decoder can operate at the lowest possible frequency while maintaining real-time decoding using dynamic frequency scaling techniques.

Video decode standards supported: H.265 (HEVC), H.264, VP9, VP8, AV1, MPEG-4, MPEG-2, VC-1.

Supported Video Decode Streams (NVIDIA Jetson AGX Orin 32GB module)

Standard

Profile(s)

Resolution (Maximum Number of

Streams)

Throughput

(Up to)

H.264

Baseline, Main, High

4K60 (1) | 4K30 (2) | 1080p60 (5) | 1080p30 (11)

720 MP/S

High 444, High 444 Predictive, MVC (per view considering 2 views)1

4K30 (1) | 1080p60 (2) | 1080p30 (5)

360 MP/S

H.265 (HEVC)

Main, Main10

8K30 (1) | 4K60 (2) | 4K30 (4) | 1080p60 (9) | 1080p30 (18)

1100 MP/S

Main444, Main444 10, MV(per viwe)

4K60 (1) | 4K30 (2) | 1080p60 (4) | 1080p30 (9)

550 MP/S
AV1

Main Profile

8K30 (1) | 4K60 (2) | 4K30 (4) | 1080p60 (10) | 1080p30 (20)

1000 MP/S
VP9

Profile 0, Profile 2

4K60 (1) | 4K30 (3) | 1080p60 (7) | 1080p30 (15)

1000 MP/S

Notes:
1Max throughput half for YUV444 – as compared to YUV420

2AV1 Dec: Max aggregate Mbps should be <120

NVIDIA Jetson AGX Orin 32G 900-13701-0040-000 Industrial Embedded Computer Technical Specifications
Name AGX32-8F5E2
Module NVIDIA Jetson AGX Orin 32G 900-13701-0040-000
AI Performance

Up to 200 Sparse TOPs (INT8)
GPU 1792-core NVIDIA Ampere architecture GPU with 56 Tensor Cores
CPU 8-core Arm® Cortex®-A78AE v8.2 64-bit CPU
2MB L2 + 4MB L3

DL Accelerator

2x NVDLA 2.0 Engines
Storage

64GB eMMC 5.1 Flash Storage

Bus Width

8-bit

Maximum Bus Frequency

200 MHz (HS400 or HS533)
Memory

32GB 256-bit LPDDR5 DRAM

32GB Maximum Module Power

Up to 40W
Temperature Range -25~+65°C
Input Power DC +12V
Size 238 mm × 222 mm × 67 mm
Weight 2950g
USB Micro-B 1 x Type B (OTG)
USB Type-A 2 x USB 3.1
Video Encode 1x 4K60 (H.265)
3x 4K30 (H.265)
6x 1080p60 (H.265)
12x 1080p30 (H.265)
Video Decode 1x 8K30 (H.265)
2x 4K60 (H.265)
4x 4K30 (H.265)
9x 1080p60 (H.265)
18x 1080p30 (H.265)
