Embedded AI Computing Jetson Board Tx2 CPU 4G Module Board High Performance
Embedded AI Computing Jetson Board Tx2 CPU 4G Module Board High Performance
Embedded AI Computing Jetson Board Tx2 CPU 4G Module Board High Performance
Embedded AI Computing Jetson Board Tx2 CPU 4G Module Board High Performance
Specifications
Brand Name :
NVIDIA
Model Number :
Jetson TX2 4G (900-83489-0080-000)
Place of Origin :
USA
MOQ :
1pcs
Price :
To be discussed
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
100pcs 30work days
Delivery Time :
15-30work days
NAME :
Embedded AI Computing Jetson Board Tx2 CPU 4G Module Board High Performance
Keyword :
Embedded AI Computing Jetson Board Tx2 CPU 4G Module Board High Performance
AI Performance :
1.33 TFLOPS
GPU :
NVIDIA Pascal™ architecture with 256 NVIDIA CUDA cores
CPU :
Dual-core NVIDIA Denver 2 64-bit CPU and quad-core Arm® Cortex®-A57 MPCore processor complex
Memory :
4 GB 128-bit LPDDR4 51.2 GBs
Storage :
16 GB eMMC 5.1
Power :
7.5W | 15W
Mechanical :
87 mm x 50 mm 400-pin connector Thermal Transfer Plate (TTP)
Description

Embedded AI Computing Jetson Board Tx2 CPU 4G Module Board High Performance

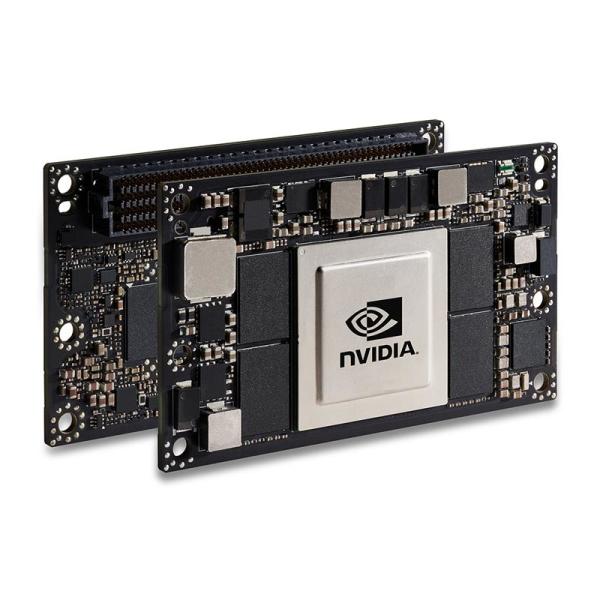

NVIDIA Jetson TX2 Module

NVIDIA Jetson TX2 Series System-on-Module

Pascal GPU + ARMv8 + 4GB LPDDR4 + 16GB eMMC

he NVIDIA Jetson TX2 module System-on-Module (SOM) redefines possibility; a combination of performance, power efficiency, integrated deep learning capabilities and rich I/O remove the barriers to a new generation of products. The Jetson TX2 is ideal for many applications including (but not limited to): Intelligent Video Analytics (IVA), Drones, Robotics, Gaming Devices, Virtual Reality (VR), Augmented Reality (AR) and Portable Medical Devices. Superior performance, robust design and reduced complexity in system integration results in more advanced products getting to market faster.

Jetson TX2 Series Module Block Diagram – General Application

Embedded AI Computing Jetson Board Tx2 CPU 4G Module Board High Performance


NVIDIA Jetson TX2 Module Technical Specifications

AI Performance

1.33 TFLOPS

GPU

VIDIA Pascal™ architecture with 256 NVIDIA CUDA cores
1.3 TFLOPS (FP16)

CPU

Dual-core NVIDIA Denver 2 64-bit CPU and quad-core Arm® Cortex®-A57 MPCore processor complex

Memory

4 GB 128-bit LPDDR4
51.2 GBs

Storage

16 GB eMMC 5.1

PCIe

1 x4 + 1 x1 OR 2 x1 + 1 x2
PCIe Gen 2, total 50GT/s

Video Encode

1x 4K60 | 3x 4K30 | 4x 1080p60 | 8x 1080p30 (H.265)
1x 4K60 | 3x 4K30 | 7x 1080p60 | 14x 1080p30 (H.264)

Video Decode

2x 4K60 | 4x 4K30 | 7x 1080p60 | 14x 1080p30 (H.265 & H.264)

Display

2 multi-mode DP 1.2/eDP 1.4/HDMI 2.0
2 x4 DSI (1.5Gbps/lane)

Networking

10/100/1000 BASE-T Ethernet

Mechanical

87 mm x 50 mm
400-pin connector
Thermal Transfer Plate (TTP)
