NVIDIA Quadro RTX 4000 8GB 8g Graphics Card
Turing GPU
2,304 NVIDIA® CUDA® Cores
288 NVIDIA® Tensor Cores
36 NVIDIA® RT Cores
8GB GDDR6 Memory
Up to 416GB/s Memory Bandwidth
43T RTX-OPS
6.0 Giga Rays/s Rays Cast
7.1 TFLOPS FP32 Performance
14.2 TFLOPS FP16 Performance
28.5 TOPS INT8 Performance
57.0 TFLOPS of Tensor Operation
Max. Power Consumption: 160W
3x DisplayPort 1.4
1x VirtualLink
New dedicated hardware-based ray-tracing technology allows the GPU for the first time to real-time render film quality, photorealistic objects and environments with physically accurate shadows, reflections, and refractions. The real-time ray-tracing engine works with NVIDIA OptiX, Microsoft DXR, and Vulkan APIs to deliver a level of realism far beyond what is possible using traditional rendering techniques. RT cores accelerate the Bounding Volume Hierarchy (BVH) traversal and ray casting functions using low number of rays casted through a pixel.
Support up to four 5K monitors @ 60Hz, or dual 8K displays per card. Quadro RTX 4000 supports HDR color for 4K @ 120Hz for 10/12b HEVC decode and up to 4K @ 60Hz for 10b HEVC encode. Each DisplayPort connector is capable of driving ultra-high resolutions of 4096x2160 @ 120 Hz with 30-bit color.
NVIDIA Quadro RTX4000 8GB
Quadro RTX Quick Start Guide
Quadro Support Guide
1 DisplayPort to DVI Adapter
1 DisplayPort to HDMI Adapter
1 USB-C to DisplayPort Adapter
NVIDIA Quadro RTX 4000 8g Graphics Card Specification
CUDA Parallel Processing cores | 2304 |
NVIDIA Tensor Cores | 288 |
NVIDIA RT Cores | 36 |
Frame Buffer Memory | 8 GB GDDR6 |
RTX-OPS | 43T |
Rays Cast | 8 Giga Rays/Sec |
Peak Single Precision (FP32) Performance | 7.1 TFLOPS |
Peak Half Precision (FP16) Performance | 14.2 TFLOPS |
Peak Integer Operation (INT8) Performance | 28.5 TOPS |
Deep Learning TeraFLOPS | 57.0 TFLOPS |
Memory Interface | 256-bit |
Memory Bandwidth | Up to 416 GB/s |
Max Power Consumption | 160 W |
Graphics Bus | PCI Express 3.0 x 16 |

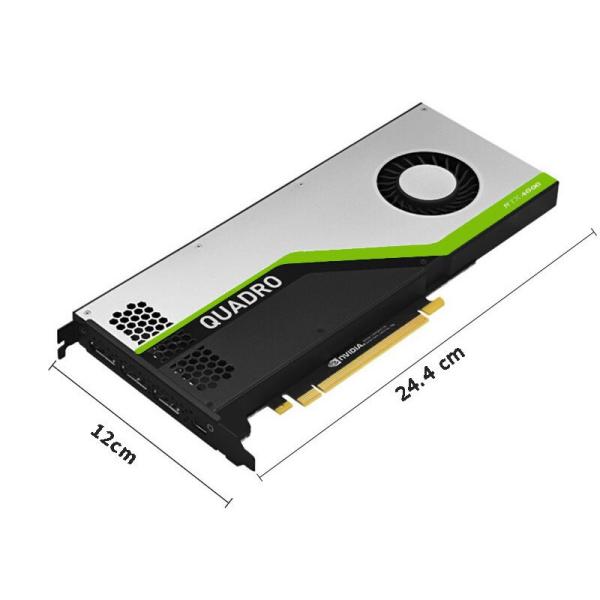

Form Factor | 4.4” H x 9.5” L |
Product Weight | 479 g |
