1.3GHz PCIe AI Performance Jetson Nvidia AGX Orin Developer Kit Server Class
1.3GHz PCIe AI Performance Jetson Nvidia AGX Orin Developer Kit Server Class
1.3GHz PCIe AI Performance Jetson Nvidia AGX Orin Developer Kit Server Class
1.3GHz PCIe AI Performance Jetson Nvidia AGX Orin Developer Kit Server Class
1.3GHz PCIe AI Performance Jetson Nvidia AGX Orin Developer Kit Server Class
1.3GHz PCIe AI Performance Jetson Nvidia AGX Orin Developer Kit Server Class
1.3GHz PCIe AI Performance Jetson Nvidia AGX Orin Developer Kit Server Class
1.3GHz PCIe AI Performance Jetson Nvidia AGX Orin Developer Kit Server Class
Specifications
Brand Name :
NVIDIA
Model Number :
AGX orin 64G module
Place of Origin :
USA
MOQ :
1PCS
Price :
USD2150-USD2200/PCS
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
20pcs 15-30 work days
Delivery Time :
15-30 work days
Packaging Details :
100mm x 87mm 699-pin Molex Mirror Mezz Connector Integrated Thermal Transfer Plate
NAME :
1.3GHz PCIe AI Performance Jetson Nvidia AGX Orin Developer Kit Server Class
Keyword :
1.3GHz PCIe AI Performance Jetson Nvidia AGX Orin Developer Kit Server Class
PN Number :
AGX ORIN 32G (945-13730-0000-000）
AI Performance :
275 TOPS
GPU :
NVIDIA Ampere architecture with 2048 NVIDIA® CUDA® cores and 64 tensor cores
CPU :
12-core Arm Cortex-A78AE v8.2 64-bit CPU 3MB L2 + 6MB L3
PCIe :
x16 PCIe slot: Lower x8 PCIe Gen4
USB Micro-B :
USB 2.0
M.2 Key M :
x4 PCIe Gen 4
M.2 Key E :
x1 PCIe Gen 4, USB 2.0, UART, I2S
Memory :
32GB 256-bit LPDDR5 204.8 GB/s
Storage :
64GB eMMC 5.1
USB Type-C :
2x USB 3.2 Gen2 with USB-PD support
Mechanical :
110mm x 110mm x 71.65mm (Height includes feet, carrier board, module, and thermal solution)
Description


1.3GHz PCIe AI Performance Jetson Nvidia AGX Orin Developer Kit Server Class

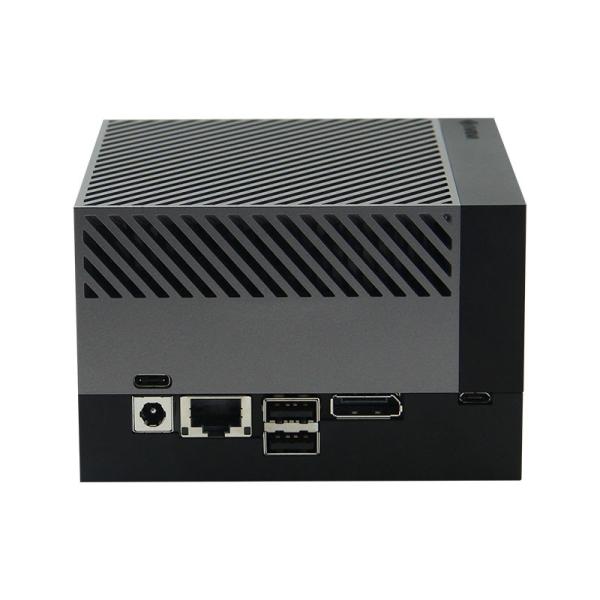

NVIDIA Jetson AGX Developer Kit

Industrial PC Box AGX Orin Developer Kit


NVIDIA Jetson AGX Orin developer kit is used by professionals to develop and test software for products based on Jetson AGX Orin modules, and by students and enthusiasts for projects and learning. Each developer kit includes a non-production specification Jetson module attached to a reference carrier board with standard hardware interfaces for flexible development and rapid prototyping.

Develop for all six NVIDIA Jetson Orin modules with one developer kit

Get started developing with the NVIDIA® Jetson AGX Orin™ Developer Kit. It can emulate the entire family of Jetson Orin modules, letting you create advanced robotics and edge AI applications for manufacturing, logistics, retail, service, agriculture, smart city, healthcare, and life sciences.

The NVIDIA Jetson AGX Orin Developer Kit and all Jetson Orin modules share one SoC architecture, enabling the developer kit to emulate performance and power for any of the modules. It is configured by default for those targeting Jetson AGX Orin series modules, but can be easily re-flashed to emulate Jetson Orin NX or Jetson Orin Nano series modules.
The included carrier board exposes many standard hardware interfaces, enabling a highly flexible and extensible platform for rapid prototyping.

NVIDIA Jetson AGX Orin Developer Kit enables development of full-featured AI applications for products based on Jetson Orin modules. It includes a high-performance, power-efficient NVIDIA Jetson AGX Orin module, and can emulate the other Jetson Orin modules.

NVIDIA Jetson AGX Orin Developer Kit

AI Performance

275 TOPS

GPU

2048-core NVIDIA Ampere architecture GPU with 64 Tensor Cores

GPU Max Frequency

1.3 GHz

CPU

12-core Arm® Cortex®-A78AE v8.2 64-bit CPU
3MB L2 + 6MB L3

CPU Max Frequency

2.2 GHz

Memory

32GB 256-bit LPDDR5
204.8GB/s

Storage

64GB eMMC 5.1

Video Encode

2x 4K60 (H.265)​
4x 4K30 (H.265)​
8x 1080p60 (H.265)​
16x 1080p30 (H.265)​

Video Decode

1x 8K30 (H.265)​
3x 4K60 (H.265)​
7x 4K30 (H.265)​
11x 1080p60 (H.265)​
22x 1080p30 (H.265)​

Camera

16-lane MIPI CSI-2 connector

PCI e

x16 PCIe slot supporting x8 PCIe Gen4
M.2 Key M slot with x4 PCIe Gen4
M.2 Key E slot with x1 PCIe Gen4

USB

USB Type-C connector: 2x USB 3.2 Gen2
USB Type-A connector: 2x USB 3.2 Gen2, 2x USB 3.2 Gen1
USB Micro-B connector: USB 2.0

Networking

RJ45 connector with up to 10 GbE

Display

1x DisplayPort 1.4a (+MST) connector

Other I/O

40-pin header (UART, SPI, I2S, I2C, CAN, PWM, DMIC, GPIO)
12-pin automation header
10-pin audio panel header
10-pin JTAG header
4-pin fan header
2-pin RTC batter backup connector
microSD slot
DC power jack
Power, Force Recovery, and Reset buttons

Power

15W - 60W

Mechanical

110mm x 110mm x 71.65mm
(Height includes feet, carrier board, module, and thermal solution)



Included in the Box

Your Jetson AGX Orin Developer Kit includes:

NVIDIA Jetson AGX Orin module with heat sink and reference carrier board
802.11ac/abgn wireless Network Interface Controller
USB Type-C power supply
USB Type-C to USB Type-A cable
Quick Start and Support Guide

1.3GHz PCIe AI Performance Jetson Nvidia AGX Orin Developer Kit Server Class
