Customized VGA Embedded Computer System Rugged Industrial PC Jetson TX2NX 4G
Customized VGA Embedded Computer System Rugged Industrial PC Jetson TX2NX 4G
Customized VGA Embedded Computer System Rugged Industrial PC Jetson TX2NX 4G
Customized VGA Embedded Computer System Rugged Industrial PC Jetson TX2NX 4G
Customized VGA Embedded Computer System Rugged Industrial PC Jetson TX2NX 4G
Customized VGA Embedded Computer System Rugged Industrial PC Jetson TX2NX 4G
Customized VGA Embedded Computer System Rugged Industrial PC Jetson TX2NX 4G
Customized VGA Embedded Computer System Rugged Industrial PC Jetson TX2NX 4G
Specifications
Brand Name :
PLINK
Model Number :
TX2NX-SYS-2006
Place of Origin :
China
MOQ :
1set
Price :
To be negotiated
Payment Terms :
T/T, D/P, D/A, L/C
Supply Ability :
Batch purchase price negotiation
Delivery Time :
15-30 work days
NAME :
Customized VGA Embedded Computer System Rugged Industrial PC Jetson TX2NX 4G
Keyword :
Customized VGA Embedded Computer System Rugged Industrial PC Jetson TX2NX 4G
AI Performance :
1.33 TFLOPS
GPU :
256-core NVIDIA Pascal™ architecture GPU
CPU :
Dual-core NVIDIA Denver™ 2 64-bit CPU and quad-core Arm® Cortex®-A57 MPCore processor
GPU Max Frequency :
1.3 GHz
CPU Max Frequency :
Denver 2: 2 GHz Cortex-A57: 2 GHz
Memory :
4GB 128-bit LPDDR4 51.2GB/s
Storage :
16GB eMMC 5.1
PCIe* :
1 x1 + 1 x2 (PCIe Gen2)
Networking :
1x GbE
Display :
2 multi-mode DP 1.2/eDP 1.4/HDMI 2.0 1 x2 DSI (1.5Gbps/lane)
Size :
160mm × 130mm × 65mm
Weight :
1078g
Power :
DC +9V~+24V
Working temperature :
-20~+65°C
Description

Customized VGA Embedded Computer System Rugged Industrial PC Jetson TX2NX 4G

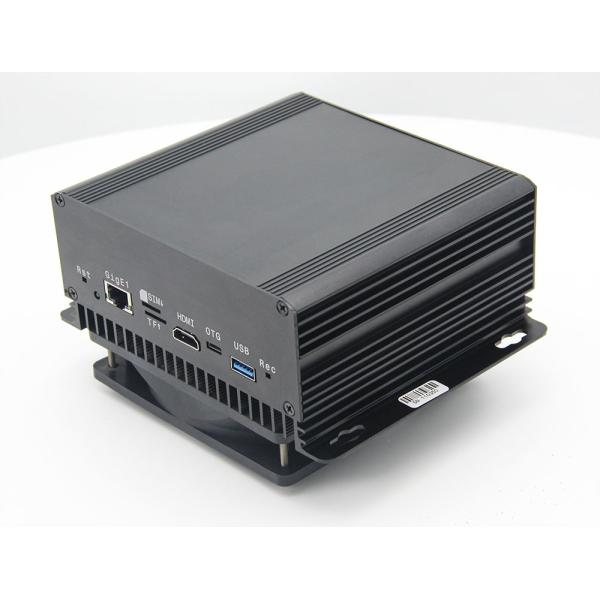

Rugged Embedded Systems NVIDIA Jetson Industrial PC Computer (TX2NX-SYS-2006)

The TX2NX-SYS-2006 is a compact AI industrial computer with NVIDIA Jetson TX2 NX core modules. is the embedded box pc For industrial deployment applications, the main interfaces are designed for electrostatic safety protection, and a high-reliability power supply application scheme is adopted. The input power supply has overvoltage and reverse polarity protection functions, and has a wealth of external interfaces. warm model which is high performance embedded computing,TX2NX-SYS-2006 standard type can support 1/3/5 full-speed Gigabit Ethernet, if you need to expand USB3.0 signal, SSD memory card, SATA signal, 4G communication module, various video capture/output cards, AD capture card, multi-serial port card, sound acquisition/output card, multi-function IO card, etc., please contact our sales staff.NVIDIA Jetson TX2 NX, which can provide 1.33 TFLOPS of computing power in 15W power mode, 2.5 times the computing power of Jetson Nano, with 256 CUDA Cores, 6 ARM CPU cores, 4 GB 128-bit DDR4 memory, it Multiple network models can be run simultaneously of rugged embedded pc

Customized VGA Embedded Computer System Rugged Industrial PC Jetson TX2NX 4G

NVIDIA Jetson TX2 NX Industrial Embedded Computer Product Features

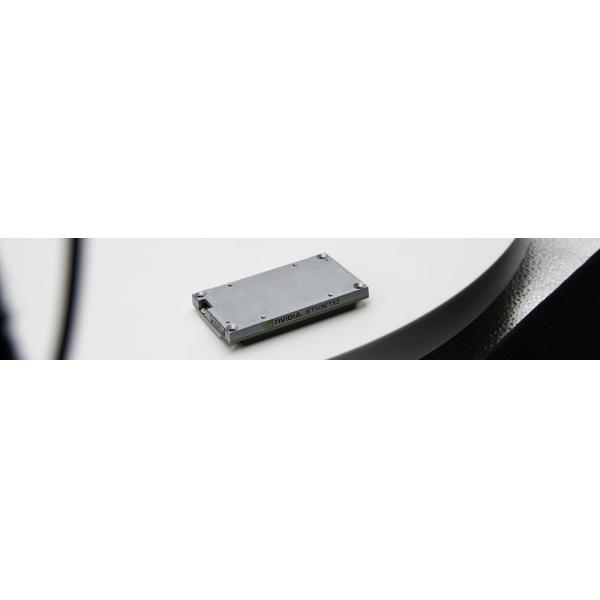

Factory pre-installed NVIDIA Jetson TX2 NX core module
Optional 1/3/5 Gigabit Ethernet (10/100/1000 BASE-T) RJ45 connectors
Onboard Reset and Recovery buttons
Automatically start when power on
Optional 32GB ~ 1TB SSD expansion storage
Micro USB connector 1
HDMI 2.0 interface (maximum 6Gbps, 24bpp, 4096x2160@60Hz) 1
Working indicator light 1
Micro TF card connector 1
USB 3.1 Type-A connector 1
USB 2.0 Type1A connector 2
CAN bus interface with onboard transceiver 1
RS-232 level serial ports 2
Nano SIM card connector 1
3.3V bit programmable GPIO 3

1 bit programmable GPO with 3.3V strong drive capability

Product size: 160mm×130mm×65mm

Power requirements: DC +9V~+24V

Working temperature: -20~+65℃

Customized VGA Embedded Computer System Rugged Industrial PC Jetson TX2NX 4G

NVIDIA Jetson TX2 NX Module Technical Specifications

CPU Dual-core NVIDIA Denver 2 64-bit CPU and quad-core Arm® Cortex®-A57 MPCore processor complex
GPU NVIDIA Pascal™ architecture with 256 NVIDIA® CUDA® cores
AI Performance 1.33 TFLOPS
PCIe 1 x1 + 1 x2
PCIe Gen2, total 30 GT/s
Memory 4 GB 128-bit LPDDR4
51.2 GB/s
Storage 16 GB eMMC 5.1
Display 2 multi-mode DP 1.2/eDP 1.4/HDMI 2.0
1x 2 DSI (1.5Gbps/lane)
CSI Camera Up to 5 cameras (12 via virtual channels)
12 lanes MIPI CSI-2 (3x4 or 5x2)
D-PHY 1.2 (up to 30 Gbps)
Networking 10/100/1000 BASE-T Ethernet
Power 7.5W | 15W
Size 69.6 mm x 45 mm
Video Encode 1x 4K60 (H.265)
3x 4K30 (H.265)
4x 1080p60 (H.265)
Video Decode 2x 4K60 (H.265)
7x 1080p60 (H.265)
14x 1080p30 (H.265)
