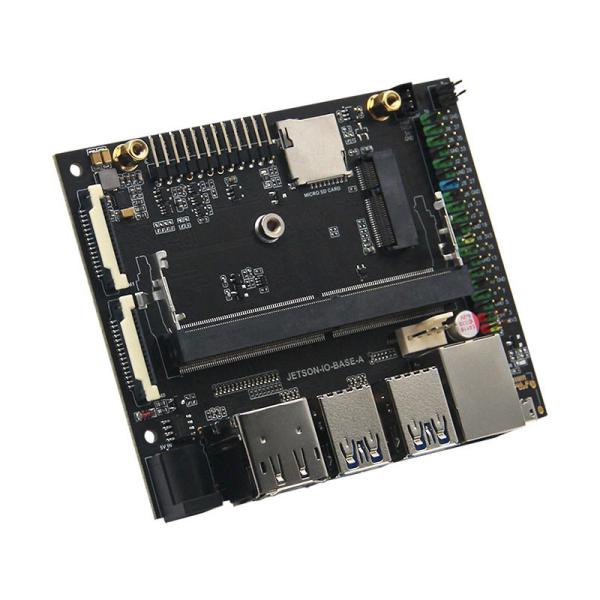

Original Replacement HDMI Nvidia Developer Embedded PC Board Jetson Nano
Original Replacement HDMI Nvidia Developer Embedded PC Board Jetson Nano
Original Replacement HDMI Nvidia Developer Embedded PC Board Jetson Nano
Original Replacement HDMI Nvidia Developer Embedded PC Board Jetson Nano
Original Replacement HDMI Nvidia Developer Embedded PC Board Jetson Nano
Original Replacement HDMI Nvidia Developer Embedded PC Board Jetson Nano
Original Replacement HDMI Nvidia Developer Embedded PC Board Jetson Nano
Original Replacement HDMI Nvidia Developer Embedded PC Board Jetson Nano
Specifications
Brand Name :
PLINK
Model Number :
nano-02
Place of Origin :
China
MOQ :
1PCS
Price :
USD55\PCS
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
In stock
Delivery Time :
15-30 work days
NAME :
Original Replacement HDMI Nvidia Developer Embedded PC Board Jetson Nano
Key word :
Original Replacement HDMI Nvidia Developer Embedded PC Board Jetson Nano
Temperature :
0~+50℃
Camera :
2x MIPI CSI-2 DPHY lanes
Mechanical :
100 mm x 80 mm x 28 mm
USB :
USB 3.0 × 4、USB 2.0 OTG × 1
IO :
40PIN GPIO
Power supply :
DC + 9V
Display :
HDMI/DP
Other :
FAN Header (GPIO，I2C，I2S，SPI，UART)
Description

Original Replacement HDMI Nvidia Developer Embedded PC Board Jetson Nano

NVIDIA Development Board

Jetson Nano 4GB Domestic Carrier Board For industrial single board computer

Jetson Nano 4GB Domestic Carrier Board is the replacement of NVIDIA Jetson Nano development board, it is based on NVIDIA Jetson Nano module, for industrial embedded PC such like face recognition tec,.

The nvidia development board interface display

Micro SD card slot

40PIN GPIO

The Micro USB port can be used for 5V power input or USB data transfer

Gigabit Ethernet(10/100/1000 BASE-T) connector

USB 3.0 ports

HDMI interface

DP interface

DC power port used for 5V power input

MIPI CSI cameras Interface Function Supported

Jetson Nano embedded nvidia development board Technical Specifications

CPU Quad-core ARM A57 @ 1.43 GHz
GPU 128-core NVIDIA Maxwell™
Memory 4GB 64-bit LPDDR4 25.6GB/s
Storage 16GB eMMC 5.1 /microSD
Video Encode 4K @ 30 | 4x 1080p @ 30 | 9x 720p @ 30 (H.264/H.265)
Video Decode 4K @ 60 | 2x 4K @ 30 | 8x 1080p @ 30 | 18x 720p @ 30 (H.264/H.265)
Expand the storage Support M.2 E key NVME hard disk
Camera 2x MIPI CSI-2 DPHY lanes
Display HDMI and DP
USB 4x USB 3.0, 1x USB 2.0 OTG
I/O 40PIN GPIO
Other FAN Header (GPIO,I2C,I2S,SPI,UART)
Mechanical 100 mm x 80 mm x 18 mm

Original Replacement HDMI Nvidia Developer Embedded PC Board Jetson Nano
