PCIe Card Slot V2X Nvidia AI Embedded Development Board AGX Xavier
PCIe Card Slot V2X Nvidia AI Embedded Development Board AGX Xavier
PCIe Card Slot V2X Nvidia AI Embedded Development Board AGX Xavier
PCIe Card Slot V2X Nvidia AI Embedded Development Board AGX Xavier
PCIe Card Slot V2X Nvidia AI Embedded Development Board AGX Xavier
PCIe Card Slot V2X Nvidia AI Embedded Development Board AGX Xavier
Specifications
Brand Name :
PLINK
Model Number :
Y-C8-xavier
Place of Origin :
China
MOQ :
1PCS
Price :
USD280-USD290\PCS
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
In stock
Delivery Time :
15-30 work days
NAME :
PCIe Card Slot V2X Nvidia AI Embedded Development Board AGX Xavier
Key word :
PCIe Card Slot V2X Nvidia AI Embedded Development Board AGX Xavier
USB Micro-B :
2x USB 3.0 1x Micro USB
PCIe :
x16 PCIe slot supporting PCIe x8
MiniPCIe :
2x MPCIe
RJ45 :
2x RJ45 one of the RJ45 connector needs
DisplayPort :
HDMI
Button :
1x Recovery 1x Reset
M.2 Key M :
x2
Serial port :
2x RS232
Other I/O :
2x CAN 4xGPIO 1x SPI 1x I2C
Power Supply :
DC +12V
Temperature :
-40~+85°C
Dimensions :
170mm×170mm×34 mm
Weight :
260g
Module :
AGX ORIN/XAVIER
Description

PCIe Card Slot V2X Nvidia AI Embedded Development Board AGX Xavier

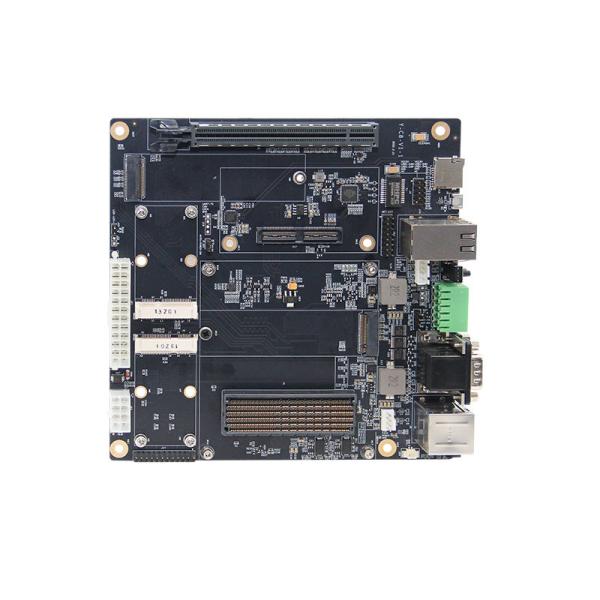

Embedded Computer Module NVIDIA Jetson AGX Xavier Carrier Board Y-C8

The Y-C8 is a standard Mini-ITX Jetson carrier board with NVIDIA Jetson AGX Xavier module. it is for the industrial single board computer, the embedded development board can be used with PC, V2X, automation and mechanical arm etc,.

NVIDIA Jetson AGX Xavier module technical specifications

Module Jetson AGX Xavier 64GB Jetson AGX Xavier 32GB Jetson AGX Xavier Industrial
Ai Perf 32 TOPS 30 TOPS
GPU 512-core NVIDIA Volta architecture GPU with 64 Tensor Cores
CPU 8-core Arm® Cortex®-A78AE v8.2 64-bit CPU 2MB L2 + 4MB L3
Memory 64GB 256-bitLPDDR4x 136.5GB/s 32GB 256-bitLPDDR4x 136.5GB/s 32GB 256-bitLPDDR4x (ECC support) 136.5GB/s
Storage 32GB eMMC 5.1 64GB eMMC 5.1
USB 3x USB 3.2 Gen2 (10 Gbps)
4x USB 2.0
Power 10W - 30W 20W - 40W

NVIDIA Jetson AGX Xavier Carrier Board Product Specifications

* 2x MiniPCIe Connector (52-pin)
* 2x M.2 Key M Slot (75-pin)
* 1x micro TF Connector

* 1x RTC Battery Socket
* 1x PCIe x16 Connector
* 1x Fan-Header (4-pin)

* System Power Indicator

PCIe Card Slot V2X Nvidia AI Embedded Development Board AGX Xavier

NVIDIA Single Board Technical Specifications

USB Micro-B 1 x Type B (OTG)
USB Type-A 1 x USB 3.1
CPU 8-core NVIDIA Carmel Arm® v8.2 64-bit CPU 8MB L2 + 4MB L3
CPU Memory 32GB 256-bit LPDDR4 x 136.5GB/s
GPU 512-core NVIDIA Volta GPU with 64 Tensor Cores
Other I/O

4 x GPIO(3.3V) | 1 x SPI(3.3V) | 2 x I2C(3.3V) | 2 x RS 232 | 1 x Debug(UART)

2 x CAN (with on-board transceiver)
Temperature -40~+85°C
Networking 1 x 10/100/1000 Ethernet/RJ45
Power Supply DC +12V
Product Size 170mm×170mm×34 mm
Weight 260g
