ODM IOT HDMI Computer Embedded PC Board Jetson Xavier Carrier Board
ODM IOT HDMI Computer Embedded PC Board Jetson Xavier Carrier Board
ODM IOT HDMI Computer Embedded PC Board Jetson Xavier Carrier Board
ODM IOT HDMI Computer Embedded PC Board Jetson Xavier Carrier Board
ODM IOT HDMI Computer Embedded PC Board Jetson Xavier Carrier Board
ODM IOT HDMI Computer Embedded PC Board Jetson Xavier Carrier Board
Specifications
Brand Name :
PLINK
Model Number :
Y-C6
Place of Origin :
China
MOQ :
1PCS
Price :
USD199-USD219\PCS
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
In stock
Delivery Time :
15-30 work days
NAME :
ODM IOT HDMI Computer Embedded PC Board Jetson Xavier Carrier Board
Key word :
ODM IOT HDMI Computer Embedded PC Board Jetson Xavier Carrier Board
Full-speed USB3.1 Type A connector :
*1
Micro USB connector :
x1
Gigabit Ethernet (10 / 100 / 1000 BASE-T) RJ45 connector :
x1
HDMI 2.0 interface (up to 6Gbps, 24bpp, 4096x2160@60Hz) :
x1
Type CR1220 type RTC battery holder (without battery) :
x1
Work indicator light :
x1
fan control interface :
x1
micro TF card connector :
x1
Nano type SIM card connector :
x1
Full-length miniPCIe connectors :
x2
2 Lane MIPI camera interface FPC connectors :
x2
CAN bus interface with on-board transceiver :
x1
Weight :
40g
Board Size :
120mm * 80mm * 18 mm
Power Supply :
DC + 9V~ + 24V
Temperature :
-40~+85℃
Description

ODM IOT HDMI Computer Embedded PC Board Jetson Xavier Carrier Board

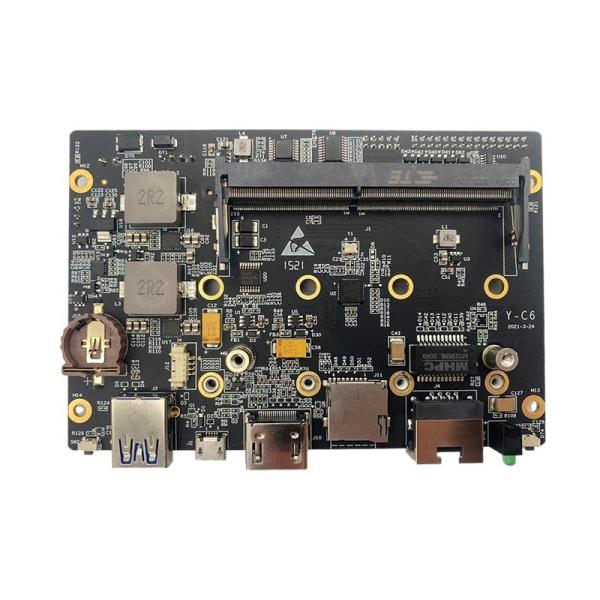

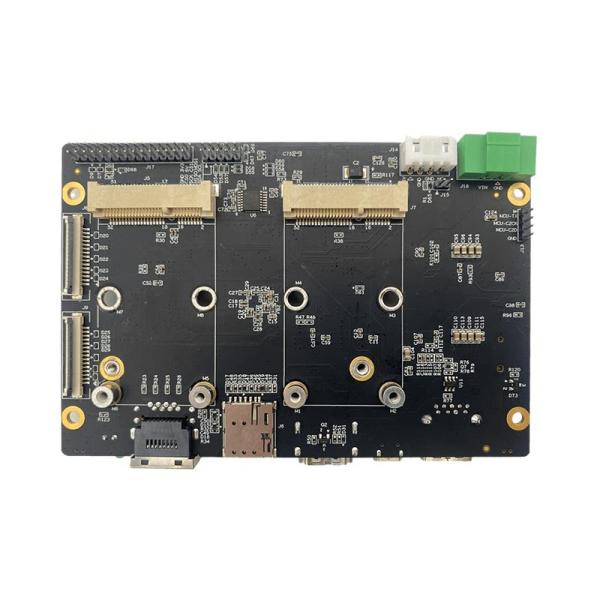

NVIDIA Jetson Xavier NX Carrier Board Y-C6-NX

The Y-C6-NX is an NVIDIA Jetson SBC, and it is also a low-cost, small-volume carrier board equipped with the NVIDIA Jetson Xavier NX, NVIDIA Jetson TX2 NX, and NVIDIA Jetson Nano series of core modules, suitable for edge AI. For industrial, UAV, autopilot and the applications.

ODM IOT HDMI Computer Embedded PC Board Jetson Xavier Carrier Board

Interface

 Quality

USB3.1 Type-A

 1
Micro USB 1

(10 / 100 / 1000 BASE-T) RJ45

 1

HDMI 2.0

 1

Fan Control Interface

 1
Working Indicator 1
CR1220 type RTC battery holder (battery not included) 1
Micro TF card 1
Nano type SIM card 1
MiniPCIe 2
2 Lane MIPI Camera Interface FPC 2
CAN 1
RS-232 2
UART(3.3V) 1
SPI(3.3V) 1
I2C(3.3V) 2
30pin 2.0mm pitch multi-function expansion pin connector (including GPIO, I2C, SPI, USB, RS-232 and other low-speed signals) 1
Board Size 120mm×80mm×18mm
Power DC +9V~+24V
Working temperature -40~+85℃
Weight 78g
