Specifications
Brand Name :
PLINK
Model Number :
NX-03-nx
Place of Origin :
China
MOQ :
1PCS
Price :
USD90\PCS
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
In stock
Delivery Time :
15-30 work days
NAME :
USB Embedded Nvidia Jetson Xavier NX Carrier Board Science 12V~21V
Key word :
USB Embedded Nvidia Jetson Xavier NX Carrier Board Science 12V~21V
Temperature :
-0~+50℃
Camera :
2x MIPI CSI-2 DPHY lanes
Mechanical :
91 mm x 104 mm x 35 mm
USB :
USB 3.0 × 4、USB 2.0 OTG × 1
IO :
40PIN GPIO
Power supply :
DC + 9V
Display :
HDMI/DP
Other :
FAN Header (GPIO，I2C，I2S，SPI，UART)
Module :
Jetson Xavier NX
WIFI :
Externally accessible
Module Memory :
16/8 GB 128-bit LPDDR4x 59.7GB/s
Storage :
16 GB eMMC 5.1
Description

USB Embedded Nvidia Jetson Xavier NX Carrier Board Science 12V~21V

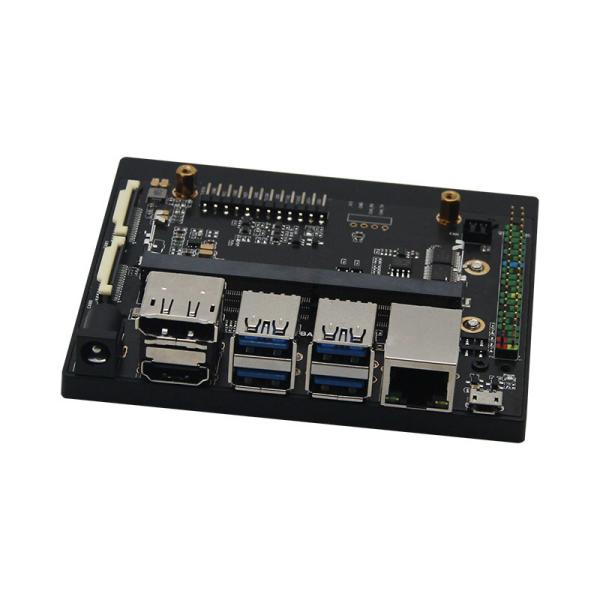

NVIDIA Jetson Xavier NX Carrier Board

Embedded Computer Module: NVIDIA Jetson Xavier NX, It integrates a Unified Display Controller (based on the NVIDIA NVDisplay architecture) and two independent display outputs. The Display Controller includes a Pixel Processing Engine that fetches pixel data to be processed from DRAM and generates up to six windows of rasterized display-ready pixel data. The instructions for processing the pixel data are captured by the display controller's Front End (FE) logic, which then generates the individual controls for the various stages of pixel processing. The pixel data to be processed are fetched in the Isochronous Memory Hub (IsoHub) then go through the specified pixel processing, including merging the cursor, in four pipe stages: Pre-Composition (Pre-comp); Composition (Comp); Post-Composition (Post-comp); and Raster Generation (RG). The rasterized display-ready pixel data are available for the separate panels/devices (referred to as display heads) and are fed through a multi-channel crossbar structure to the Serial Output Resources (SOR) in the Display Interface for the standard display output format, i.e., DP (Display Port) and High-Definition Multimedia Interface (HDMI).

The Jetson development board (Xavier NX domestic carrier board) is for industrial embedded system development board.

The interface display of NVIDIA development board

NVIDIA Jetson Xavier NX module

  • The Micro USB port can be used for 5V power input / USB data transfer
  • Ethernet(10/100/1000 BASE-T) connector
  • HDMI and DP interface
  • 40-PIN GPIO
  • DC power port used for 12V~21V
  • MIPI CSI cameras Interface Function
  • USB 3.0 ports
  • FAN interface


Jetson Carrier Board Technical Specifications

Memory 16/8 GB 128-bit LPDDR4x 59.7GB/s
GPU 384-core NVIDIA Volta GPU with 48 Tensor Cores
CPU 6-core NVIDIA Carmel ARM v8.2 64-bit CPU 6MB L2 + 4MB L3
Storage 16 GB eMMC 5.1
Display HDMI and DP
Camera 2x MIPI CSI-2 DPHY lanes
USB 4x USB 3.0, 1x USB 2.0 OTG
Video Encode 2x 4K60 | 4x 4K30 | 10x 1080p60 | 22x 1080p30 (H.264/H.265)
Video Decode 2x 8K30 | 6x 4K60 | 12x 4K30 | 22x 1080p60 | 44x 1080p30 (H.265)
2x 4K60 | 6x 4K30 | 10x 1080p60 | 22x 1080p30 (H.264)
I/O 40PIN GPIO
Other FAN Header (GPIO,I2C,I2S,SPI,UART)
Mechanical 104 mm x 90 mm x 26 mm

The Jetson Xavier NX is available in 8GB and 16GB versions.

Jetson Xavier NX domestic Board NVIDIA Jetson Xavier NX official Board
Memory 16/8 GB 128-bit LPDDR4x 59.7GB/s
GPU 384-core NVIDIA Volta GPU with 48 Tensor Cores
CPU 6-core NVIDIA Carmel ARM v8.2 64-bit CPU 6MB L2 + 4MB L3
Storage
16GB eMMC
Expandable M.2 hard disk
No storage medium
Expandable M.2 hard disk
Display HDMI and DP
Camera 2x MIPI CSI-2 DPHY lanes
USB 4x USB 3.0, 1x USB 2.0 OTG
Mechanical 104 mm x 90 mm x 26 mm
