Mini UAV Jetson AGX Xavier Board NVIDIA SBC NX Development Board
Mini UAV Jetson AGX Xavier Board NVIDIA SBC NX Development Board
Mini UAV Jetson AGX Xavier Board NVIDIA SBC NX Development Board
Mini UAV Jetson AGX Xavier Board NVIDIA SBC NX Development Board
Mini UAV Jetson AGX Xavier Board NVIDIA SBC NX Development Board
Mini UAV Jetson AGX Xavier Board NVIDIA SBC NX Development Board
Mini UAV Jetson AGX Xavier Board NVIDIA SBC NX Development Board
Mini UAV Jetson AGX Xavier Board NVIDIA SBC NX Development Board
Specifications
Brand Name :
PLINK
Model Number :
Y-C7-NX
Place of Origin :
China
MOQ :
1PCS
Price :
USD199-USD219\PCS
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
In stock
Delivery Time :
15-30 work days
NAME :
Mini UAV Jetson AGX Xavier Board NVIDIA SBC NX Development Board
Key word :
Mini UAV Jetson AGX Xavier Board NVIDIA SBC NX Development Board
SD :
Micro SDcard
USB Type-C :
1x Micro USB 1x USB Type-C 1x USB 2.0
Board Storage :
64GB eMMC
Expand interface :
1x miniPCIE 1x M.2 Key M
RS-232 level serial port :
x1
2 lane MOPI Camera interface FPC connector :
x1
Gigabit Ethernet（10/100/1000 BASE-T）Connector :
x1
HDMI 2.0 interface :
x1
3.3V TTL level UART port :
x1
CAN bus interface :
x1
Weight :
40g
Board Size :
80mm×60mm×8 mm
Power Supply :
DC +9V~+24V
Temperature :
-40~+85℃
Description

Mini UAV Jetson AGX Xavier Board NVIDIA SBC NX Development Board

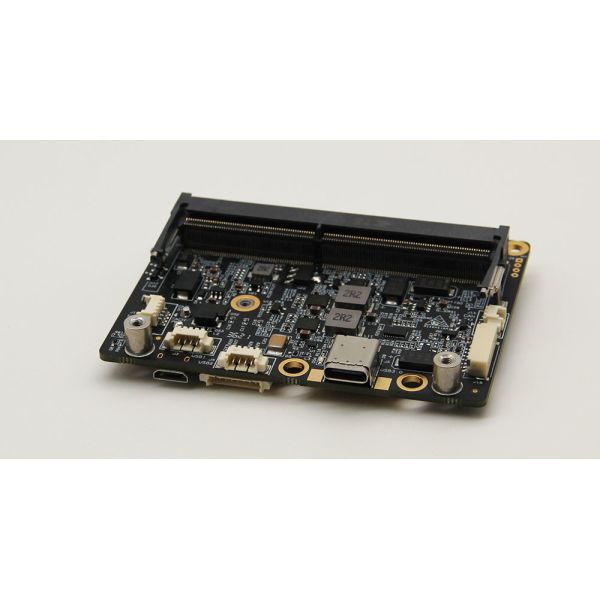

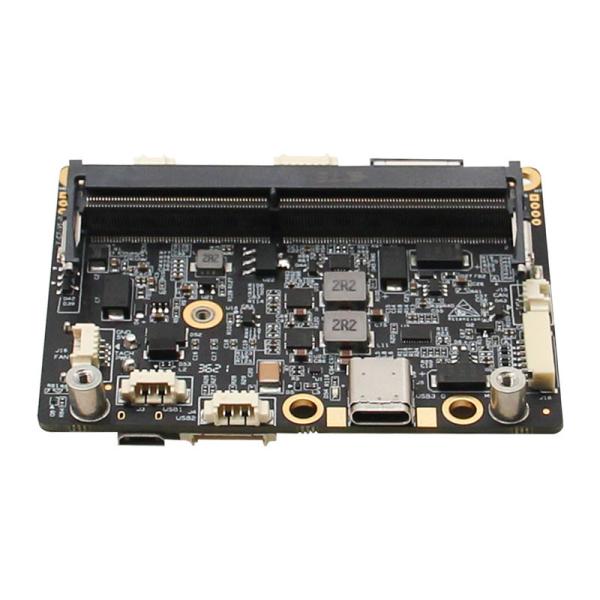

NVIDIA Developer Board Jetson Xavier NX Carrier Board Y-C7-NX

NVIDIA Jetson Xavier NX Module:

Up to 21 TOPS (INT8)

Volta GPU

Carmel CPU

8 GB 128-bit LPDDR4x DRAM

16 GB eMMC 5.1 Flash Storage

The NVIDIA Jetson SBC (Y-C7) is a NVIDIA single board that matches NVIDIA Jetson Xavier NX module. For the industrial single board computer and UVA, autopilot. the development board (Y-C7) is a small carrier board. Through the 2 lane mipi CSI interface on development board (Y-C7), you can access a variety of camera modules, as well as CVBS (PAL / NTSC), SDI, HDMI and other video signals.

Mini UAV Jetson AGX Xavier Board NVIDIA SBC NX Development Board
M.2 Key M 1
RJ45(10 / 100 / 1000 BASE-T) 1
Micro USB 1
HDMI 2.0 1
USB3.1 Type-C 1
USB 2.0 1
Fan Control Interface 1
MiniPCIe 1
RS-232 1
CAN 1
I2C(3.3V) 1
UART 1
GPIO(3.3V) 3
GPO(3.3V) 1
Temperature -40~ + 85°C
Power supply requirements DC + 9V~ + 24V
Board size 80mm * 60mm * 16.8mm
Weight 40g
