Specifications
Brand Name :
SHC
Model Number :
SC-BTC01
Certification :
CNAS、TUV、ITS、CSA、BV、SGS (cost additional)
Place of Origin :
China
MOQ :
1 unit
Price :
USD 500-3000 Unit
Payment Terms :
T/T, Western Union, MoneyGram, L/C
Supply Ability :
999 units per month
Delivery Time :
in 15 working days
Packaging Details :
Carton
test corner :
customized
Color :
Black
Thermocouple :
K, T, J
Sheet copper :
thickness 1mm, diameter 15mm
Number of temperature measuring points :
20,32,48,64(it can be customized)
Arrangement of temperature measuring points :
100*100mm or 76*76mm square(it can be customized)
Size :
600X600X1000mm,800X800X1000mm,1000x1000x1200mm(it can be customized)
The thermocouple arrangement :
All leads on a connection line
Description

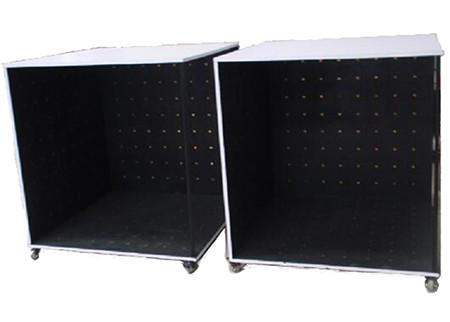

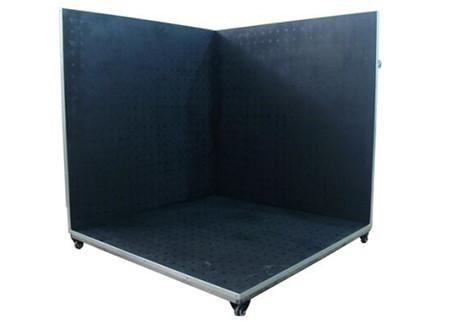

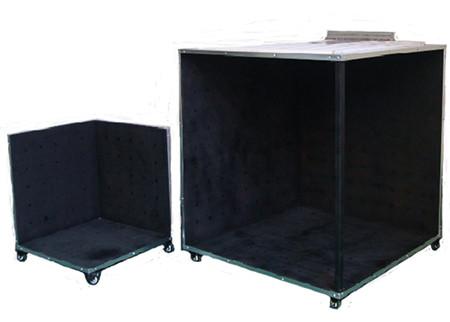

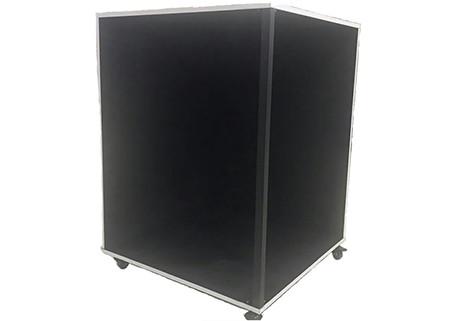

IEC60335 Black Test Corner With Thermocouple For Temperature Rise

Product information:

The temperature measurement corner conforms to the standard requirement of IEC60335-1:2004 chapter 11.

It is designed and manufactured to provide the required environment for the temperature rising test of all kinds of electrical, electrical products. It can be customized according to the different testing samples.

Technical parameters:

Size 600X600X1000mm,800X800X1000mm,1000x1000x1200mm(it can be customized)
Thermocouple

the diameter of the thermocouple is less than 0.3mm, three kinds of the thermocouple: K, T, J

(any one of it can be chosen)
The thermocouple arrangement All leads on a connection line(optionally equipped with thermocouple plug and socket)
The sheet copper used for temperature measurement the diameter of 15mm and the thickness of 1mm.
The number of temperature measuring points 20,32,48,64(it can be customized)
The arrangement of temperature measuring points 100*100mm or 76*76mm square(it can be customized)
Plywood The thickness is 20mm and the front side is painted with Berlin black and the reverse side is with gray film back
The movable part 4 removable wheels installed on the bottom of the device
The height of the wheel about 100mm, The top plate is equipped with hook whose load bearing is 15Kg
Temperature patrol system needs to be equipped additionally optionally equipped with 48 road tour temperature table

Guangzhou Shice are designed and manufactured as per the requirements of IEC, EN, UL, VDE, BS, AS, ISO standards and etc.

Our main products are:

waterproof and dustproof (IP) environmental test equipment;

switch, plug, socket and coupler test equipment;

mechanical strength impact test equipment;

material fire hazard test equipment,

enclosure protection test probes;

household appliances safety test equipment;

wire and cable test equipment;

luminaires test equipment;

electric tools test equipment.

Our products are widely used in domestic and worldwide measurement & certification institutions, inspecting mechanism, laboratories, export & import inspection and quarantine bureau, various production companies and etc. Our customer includes Bureau Veritas, CSA, ITS, UL, TUV Rheinland, TUV SUD, SGS and etc.
