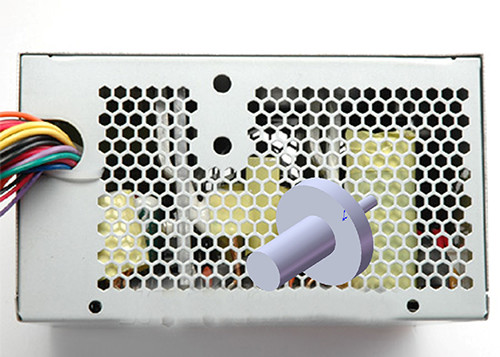

IEC61032 Figure 9 Finger Test Probe
IEC61032 Figure 9 Finger Test Probe
IEC61032 Figure 9 Finger Test Probe
IEC61032 Figure 9 Finger Test Probe
IEC61032 Figure 9 Finger Test Probe
IEC61032 Figure 9 Finger Test Probe
IEC61032 Figure 9 Finger Test Probe
IEC61032 Figure 9 Finger Test Probe
Specifications
Brand Name :
SHC
Model Number :
SC-F913
Certification :
CNAS、TUV、ITS、CSA、BV、SGS (cost additional)
Place of Origin :
China
MOQ :
1 unit
Price :
USD 20-600 unit
Supply Ability :
999 units per month
Delivery Time :
in 3 working days
Packaging Details :
Aluminum toolbox
Standards :
IEC61032
Material :
Nylon+Stainless Steel
Warranty :
12 months
Application :
safety test
Customized :
OEM welcome
Figure9 :
Test probe13, short pin
Figure 2 :
Test Probe B standard test finger
Figure 16 :
Test probe 41​ Thorn Probe
Description

IEC61032 Figure 9 Test Probe13 Short Pin Standard Test Probe Kit

Main specification and corresponding technical parameters:

Parameters /Model Short test pin probe SC-F913
1 Ф3 0 -0.05
2 Ф4 0 -0.05
3 15 0 -0.1
4 Ф25±0.2
5 4
6 Ф10
7 20
Standard Test Probe Kit:
IEC61032 Figure 2 Test Probe B standard test finger
IEC61032 Figure 16 Test probe 41​ Test Thorn Probe
IEC61032 Figure9 Test probe13, short pin

Information:

This pin is intended to verify the protection against access to hazardous live parts in class 0 equipment and class II equipment. It conforms to IEC61032 figure 9 Test probe13, IEC60950 figure 2B, IEC60335 and IEC60065 standard requirements.

Customizable: It can be used for enclosure protection test when open threaded hole of M6 at the end of the handle (connected with pull and push dynamometer).

This pin is used on appliances for verifying that there is no access to hazardous live parts of heating elements which could be touched accidentally by a tool (i.e. screwdriver), Meets IEC61032 Test probe12 & EN requirements. Handle is made of nylon, tip is hardened steel.

Shice offers a wide range of test probes to meet the most common standards including those from IEC,EN, GB and others. Such standards require the checking of accessibility to dangerous parts of home electronics and appliances, toys,tools and a hose of other products thar are intended to be protected by enclosures. These probes simulate human fingers,tools and other items that would be hazardous to come in contact with certain parts of produt.

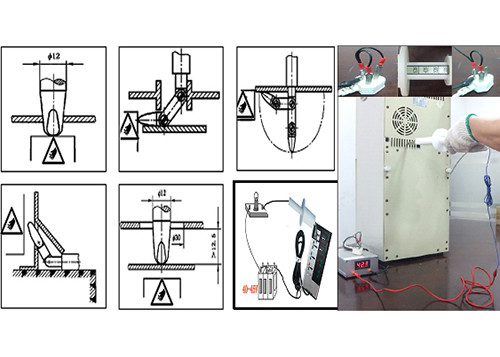

Usage:

IEC61032 Figure 9 Finger Test Probe

IEC61032 Figure 9 Finger Test Probe

IEC61032 Figure 9 Finger Test Probe
