Specifications
Brand Name :
SHC
Model Number :
SC-F658
Certification :
CNAS、TUV、ITS、CSA、BV、SGS (cost additional)
Place of Origin :
China
MOQ :
1 unit
Price :
USD 50-1000 unit
Supply Ability :
999 units per month
Delivery Time :
in 5 working days
Packaging Details :
Aluminum toolbox
Standards :
IEC60065 Figure 8
Warranty :
12 months
Material :
stainless steel
Test sample :
Audio, video and similar electronic apparatus
Description

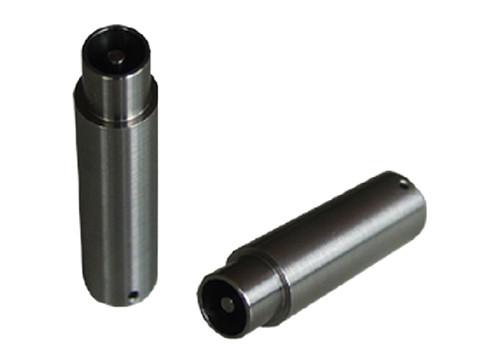

Test Plug For Mechanical Tests On Antenna Coaxial Sockets

Product information:

This test plug conforms to IEC60065 Figure 8 standard requirement.

It is used to test the antenna coaxial socket which is installed on the device and equipped with parts or components which isolate the hazardous live parts and accessible parts. Its structure should be able to withstand the expected mechanical stress that might encounter during the use process. It is made entirely of stainless steel. All parts are machined with precision.

Technical parameters:

No. Item Index value
1 a 9.576 0 -1
2 b 8.05 minimum
3 c 2.438 0 -1
4 d 9.1 minimum
5 e 7.112 minimum
6 f 0.8±0.4
7 g 40±0.4
8 h 12±0.4
9 j 43±0.4
10 k 0.3
11 bore diameter Ф1.5
