Specifications
Brand Name :
SHC
Model Number :
SC-IPX34B
Certification :
CNAS, TUV, ITS, CSA, BV, SGS(cost additional)
Place of Origin :
China
MOQ :
1 Unit
Price :
USD 3000-8000 per Unit
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
999 unit per month
Delivery Time :
15 work days
Packaging Details :
carton
Material :
Stainless steel
IP code :
IPX3, IPX4
Pressure gauge :
0~0.25MPa
Standard :
IEC60529
size of the oscillating tube :
R400. R200, R600, R800, R1000, R1200, R1400, R1600mm. Optional
Needle hole :
Φ0.4mm
angle of two holes :
IPX3: 120°; IPX4: 180°
Swing angle :
IPX3: 120°(±60°) ; IPX4: 350°(±175°)
Swing speed :
IPX3: 4 s/time(2×120°) ; IPX4: 12 s/time(2×350°)
Water flow :
1-10L/min adjustable
Description

IEC60529 IPX3 IPX4 Oscillating Tube Waterproof Testing Equipment

Application:

The Oscillating tube testing equipment is used for the testing of IPX3 and IPX4
The test apparatus with water proof functions, such as electronic appliances, lamps, electrical cabinets, electrical components,

car, motorcycle, electrical products (such as automotive instrument, all kinds of switches, micro motors, etc.).

Feature:
There are two models: Open type and chamber type. Using PLC control, motor drive oscillating tube to do the reciprocating motion at a certain angle, at the same time control the water flow, the turntable rotates at a certain speed, so that to make every side of the sample testing uniformly.

Technical parameters:

Power supply Single-phase AC220V 50Hz or customize
Water supply Water flow rate＞10L/min±5% clean water without inclusion. This device is equipped with clean water filtration unit
Control and operation PLC intelligent control, 7 inch color touch screen operation
The size of the oscillating tube R400. R200, R600, R800, R1000, R1200, R1400, R1600mm. Optional, stainless steel
Needle hole Φ0.4mm
Included angle of two holes IPX3: 120°; IPX4: 180°
Swing angle IPX3: 120°(±60°) ;
IPX4: 350°(±175°)
Swing speed IPX3: 4 s/time(2×120°) ;
IPX4: 12 s/time(2×350°) ;
Water flow 1-10L/min adjustable
Testing time 0.01S~99hours 59min, can be preset
Rotary plate Diameter: Φ600mm; Rotate speed:1r/min.
Can be paused at four aspects, Load bearing≤50kg, electrical equipment
Pressure gauge 0~0.25MPa
Site requirements Dedicated IP waterproof test room, The ground should be flat with illumination
10A waterproof leakage switch(or socket) used for equipment. With good function of inflow and drainage. Ground installation
Area covered It is set according to the selected oscillating tube

Conform to:
IEC60529
IEC60598-1
IEC 60335-1
IEC60745-1
VDE0630
VDE0632
IEC60034
DIN40050
ISO20653

IP Code of the IPX3 and IPX4

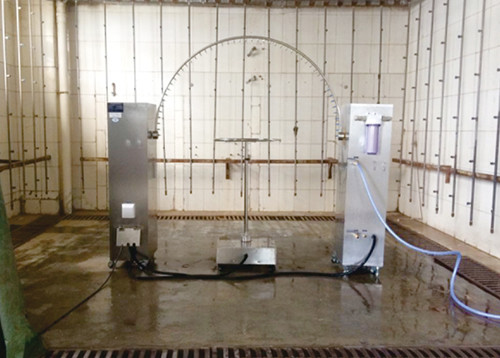

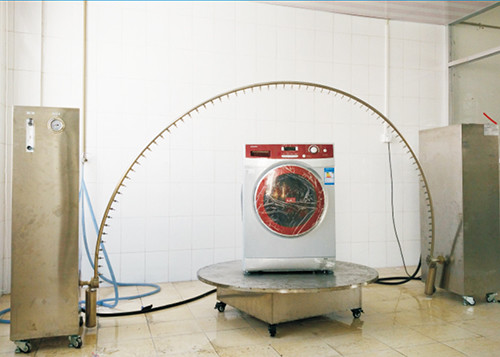

Customer Usage Site:

IEC60529 IEC Test Equipment , Oscillating Tube IPX4 Waterproof TestIEC60529 IEC Test Equipment , Oscillating Tube IPX4 Waterproof TestIEC60529 IEC Test Equipment , Oscillating Tube IPX4 Waterproof Test
