IEC60529 IPX34 Oscillating Tube Test Chamber
IEC60529 IPX34 Oscillating Tube Test Chamber
IEC60529 IPX34 Oscillating Tube Test Chamber
IEC60529 IPX34 Oscillating Tube Test Chamber
IEC60529 IPX34 Oscillating Tube Test Chamber
IEC60529 IPX34 Oscillating Tube Test Chamber
IEC60529 IPX34 Oscillating Tube Test Chamber
IEC60529 IPX34 Oscillating Tube Test Chamber
Specifications
Brand Name :
SHC
Model Number :
SC-IPX34A
Certification :
CNAS, TUV, ITS, CSA, BV, SGS(cost additional)
Place of Origin :
China
MOQ :
1 Unit
Price :
USD 3000-6000 per Unit
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
999 unit per month
Delivery Time :
15 work days
Packaging Details :
carton
Material :
Stainless steel
IP code :
IPX3, IPX4
Temperature :
Room temperature

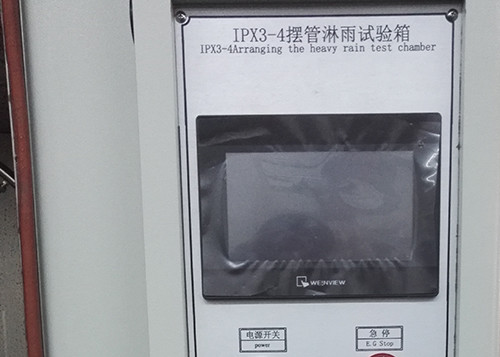

Controller :
Touch screen controller
Standard :
IEC60529
Needle hole :
Φ0.4mm
Swing angle range of the oscillating tube :
45°, 120°,360°
Swing speed :
IPX3 15times/min; IPX4 5times/min
Rain pressure :
80~150Kpa (adjustable)
Oscillating Tube Radius :
300mm
Description

IEC60529 IPX34 Waterproof Oscillating Tube Test Chamber IP Test Device

Application:

It is used for the testing of IPX3 and IPX4

This equipment is suitable for the test of electrical products which are enclosure and sealed in the rain environment whether can ensure the good performance of equipment and components.

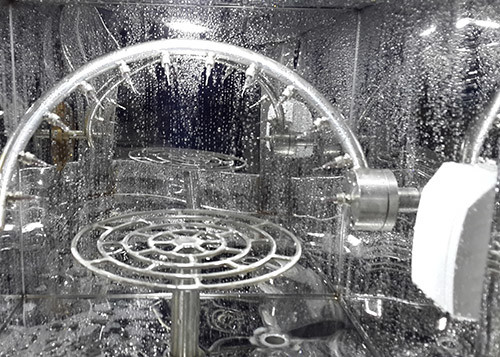

The scientific design of this equipment, so that the equipment can be realistically simulated dripping water, water spraying, splashing water etc.

The application of the comprehensive control system and the frequency conversion technology makes the rotation angle of the test sample rack.

The swing angle of the pendulum rod and the swing frequency of the spray water can be adjusted automatically.

Technical parameters:

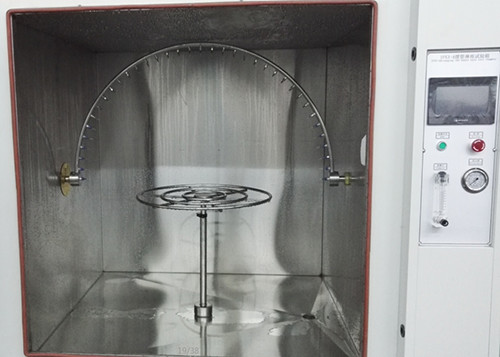

1 Inner box size (mm):800×800×900(L×W×H) (can be customerized)
2 Rotating speed(rpm):1 ~5 adjustable, turntable diameter:300mm(IP 1.2 standard. Turntable can be tilted 15°).The height of the turntable:200mm, it is adjustable.
3 Spray ring radius:(mm): 300.
4 Swing angle range of the oscillating tube:45°, 120°,360°
5 Needle hole(mm):φ0 .4.
6 Distance between holes(mm):50.
7 Water flow of each hole:0.07 L/min +5%.
8 Spray pressure(Kpa):80-150.
9 Pendulum swing: Max.±150°.
10 Swing speed: IP3 15times/min; IP4 5times/min
11 Testing time:1-999,999min(can be set).
12 Rain pressure:80~150Kpa (adjustable).
13 The distance between the test equipment and the test sample:200MM. After the test, the function test can be proceeded after normal temperature recovery of 24 H.
14 All stainless steel or powder coating, visible toughened glass window.
15 Equipped with a modest turntable (used to place the sample) with adjustable speed.
16 Control system: Independent research and development.
17 Power Supply: 220V 50Hz/230V 50Hz

Conform to:
IEC60529
IEC60598-1
IEC 60335-1
IEC60745-1
VDE0630
VDE0632
IEC60034
DIN40050
ISO20653

IP Code of the IPX3 and IPX4

Structural material:

1. High- quality acid -proof stainless steel 304 inner liner.

2. Outer box is made of stainless steel 304.

3. The sample table is equipped with a circular turntable with adjustable speed.

IEC60529 IPX34 Oscillating Tube Test ChamberIEC60529 IPX34 Oscillating Tube Test ChamberIEC60529 IPX34 Oscillating Tube Test Chamber
