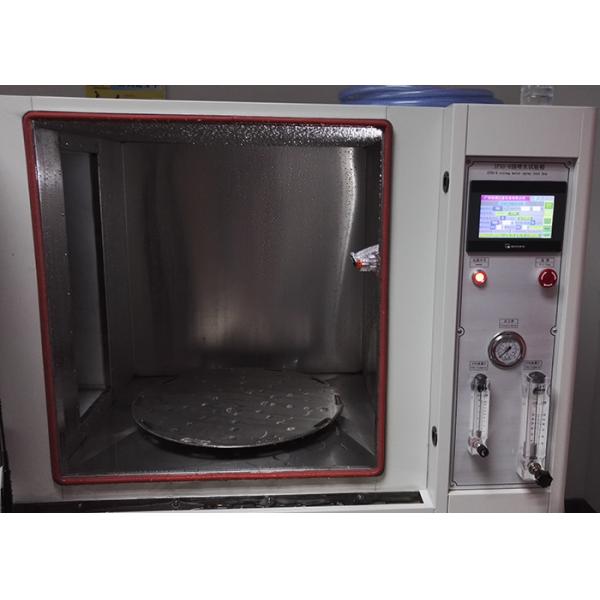

IPX56 Waterproof Spray Test Chamber
IPX56 Waterproof Spray Test Chamber
IPX56 Waterproof Spray Test Chamber
IPX56 Waterproof Spray Test Chamber
IPX56 Waterproof Spray Test Chamber
IPX56 Waterproof Spray Test Chamber
Specifications
Brand Name :
SHC
Model Number :
SC-IPX56C
Certification :
CNAS, TUV, ITS, CSA, BV, SGS(cost additional)
Place of Origin :
China
MOQ :
1 Unit
Price :
USD 3000-8000 per Unit
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
999 unit per month
Delivery Time :
15 work days
Packaging Details :
carton
Material :
Stainless steel
IP code :
IPX5, IPX6
Temperature :
Room temperature
Warranty :
12 months
Standard :
IEC60529
IPX5 nozzle diameter :
Φ6.3mm
IPX6 nozzle diameter :
Φ12.5mm
IPX5 flow :
12.5±0.625(L/min)
IPX6 flow :
100±5(L/min)
load-bearing :
50KG
Description

IPX56 Waterproof Automatical Test Machine IP Spray Test Chamber

Features:

Chamber type, circulating water

The spray nozzles can swing automatically

The height of water spray can be set.

Main Technical Parameters:

Model Internal dimension Outer dimension Power
SC-IPX56C-200L 600×600×600mm 3600×780x1600mm 3.0KW
SC-IPX56C-500L 800×800×800mm 3800×980×1750mm 3.0KW
SC-IPX56C-700L 900×900×900mm 3900×1080×1750mm 3.0KW
SC-IPX56C-1000L 1000×1000×1000m 4000×1180×1850mm 3.0KW
SC-IPX56C-1400L 1200×1200×1000mm 4200×1380×1850mm 3.0KW
IPX5 nozzle diameter Φ6.3mm
IPX6 nozzle diameter Φ12.5mm
IPX5 flow 12.5±0.625(L/min)
IPX6 flow 100±5(L/min)
load d-bearing 50KG
Flow control mode Manual adjustment (rotor flow meter)
Safety protection measures Leakage protection, water shortage protection, short circuit protection

Note: other sizes can be customized according to requirements

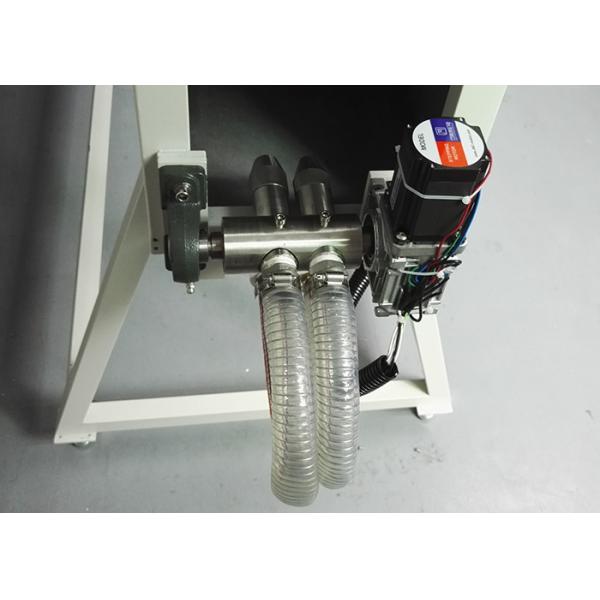

The spray nozzle can swing automatically.

Application:

It is used for the testing of IPX5 and IPX6
The device to shell protection grade (IP code) based mainly for electrical and electronic products, LED products, lamps, electrical cabinets, communications, digital equipment, transportation and other products to simulate outdoor rain weather conditions, and test the performance of the product is waterproof, to determine whether the corresponding level of protection, in order to product’s design, development and test use.

Conform to:
IEC60529
IEC60598-1
IEC 60335-1
IEC60745-1
VDE0630
VDE0632
IEC60034
DIN40050
ISO20653

IP Code of the IPX5 and IPX6

Waterproof Rating:

IPX1

Protected against falling water Equivalent to 3-5mm rainfall per minute for a duration of 10 minutes.
Unit is placed in its normal operating position.

IPX2

Protected against falling water when tilted up to 15 degrees - Same as IPX1 but unit is tested in 4 fixed positions - tilted 15 degrees in each direction from normal operating position.
IPX3

Protected against spraying water - Water spraying up to 60 degrees from vertical at 10 liters/min at a pressure of 80-100kN/m2 for 5 min.

IPX4

Protected against splashing water - Same as IPX3 but water is sprayed at all angles.

IPX5

Protected against water jets - Water projected at all angles through a 6.3mm nozzle at a flow rate of 12.5 liters/min at a pressure of 30kN/m2 for 3 minutes from a distance of 3 meters.
IPX6

Protected against heavy seas - Water projected at all angles through a 12.5mm nozzle at a flow rate of 100 liters/min at a pressure of 100kN/m2 for 3 minutes from a distance of 3 meters.
IPX7

Protected against water immersion - Immersion for 30 minutes at a depth of 1 meter.
IPX8

Protected against water submersion - The equipment is suitable for continual submersion in water under conditions which are identified by the manufacturer.

We are professional IP waterproof Testing Equipment manufacturer.

Details Pictures:

IPX56 Waterproof Spray Test Chamber

IPX56 Waterproof Spray Test Chamber
