Specifications
Brand Name :
SHC
Model Number :
SC-IPX8-7
Certification :
Third part calibration certificate(cost additional)
Place of Origin :
China
MOQ :
1 Unit
Price :
USD 4000-8000 piece
Payment Terms :
T/T, Western Union, MoneyGram, L/C
Supply Ability :
99 units per month
Delivery Time :
in 15 work days
Packaging Details :
Carton
Standard :
IEC 60529, EN 60529
Application :
Water Spray Testing for IPX7 IPX8
Interior material :
SUS#304 stainless steel plate
Power :
Electronic
Testing time :
0-99min
Range of Test depth :
0-30mm
Inner dimension :
Φ600*H1200mm
Wall thickness :
4mm
Range of test pressure :
0-0.55Mpa/0-5bar
Vent pressure of safety valve :
0.55Mpa/5.5bar
Description

EN 60529 IPX8 Continuous Immersion Test Equipment Stainless Steel, rain test equipment

Main Technical Parameters:

Model SC-IPX8-7
Inner dimension Φ600*H1200mm
Outer dimension 600*780*1750mm
Wall thickness 4mm
Range of Test depth 0-30mm
Range of test pressure 0-0.55Mpa/0-5bar
Vent pressure of safety valve 0.55Mpa/5.5bar
Pressure control mode Automatic control by pressure sensor
The way of lifting the cover Cylinder control cover
Test time 0-999min
Power 100W

Feature:

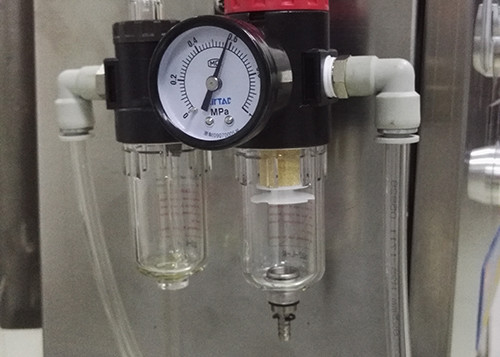

1. Entire tank adopts SUS304# stainless steel high accuracy integrated forming, ensure it will not rust and water-tight after long time use, adjust the test pressure according to the high precision pressure regulating valve. Pressure regulating valve with pressure stabilizing function, it can keep stable test pressure all the time after the pressure has been adjusted.

2.The pot cover is rotated and lifted by the screw thread, it can rotate and move away from the hole after lifting. (when pressure is greater than 50m depth test, must use special flange lock to lock cover)

3.The whole tank surface blasting treatment, smooth and beautiful.

Description:

Assessment of enclosures and sealing element whether can ensure good performance of equipment and components after the water test or during the test.

Confirm to standards:

IEC 60529 IPX7 IPX8;

EN 60529 IPX7 IPX8;

IEC 60884-1;

IEC 60598-1;

IEC 60335-1 and so on.
