Specifications
Brand Name :
SHC
Model Number :
SC-IP1X
Certification :
Third part calibration certificate(cost additional)
Place of Origin :
China
MOQ :
1 Unit
Price :
USD40-500 piece
Payment Terms :
T/T, Western Union, MoneyGram, L/C
Supply Ability :
999 units per month
Delivery Time :
3 work days

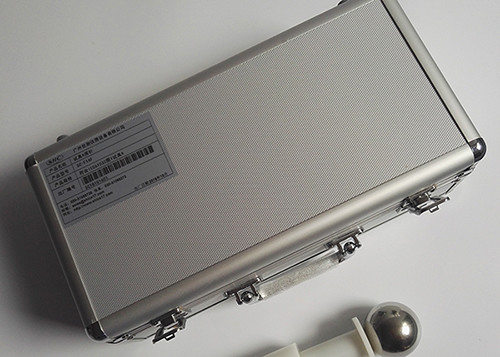

Packaging Details :
tool box
Standard :
IEC 60529, IEC61032
Application :
IP1X test
Interior material :
Nylon
Max force :
50N
Rigid test ball diameter (metal) :
SФ50+0.05
Baffle diameter (nylon) :
Ф45±0.2
Baffle thickness :
4mm
Handle diameter :
Ф10mm
Handle length (nylon) :
100mm
Name :
Test probe A with force
Description

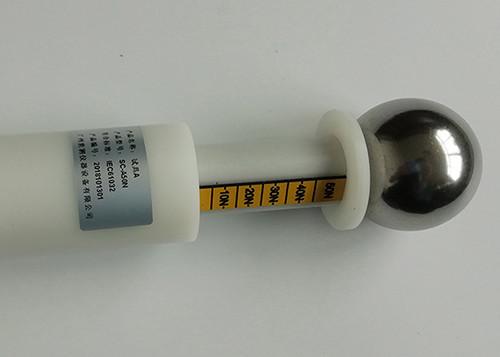

IEC60529 IP Test Equipment IP1X Figure1 Test Probe A With Force​

Test sample:

Easily accessible enclosure live parts or mechanical parts.

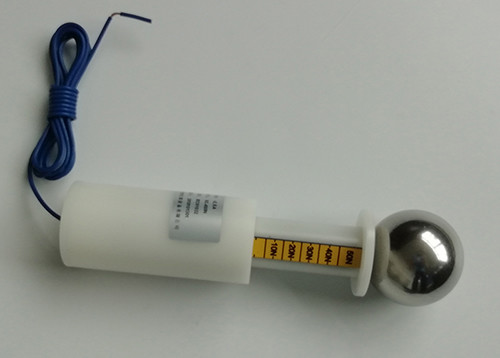

Feature:This test probe can be customized. It can be used for anti-electric shock test when equipped with

amphenol connector. Or used for enclosure protection test when open threaded hole of M6 at the end of

the handle (connected with pull and push dynamometer) .The probe whose model number is with "T" is

with force.

Parameters:

Model SC-F1A SC-F1A-F
Name Test probe A Test probe A with force
Rigid test ball diameter (metal) SФ50+0.05mm SФ50+0.05mm
Baffle diameter (nylon) Ф45±0.2mm Ф45±0.2mm
Baffle thickness 4mm 4mm
Handle diameter Ф10mm Ф10mm
Handle length (nylon) 100mm 100mm
Force ---- With force of 0-50N

Description:

Assessment of enclosures and sealing element whether can ensure good performance of equipment and

components after the water test or during the test.

Confirm to standards:

IEC 60529 IP1X;

EN 60529 IP1X ;

IEC61032 figure1

IEC 60884-1;

IEC 60598-1;

IEC60065-1;

IEC 60335-1 and so on.

This probe is intended to verify protection of persons against access to hazardous parts for an IP1 Code.

Also used to verify protection from access with the back of the hand for an IP suffix A code.

Application:

This probe is intended to verify protection the back of hand of persons against access to hazardous parts.

It is also the necessary probe used to prevent the hazardous parts and solid foreign objects from entering.
