Heat Resistance 20N IEC60884 Ball Pressure Test Apparatus
Heat Resistance 20N IEC60884 Ball Pressure Test Apparatus
Heat Resistance 20N IEC60884 Ball Pressure Test Apparatus
Heat Resistance 20N IEC60884 Ball Pressure Test Apparatus
Heat Resistance 20N IEC60884 Ball Pressure Test Apparatus
Heat Resistance 20N IEC60884 Ball Pressure Test Apparatus
Heat Resistance 20N IEC60884 Ball Pressure Test Apparatus
Heat Resistance 20N IEC60884 Ball Pressure Test Apparatus
Specifications
Brand Name :
SHC
Model Number :
SC-Fig27
Certification :
CNAS
Place of Origin :
China
MOQ :
1 piece
Price :
USD 30-1000 unit
Payment Terms :
T/T, Western Union, MoneyGram, L/C
Supply Ability :
999 unit per month
Delivery Time :
5-8 work days
Packaging Details :
carton
Material :
Stainless Steel
Standards :
IEC60884 Figure 27
Warranty :
12 months
Ball Diameter :
Ø5mm ±0.05mm
Ball Pressure :
20N±0.2N (includes loading device and ball)
Test Stand :
100mm high x 50mm diameter, hole diameter:1.2mm
Ball :
hardened steel
Test Place :
in an oven at an elevated temperature for an hour
Description

Fig37 20N Heat Resistance Test Ball Pressure Test Apparatus IEC60884

Product details:

The Ball Pressure Tester conforms to many standard requirements like IEC60884-1, IEC60950 and so on.

It is used for testing the heat resistance of the electrical enclosure and external parts which are made up with the insulating materials.

It is applicable to electronic equipment and its subassemblies and components.

It is also used for solid electrical insulating materials except ceramics.

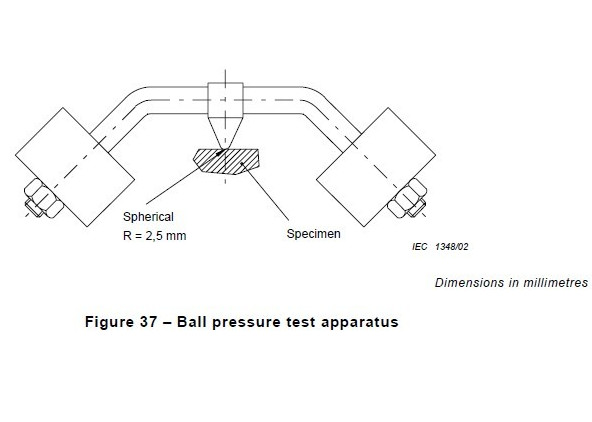

In this test, a conditioned specimen is placed on a preheated support and subjected to a force of 20N applied through a 5mm steel ball.

The test stand, specimen and loading device are then kept in an oven at an elevated temperature for an hour.

After the hour, the loading device is removed from the sample, the sample is cooled and any indentation is measured.

It is important to assure that the test stand has reached a stable elevated temperature as required by the test.

Technical parameters:

Ball Diameter Ø5mm ±0.05mm
Ball Pressure 20N±0.2N (includes loading device and ball)
Test Stand 100mm high x 50mm diameter, hole diameter:1.2mm
Material Stainless steel
Ball hardened steel

Notes: Supporting the use of the Ball pressure test apparatus, we also Need extremely hot oven additional.

Conforms to standard:

IEC60695-10-2(2003),

IEC 60884-1figure 37,

IEC60320-1,

IEC60598-1 :1992 ,

IEC60950-1 : 2001 ,

IEC60335-1 : 1991 ,

IEC1008-1:1990 ,

IEC1009-1:1991 ,

IEC730-1:1993 ,

IEC61058-1:1996 ,

IEC60920:1990 ,

IEC335-2-40:1992 ,

IEC60238:1996 ,

IEC60928:1991 ,

IEC61184:1997 ,

IEC60968:1998,

IEC60898:1995

Heat Resistance 20N IEC60884 Ball Pressure Test Apparatus

Heat Resistance 20N IEC60884 Ball Pressure Test Apparatus
